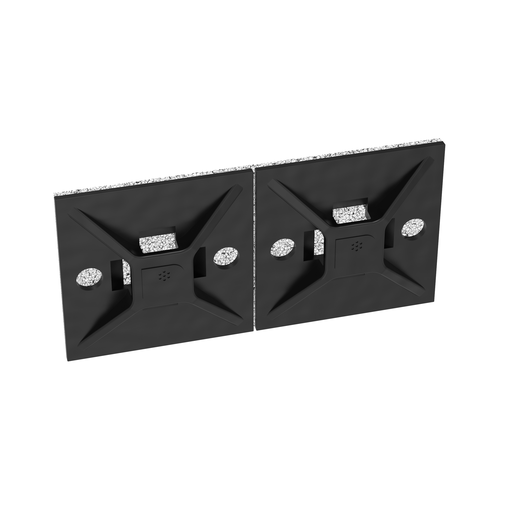

ABM112-AT-D0 Cable Tie Mount, Black, UV PA6.6, Acrylic Adh., 1.12x1.12", PK500
MFG #ABM112-AT-D0
$0.97 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
Panduit’s ABM112-AT-D0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1.12" x 1.12" (28.6mm x 28.6mm), supplied in strips of 2, are black in color and come in packages of 500.
HESCO Part Number
PANABM112ATD0
UPC
074983281145
Manufacturer Part Number
ABM112-AT-D0
Manufacturer
Panduit
ABM112-AT-D0 Cable Tie Mount, Black, UV PA6.6, Acrylic Adh., 1.12x1.12", PK500
MFG #ABM112-AT-D0
Product Description:
Panduit’s ABM112-AT-D0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1.12" x 1.12" (28.6mm x 28.6mm), supplied in strips of 2, are black in color and come in packages of 500.
HESCO Part Number
PANABM112ATD0
UPC
074983281145
Manufacturer Part Number
ABM112-AT-D0
Manufacturer
Panduit
$0.97 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE Compliant, UL Recognized, RoHS Compliant
Packaging Details
| UPC | : | 07498328114 |
| GTIN Package | : | 00074983281145 |
| Standard Package Volume Ft3 | : | 0.1768 |
| Standard Package Weight Pounds | : | 1.7500 |
| Std Package Height In | : | 3.7 |
| Std Package Height MM | : | 93.98 |
| Std Package Length In | : | 12.7 |
| Std Package Length MM | : | 322.58 |
| Std Package Width In | : | 9.8 |
| Std Package Width MM | : | 248.92 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 500 |
| GTIN Carton | : | 50074983281140 |
| Standard Carton Volume Ft3 | : | 1.7679 |
| Standard Carton Weight Pounds | : | 17.5000 |
| Std Carton Height In | : | 12.95 |
| Std Carton Height MM | : | 328.93 |
| Std Carton Length In | : | 19.55 |
| Std Carton Length MM | : | 496.57 |
| Std Carton Width In | : | 12.65 |
| Std Carton Width MM | : | 321.31 |
| Std Ctn Qty | : | 5000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983281145 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 120,000 |
| Pallet Volume | : | 42.430389 |
| Pallet Weight | : | 420.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (In.) | : | 1.13 |
| Environment | : | Indoor/Outdoor |
| Overall Width (In.) | : | 1.12 |
| Static Load Capacity (lb) | : | 0.63 |
| Static Load Capacity (kg) | : | 0.286 |
| Application | : | Used with Miniature, Intermediate, and Standard Cables Ties |
| Mount Method | : | Adhesive Tape |
| Minimum Operating Temperature (°C) | : | -29 |
| Material | : | Nylon 6.6 |
| Resistance Properties | : | UV-Resistant, Weather-Resistant |
| Overall Width (mm) | : | 50.3 |
| Overall Length (mm) | : | 28.5 |
| Mounting Hole Thread Size | : | #6 |
| Maximum Operating Temperature (°C) | : | 82 |
| Maximum Compatible Panel Thickness (In.) | : | 0.04 |
| Overall Height (In.) | : | 0.2 |
| Maximum Compatible Panel Thickness (mm) | : | 1 |
| Color | : | Black |
| Maximum Operating Temperature (°F) | : | 180 |
| Overall Height (mm) | : | 5.1 |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Product Type | : | Cable Tie Mount |
| Minimum Operating Temperature (°F) | : | -20 |
| Material Description | : | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
