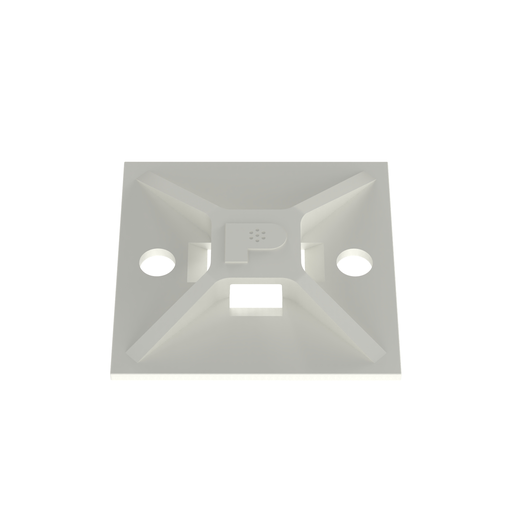

ABM112-S6-D Cable Tie Mount, White, PA 6.6, Screw, 1.12x1.12", PK500
MFG #ABM112-S6-D
$0.77 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
Panduit’s ABM112-S6-D 4-Way Cable Tie Mounts allow cable tie entry from all four sides. They can easily be applied with user supplied adhesive or size #6 (M3) screws. These mounts are for indoor use and can be used with miniature, intermediate and standard cable ties. They are 1.12" x 1.12" (28.5mm x 28.5mm), are white in color and come in packages of 500
HESCO Part Number
PANABM112S6D
UPC
074983642762
Manufacturer Part Number
ABM112-S6-D
Manufacturer
Panduit
ABM112-S6-D Cable Tie Mount, White, PA 6.6, Screw, 1.12x1.12", PK500
MFG #ABM112-S6-D
Product Description:
Panduit’s ABM112-S6-D 4-Way Cable Tie Mounts allow cable tie entry from all four sides. They can easily be applied with user supplied adhesive or size #6 (M3) screws. These mounts are for indoor use and can be used with miniature, intermediate and standard cable ties. They are 1.12" x 1.12" (28.5mm x 28.5mm), are white in color and come in packages of 500
HESCO Part Number
PANABM112S6D
UPC
074983642762
Manufacturer Part Number
ABM112-S6-D
Manufacturer
Panduit
$0.77 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: CE Compliant, UL Recognized, RoHS Compliant
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Operating Temperature (°F) | : | -76 |
| Color | : | White |
| Environment | : | Indoor |
| Overall Width (In.) | : | 1.12 |
| Overall Height (In.) | : | 0.2 |
| Mounting Hole Thread Size | : | #6 |
| Product Type | : | Cable Tie Mount |
| Minimum Operating Temperature (°C) | : | -60 |
| Overall Length (mm) | : | 28.5 |
| Maximum Compatible Panel Thickness (In.) | : | 0.04 |
| Overall Height (mm) | : | 5.1 |
| Maximum Compatible Panel Thickness (mm) | : | 1 |
| Overall Width (mm) | : | 50.3 |
| Static Load Capacity (kg) | : | 0.3 |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Material | : | Nylon 6.6 |
| Application | : | Used with Miniature, Intermediate, and Standard Cables Ties |
| Maximum Operating Temperature (°F) | : | 185 |
| Overall Length (In.) | : | 1.13 |
| Maximum Operating Temperature (°C) | : | 85 |
| Mount Method | : | Screw-On |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498364276 |
| GTIN Package | : | 00074983642762 |
| Standard Package Volume Ft3 | : | 0.1777 |
| Standard Package Weight Pounds | : | 1.4450 |
| Std Package Height In | : | 1.5 |
| Std Package Height MM | : | 38.1 |
| Std Package Length In | : | 16 |
| Std Package Length MM | : | 406.4 |
| Std Package Width In | : | 10 |
| Std Package Width MM | : | 254 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 500 |
| GTIN Carton | : | 50074983642767 |
| Standard Carton Volume Ft3 | : | 1.7767 |
| Standard Carton Weight Pounds | : | 14.4500 |
| Std Carton Height In | : | 12.8 |
| Std Carton Height MM | : | 325.12 |
| Std Carton Length In | : | 19.5 |
| Std Carton Length MM | : | 495.3 |
| Std Carton Width In | : | 12.3 |
| Std Carton Width MM | : | 312.42 |
| Std Ctn Qty | : | 5000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983642762 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 120,000 |
| Pallet Volume | : | 42.640000 |
| Pallet Weight | : | 346.8000 |
| RoHS Compliant | : | Compliant |
