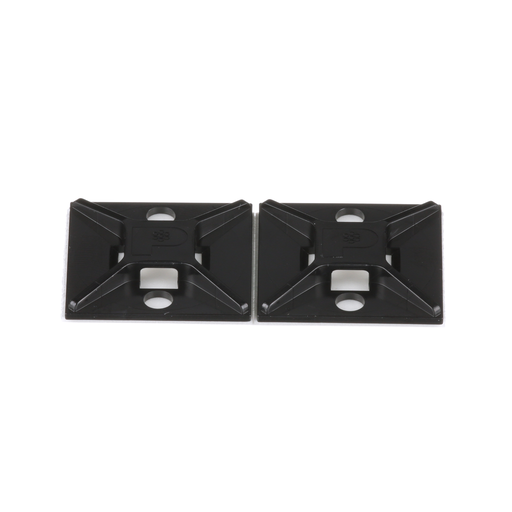

ABM2S-A-C0 Cable Tie Mount, Black, ABS, Rubber Adh., 1x1", PK100
MFG #ABM2S-A-C0
$1.68 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
Panduit’s ABM2S-A-C0 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant ABS plastic. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for indoor environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 100.
HESCO Part Number
PANABM2SAC0
UPC
074983838998
Manufacturer Part Number
ABM2S-A-C0
Manufacturer
Panduit
ABM2S-A-C0 Cable Tie Mount, Black, ABS, Rubber Adh., 1x1", PK100
MFG #ABM2S-A-C0
Product Description:
Panduit’s ABM2S-A-C0 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant ABS plastic. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for indoor environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 100.
HESCO Part Number
PANABM2SAC0
UPC
074983838998
Manufacturer Part Number
ABM2S-A-C0
Manufacturer
Panduit
$1.68 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: CE Compliant, UL Recognized: E136577, RoHS Compliant
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Operating Temperature (°F) | : | 120 |
| Color | : | Black |
| Static Load Capacity (kg) | : | 0.227 |
| Overall Width (mm) | : | 50.3 |
| Overall Height (In.) | : | 0.2 |
| Application | : | Used with Miniature, Intermediate, and Standard Cables Ties |
| Minimum Operating Temperature (°F) | : | -20 |
| Maximum Compatible Panel Thickness (In.) | : | 0.04 |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Minimum Operating Temperature (°C) | : | -29 |
| Product Type | : | Cable Tie Mount |
| Overall Width (In.) | : | 1 |
| Maximum Operating Temperature (°C) | : | 49 |
| Overall Height (mm) | : | 5.1 |
| Environment | : | Indoor |
| Overall Length (mm) | : | 25.4 |
| Overall Length (In.) | : | 1 |
| Material | : | ABS |
| Mount Method | : | Adhesive Tape |
| Static Load Capacity (lb) | : | 0.5 |
| Maximum Compatible Panel Thickness (mm) | : | 1 |
| Material Description | : | ABS |
Packaging Details | ||
| UPC | : | 07498383899 |
| GTIN Package | : | 00074983838998 |
| Standard Package Volume Ft3 | : | 0.0539 |
| Standard Package Weight Pounds | : | 0.3700 |
| Std Package Height In | : | 1.75 |
| Std Package Height MM | : | 44.45 |
| Std Package Length In | : | 7.55 |
| Std Package Length MM | : | 191.77 |
| Std Package Width In | : | 6.05 |
| Std Package Width MM | : | 153.67 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983838993 |
| Standard Carton Volume Ft3 | : | 0.2695 |
| Standard Carton Weight Pounds | : | 1.8500 |
| Std Carton Height In | : | 4.55 |
| Std Carton Height MM | : | 115.57 |
| Std Carton Length In | : | 10.3 |
| Std Carton Length MM | : | 261.62 |
| Std Carton Width In | : | 10.25 |
| Std Carton Width MM | : | 260.35 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983838998 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 80,000 |
| Pallet Volume | : | 43.121272 |
| Pallet Weight | : | 296.0000 |
| RoHS Compliant | : | Compliant |
