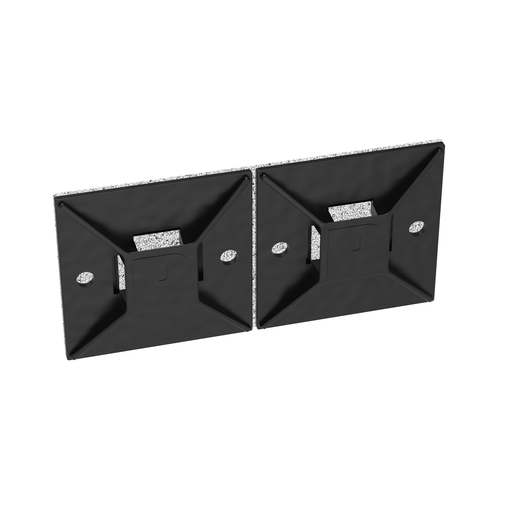

ABM3H-A-L20 Cable Tie Mount, Black, PA 6.6, Rubber Adh., 1.5x1.5", PK50
MFG #ABM3H-A-L20
$2.71 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
Panduit’s ABM3H-A-L20 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6 and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. These mounts are designed for indoor environments. They are 1.5" x 1.5" (38.1mm x 38.1mm), supplied in strips of 2, are black in color and come in packages of 50.
HESCO Part Number
PANABM3HAL20
UPC
074983746095
Manufacturer Part Number
ABM3H-A-L20
Manufacturer
Panduit
ABM3H-A-L20 Cable Tie Mount, Black, PA 6.6, Rubber Adh., 1.5x1.5", PK50
MFG #ABM3H-A-L20
Product Description:
Panduit’s ABM3H-A-L20 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6 and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. These mounts are designed for indoor environments. They are 1.5" x 1.5" (38.1mm x 38.1mm), supplied in strips of 2, are black in color and come in packages of 50.
HESCO Part Number
PANABM3HAL20
UPC
074983746095
Manufacturer Part Number
ABM3H-A-L20
Manufacturer
Panduit
$2.71 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE Compliant, UL Recognized: E136577, RoHS Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Compatible Panel Thickness (In.) | : | 0.04 |
| Overall Height (mm) | : | 7.4 |
| Overall Width (mm) | : | 50.3 |
| Overall Height (In.) | : | 0.3 |
| Maximum Operating Temperature (°C) | : | 49 |
| Overall Width (In.) | : | 1.5 |
| For Use With | : | Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties |
| Minimum Operating Temperature (°C) | : | -29 |
| Minimum Operating Temperature (°F) | : | -20 |
| Material | : | Nylon 6.6 |
| Color | : | Black |
| Static Load Capacity (lb) | : | 1.13 |
| Overall Length (In.) | : | 1.5 |
| Overall Length (mm) | : | 38.1 |
| Product Type | : | Cable Tie Mount |
| Mounting Hole Thread Size | : | #6 |
| Environment | : | Indoor |
| Static Load Capacity (kg) | : | 0.513 |
| Maximum Operating Temperature (°F) | : | 120 |
| Maximum Compatible Panel Thickness (mm) | : | 1 |
| Mount Method | : | Adhesive Tape |
| Application | : | Used with Miniature, Intermediate, and Standard Cables Ties |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498374609 |
| GTIN Package | : | 00074983746095 |
| Standard Package Volume Ft3 | : | 0.0334 |
| Standard Package Weight Pounds | : | 0.3650 |
| Std Package Height In | : | 1.95 |
| Std Package Height MM | : | 49.53 |
| Std Package Length In | : | 10.05 |
| Std Package Length MM | : | 255.27 |
| Std Package Width In | : | 5.75 |
| Std Package Width MM | : | 146.05 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983746090 |
| Standard Carton Volume Ft3 | : | 0.3338 |
| Standard Carton Weight Pounds | : | 3.6500 |
| Std Carton Height In | : | 7.05 |
| Std Carton Height MM | : | 179.07 |
| Std Carton Length In | : | 11 |
| Std Carton Length MM | : | 279.4 |
| Std Carton Width In | : | 9.2 |
| Std Carton Width MM | : | 233.68 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983746095 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 32.048394 |
| Pallet Weight | : | 350.4000 |
| RoHS Compliant | : | Compliant |
Videos 1
- No
- Standards Met: CE Compliant, UL Recognized: E136577, RoHS Compliant
Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Maximum Compatible Panel Thickness (In.) : 0.04 Overall Height (mm) : 7.4 Overall Width (mm) : 50.3 Overall Height (In.) : 0.3 Maximum Operating Temperature (°C) : 49 Overall Width (In.) : 1.5 For Use With : Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties Minimum Operating Temperature (°C) : -29 Minimum Operating Temperature (°F) : -20 Material : Nylon 6.6 Color : Black Static Load Capacity (lb) : 1.13 Overall Length (In.) : 1.5 Overall Length (mm) : 38.1 Product Type : Cable Tie Mount Mounting Hole Thread Size : #6 Environment : Indoor Static Load Capacity (kg) : 0.513 Maximum Operating Temperature (°F) : 120 Maximum Compatible Panel Thickness (mm) : 1 Mount Method : Adhesive Tape Application : Used with Miniature, Intermediate, and Standard Cables Ties Material Description : Nylon 6.6 Packaging Details
UPC : 07498374609 GTIN Package : 00074983746095 Standard Package Volume Ft3 : 0.0334 Standard Package Weight Pounds : 0.3650 Std Package Height In : 1.95 Std Package Height MM : 49.53 Std Package Length In : 10.05 Std Package Length MM : 255.27 Std Package Width In : 5.75 Std Package Width MM : 146.05 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 GTIN Carton : 50074983746090 Standard Carton Volume Ft3 : 0.3338 Standard Carton Weight Pounds : 3.6500 Std Carton Height In : 7.05 Std Carton Height MM : 179.07 Std Carton Length In : 11 Std Carton Length MM : 279.4 Std Carton Width In : 9.2 Std Carton Width MM : 233.68 Std Ctn Qty : 500 Min. Order UOM : Piece EAN : 00074983746095 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 500.0000 Pallet Quantity : 48,000 Pallet Volume : 32.048394 Pallet Weight : 350.4000 RoHS Compliant : Compliant - Selection Guides
Selection Guides 1
Application GuidesApplication Guides 1 - Videos 1
