ABM3H-AT-L0 Cable Tie Mount
MFG #ABM3H-AT-L0
$2.70 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:

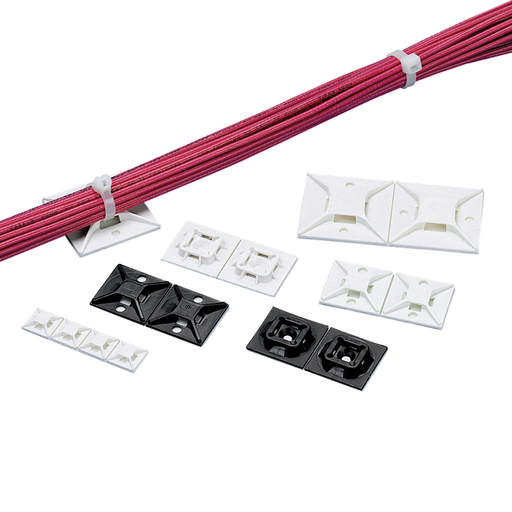

The 4-way adhesive backed cable tie mount in black is mounted with acrylic adhesive tape. It is 1.5" long x 1.5" wide (38.1 x 38.1 mm) and made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. It is designed for outdoor, high-temperature environments and comes in packages of 50.
HESCO Part Number
PANABM3HATL0
UPC
074983325443
Manufacturer Part Number
ABM3H-AT-L0
Manufacturer
Panduit
ABM3H-AT-L0 Cable Tie Mount
MFG #ABM3H-AT-L0
Product Description:
The 4-way adhesive backed cable tie mount in black is mounted with acrylic adhesive tape. It is 1.5" long x 1.5" wide (38.1 x 38.1 mm) and made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. It is designed for outdoor, high-temperature environments and comes in packages of 50.
HESCO Part Number
PANABM3HATL0
UPC
074983325443
Manufacturer Part Number
ABM3H-AT-L0
Manufacturer
Panduit
$2.70 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Recognized ZODZ2.E136577 and Canadian ZODZ8.E136577; RoHS Compliant
- No
Packaging Details
| UPC | : | 07498332544 |
| GTIN Package | : | 00074983325443 |
| Standard Package Volume Ft3 | : | 0.0334 |
| Standard Package Weight Pounds | : | 0.3400 |
| Std Package Height In | : | 1.7 |
| Std Package Height MM | : | 43.18 |
| Std Package Length In | : | 7.9 |
| Std Package Length MM | : | 200.66 |
| Std Package Width In | : | 5.7 |
| Std Package Width MM | : | 144.78 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983325448 |
| Standard Carton Volume Ft3 | : | 0.3338 |
| Standard Carton Weight Pounds | : | 3.4000 |
| Std Carton Height In | : | 6.25 |
| Std Carton Height MM | : | 158.75 |
| Std Carton Length In | : | 10.62 |
| Std Carton Length MM | : | 269.748 |
| Std Carton Width In | : | 8.68 |
| Std Carton Width MM | : | 220.472 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983325443 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 32.048394 |
| Pallet Weight | : | 326.4000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Static Load Capacity (kg) | : | 0.513 |
| Overall Length (mm) | : | 38.1 |
| Maximum Compatible Panel Thickness (mm) | : | 1 |
| Overall Width (mm) | : | 38.1 |
| Overall Height (mm) | : | 5.4 |
| Color | : | Black |
| Minimum Operating Temperature (°F) | : | -20 |
| Maximum Compatible Panel Thickness (In.) | : | 0.04 |
| Product Type | : | Cable Tie Mount |
| Static Load Capacity (lb) | : | 1.13 |
| Overall Length (In.) | : | 1.5 |
| Overall Height (In.) | : | 0.21 |
| For Use With | : | Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties |
| Mount Method | : | Adhesive Tape |
| Maximum Operating Temperature (°C) | : | 82 |
| Application | : | Used with Miniature, Intermediate, and Standard Cables Ties |
| Maximum Operating Temperature (°F) | : | 180 |
| Overall Width (In.) | : | 1.5 |
| Environment | : | Indoor/Outdoor |
| Material | : | Nylon 6.6 |
| Resistance Properties | : | UV-Resistant, Weather-Resistant |
| Minimum Operating Temperature (°C) | : | -29 |
| Material Description | : | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
