ABMM-AT-D0 Cable Tie Mount, Black, UV ABS, Acrylic Adh., 0.75x0.75", PK500
MFG #ABMM-AT-D0
$0.80 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

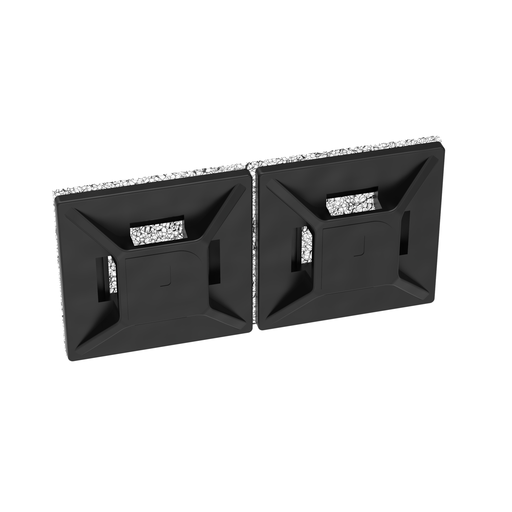

Panduit’s ABMM-AT-D0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant ABS plastic. These mounts can be used with miniature and intermediate cable ties and are designed for outdoor, high-temperature environments. They are 0.75" x 0.75" (19.1mm x 19.1mm), supplied in strips of 2, are black in color and come in packages of 500.
HESCO Part Number
PANABMMATD0
UPC
074983584932
Manufacturer Part Number
ABMM-AT-D0
Manufacturer
Panduit
ABMM-AT-D0 Cable Tie Mount, Black, UV ABS, Acrylic Adh., 0.75x0.75", PK500
MFG #ABMM-AT-D0
Product Description:
Panduit’s ABMM-AT-D0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant ABS plastic. These mounts can be used with miniature and intermediate cable ties and are designed for outdoor, high-temperature environments. They are 0.75" x 0.75" (19.1mm x 19.1mm), supplied in strips of 2, are black in color and come in packages of 500.
HESCO Part Number
PANABMMATD0
UPC
074983584932
Manufacturer Part Number
ABMM-AT-D0
Manufacturer
Panduit
$0.80 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: CE Compliant, UL Recognized: E136577, RoHS Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Height (In.) | : | 0.18 |
| Minimum Operating Temperature (°F) | : | -20 |
| Overall Length (mm) | : | 19.1 |
| Environment | : | Indoor/Outdoor |
| Overall Width (mm) | : | 19.1 |
| Static Load Capacity (lb) | : | 0.3 |
| Mount Method | : | Adhesive Tape |
| Maximum Operating Temperature (°C) | : | 70 |
| Maximum Compatible Panel Thickness (mm) | : | 1 |
| Static Load Capacity (kg) | : | 0.136 |
| Minimum Operating Temperature (°C) | : | -29 |
| Application | : | Cable Tie Entry from All Four Sides, Used with Miniature, and Intermediate Cables Ties |
| Overall Height (mm) | : | 4.6 |
| Overall Width (In.) | : | 0.75 |
| Maximum Compatible Panel Thickness (In.) | : | 0.04 |
| Product Type | : | Cable Tie Mount |
| Color | : | Black |
| Overall Length (In.) | : | 0.75 |
| Material | : | ABS |
| For Use With | : | Miniature, Intermediate Cross-Section Ties |
| Resistance Properties | : | UV-Resistant, Weather-Resistant |
| Maximum Operating Temperature (°F) | : | 158 |
| Material Description | : | ABS (UV-Resistant, Weather-Resistant) |
Packaging Details | ||
| UPC | : | 07498358493 |
| GTIN Package | : | 00074983584932 |
| Standard Package Volume Ft3 | : | 0.0528 |
| Standard Package Weight Pounds | : | 0.7000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 9 |
| Std Package Length MM | : | 228.6 |
| Std Package Width In | : | 7.3 |
| Std Package Width MM | : | 185.42 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 500 |
| GTIN Carton | : | 50074983584937 |
| Standard Carton Volume Ft3 | : | 0.5282 |
| Standard Carton Weight Pounds | : | 7.0000 |
| Std Carton Height In | : | 9 |
| Std Carton Height MM | : | 228.6 |
| Std Carton Length In | : | 11.05 |
| Std Carton Length MM | : | 280.67 |
| Std Carton Width In | : | 9.1 |
| Std Carton Width MM | : | 231.14 |
| Std Ctn Qty | : | 5000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983584932 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 400,000 |
| Pallet Volume | : | 42.256000 |
| Pallet Weight | : | 560.0000 |
| RoHS Compliant | : | Compliant |
