Panduit
Tak-Ty® Hook and Loop Cable Tie Mount
MFG #ABMT-A-C
$2.52 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:

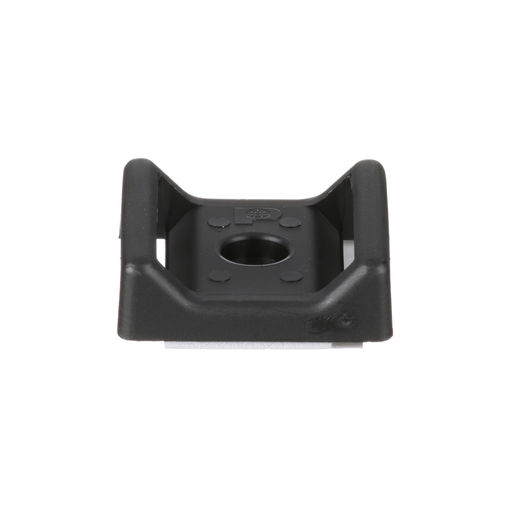

The Tak-Ty® Hook and Loop Cable Tie Mount is mounted with a rubber adhesive. The cable tie mount is made of nylon 6.6 and increases mechanical strength, heat and wear resistance, and stiffness. It is used with HLT/HLS Tak-Ty® Hook and Loop Cable Ties. The cable tie mount is 1.12 inches L x 1.12 inches W (28.5mm x 28.5mm). It comes in packages of 100.
HESCO Part Number
PANABMTAC
UPC
074983859993
Manufacturer Part Number
ABMT-A-C
Manufacturer
Panduit
Panduit
Tak-Ty® Hook and Loop Cable Tie Mount
MFG #ABMT-A-C
Product Description:
The Tak-Ty® Hook and Loop Cable Tie Mount is mounted with a rubber adhesive. The cable tie mount is made of nylon 6.6 and increases mechanical strength, heat and wear resistance, and stiffness. It is used with HLT/HLS Tak-Ty® Hook and Loop Cable Ties. The cable tie mount is 1.12 inches L x 1.12 inches W (28.5mm x 28.5mm). It comes in packages of 100.
HESCO Part Number
PANABMTAC
UPC
074983859993
Manufacturer Part Number
ABMT-A-C
Manufacturer
Panduit
$2.52 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | DEFAULT |
| Material | : | Nylon 6.6 |
| Overall Width (In.) | : | 1.12 |
| Overall Length (mm) | : | 28.4 |
| Minimum Operating Temperature (°F) | : | -20.2 |
| Maximum Compatible Panel Thickness (mm) | : | 1 |
| Mount Method | : | Adhesive Tape |
| Minimum Operating Temperature (°C) | : | -29 |
| Sub Brand | : | Tak-Ty® |
| Application | : | Use With Hook and Loop Cable Ties |
| Static Load Capacity (lb) | : | 0.38 |
| Overall Width (mm) | : | 28.5 |
| Overall Height (In.) | : | 0.34 |
| Overall Height (mm) | : | 8.6 |
| Product Type | : | Cable Tie Mount |
| Resistance Properties | : | Heat-Resistant |
| Mounting Hole Thread Size | : | #6 |
| Maximum Operating Temperature (°C) | : | 49 |
| Environment | : | Indoor |
| Color | : | Natural |
| Static Load Capacity (kg) | : | 0.2 |
| Overall Length (In.) | : | 1.13 |
| Maximum Operating Temperature (°F) | : | 120.2 |
| Maximum Compatible Panel Thickness (In.) | : | 0.04 |
| Material Description | : | Nylon 6.6 (Heat-Resistant) |
Packaging Details | ||
| UPC | : | 07498385999 |
| GTIN Package | : | 00074983859993 |
| Standard Package Volume Ft3 | : | 0.0705 |
| Standard Package Weight Pounds | : | 0.7000 |
| Std Package Height In | : | 2.3 |
| Std Package Height MM | : | 58.42 |
| Std Package Length In | : | 8.95 |
| Std Package Length MM | : | 227.33 |
| Std Package Width In | : | 6.35 |
| Std Package Width MM | : | 161.29 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983859998 |
| Standard Carton Volume Ft3 | : | 0.7051 |
| Standard Carton Weight Pounds | : | 7.0000 |
| Std Carton Height In | : | 9.7 |
| Std Carton Height MM | : | 246.38 |
| Std Carton Length In | : | 14.35 |
| Std Carton Length MM | : | 364.49 |
| Std Carton Width In | : | 9.25 |
| Std Carton Width MM | : | 234.95 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983859993 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 60,000 |
| Pallet Volume | : | 42.304688 |
| Pallet Weight | : | 420.0000 |
| RoHS Compliant | : | Compliant |
Videos 1
- Standards Met: RoHS Compliant
- No
Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : DEFAULT Material : Nylon 6.6 Overall Width (In.) : 1.12 Overall Length (mm) : 28.4 Minimum Operating Temperature (°F) : -20.2 Maximum Compatible Panel Thickness (mm) : 1 Mount Method : Adhesive Tape Minimum Operating Temperature (°C) : -29 Sub Brand : Tak-Ty® Application : Use With Hook and Loop Cable Ties Static Load Capacity (lb) : 0.38 Overall Width (mm) : 28.5 Overall Height (In.) : 0.34 Overall Height (mm) : 8.6 Product Type : Cable Tie Mount Resistance Properties : Heat-Resistant Mounting Hole Thread Size : #6 Maximum Operating Temperature (°C) : 49 Environment : Indoor Color : Natural Static Load Capacity (kg) : 0.2 Overall Length (In.) : 1.13 Maximum Operating Temperature (°F) : 120.2 Maximum Compatible Panel Thickness (In.) : 0.04 Material Description : Nylon 6.6 (Heat-Resistant) Packaging Details
UPC : 07498385999 GTIN Package : 00074983859993 Standard Package Volume Ft3 : 0.0705 Standard Package Weight Pounds : 0.7000 Std Package Height In : 2.3 Std Package Height MM : 58.42 Std Package Length In : 8.95 Std Package Length MM : 227.33 Std Package Width In : 6.35 Std Package Width MM : 161.29 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983859998 Standard Carton Volume Ft3 : 0.7051 Standard Carton Weight Pounds : 7.0000 Std Carton Height In : 9.7 Std Carton Height MM : 246.38 Std Carton Length In : 14.35 Std Carton Length MM : 364.49 Std Carton Width In : 9.25 Std Carton Width MM : 234.95 Std Ctn Qty : 1000 Min. Order UOM : Piece EAN : 00074983859993 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 500.0000 Pallet Quantity : 60,000 Pallet Volume : 42.304688 Pallet Weight : 420.0000 RoHS Compliant : Compliant - Part Drawings
