CblTieMnt,#6Screw,1.12",FR,NAT,PK25
MFG #ABMTS6Q69
$3.63 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
Product Description:

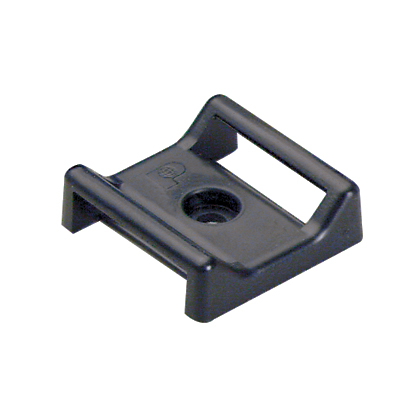

The screw applied mount for Tak-Ty hook and loop cable ties in natural uses #6 (M3) screw. It is 1.12" long x 1.12" wide (28.5 x 28.5 mm) and made of flame-retardant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with HLT/HLS Tak-Ty hook and loop cable ties, is designed for indoor environments, and comes in packages of 25.
HESCO Part Number
PANABMTS6Q69
UPC
074983859900
Manufacturer Part Number
ABMTS6Q69
Manufacturer
Panduit
CblTieMnt,#6Screw,1.12",FR,NAT,PK25
MFG #ABMTS6Q69
Product Description:
The screw applied mount for Tak-Ty hook and loop cable ties in natural uses #6 (M3) screw. It is 1.12" long x 1.12" wide (28.5 x 28.5 mm) and made of flame-retardant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with HLT/HLS Tak-Ty hook and loop cable ties, is designed for indoor environments, and comes in packages of 25.
HESCO Part Number
PANABMTS6Q69
UPC
074983859900
Manufacturer Part Number
ABMTS6Q69
Manufacturer
Panduit
$3.63 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: RoHS Compliant
Packaging Details
| UPC | : | 07498385990 |
| GTIN Package | : | 00074983859900 |
| Standard Package Volume Ft3 | : | 0.0133 |
| Standard Package Weight Pounds | : | 0.2350 |
| Std Package Height In | : | 1.5 |
| Std Package Height MM | : | 38.1 |
| Std Package Length In | : | 8 |
| Std Package Length MM | : | 203.2 |
| Std Package Width In | : | 6 |
| Std Package Width MM | : | 152.4 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 25 |
| GTIN Carton | : | 50074983859905 |
| Standard Carton Volume Ft3 | : | 0.1329 |
| Standard Carton Weight Pounds | : | 2.3500 |
| Std Carton Height In | : | 3.875 |
| Std Carton Height MM | : | 98.425 |
| Std Carton Length In | : | 9.875 |
| Std Carton Length MM | : | 250.825 |
| Std Carton Width In | : | 6 |
| Std Carton Width MM | : | 152.4 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983859900 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 25.0000 |
| Pallet Quantity | : | 79,750 |
| Pallet Volume | : | 42.384494 |
| Pallet Weight | : | 749.6500 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | DEFAULT |
| Maximum Compatible Panel Thickness (In.) | : | 0.04 |
| Maximum Operating Temperature (°C) | : | 100 |
| Overall Length (In.) | : | 1.13 |
| Flammability Rating | : | UL94V-0 |
| Maximum Compatible Panel Thickness (mm) | : | 1 |
| Sub Brand | : | Tak-Ty® |
| For Use With | : | Hook and Loop Cable Ties |
| Color | : | Natural |
| Overall Length (mm) | : | 28.5 |
| Overall Height (In.) | : | 0.34 |
| Overall Width (In.) | : | 1.12 |
| Minimum Operating Temperature (°C) | : | -60 |
| Overall Width (mm) | : | 50.3 |
| Overall Height (mm) | : | 8.6 |
| Application | : | Use With Hook and Loop Cable Ties |
| Mount Method | : | Screw-On |
| Mounting Hole Thread Size | : | #6 |
| Minimum Operating Temperature (°F) | : | -76 |
| Resistance Properties | : | Flame-Retardant |
| Product Type | : | Cable Tie Mount |
| Environment | : | Indoor |
| Maximum Operating Temperature (°F) | : | 212 |
| Material | : | Nylon 6.6 |
| Material Description | : | Nylon 6.6 (Flame-Retardant) |
Videos 1
- No
- Standards Met: RoHS Compliant
Packaging Details
UPC : 07498385990 GTIN Package : 00074983859900 Standard Package Volume Ft3 : 0.0133 Standard Package Weight Pounds : 0.2350 Std Package Height In : 1.5 Std Package Height MM : 38.1 Std Package Length In : 8 Std Package Length MM : 203.2 Std Package Width In : 6 Std Package Width MM : 152.4 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 25 GTIN Carton : 50074983859905 Standard Carton Volume Ft3 : 0.1329 Standard Carton Weight Pounds : 2.3500 Std Carton Height In : 3.875 Std Carton Height MM : 98.425 Std Carton Length In : 9.875 Std Carton Length MM : 250.825 Std Carton Width In : 6 Std Carton Width MM : 152.4 Std Ctn Qty : 250 Min. Order UOM : Piece EAN : 00074983859900 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 25.0000 Pallet Quantity : 79,750 Pallet Volume : 42.384494 Pallet Weight : 749.6500 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : DEFAULT Maximum Compatible Panel Thickness (In.) : 0.04 Maximum Operating Temperature (°C) : 100 Overall Length (In.) : 1.13 Flammability Rating : UL94V-0 Maximum Compatible Panel Thickness (mm) : 1 Sub Brand : Tak-Ty® For Use With : Hook and Loop Cable Ties Color : Natural Overall Length (mm) : 28.5 Overall Height (In.) : 0.34 Overall Width (In.) : 1.12 Minimum Operating Temperature (°C) : -60 Overall Width (mm) : 50.3 Overall Height (mm) : 8.6 Application : Use With Hook and Loop Cable Ties Mount Method : Screw-On Mounting Hole Thread Size : #6 Minimum Operating Temperature (°F) : -76 Resistance Properties : Flame-Retardant Product Type : Cable Tie Mount Environment : Indoor Maximum Operating Temperature (°F) : 212 Material : Nylon 6.6 Material Description : Nylon 6.6 (Flame-Retardant) - Part Drawings
