BEC75-A-T20 Wire Clip
MFG #BEC75-A-T20
$1.79Â /Â E
(Must order in increments of 200/E)
(Must order in increments of 200/E)
Product Description:

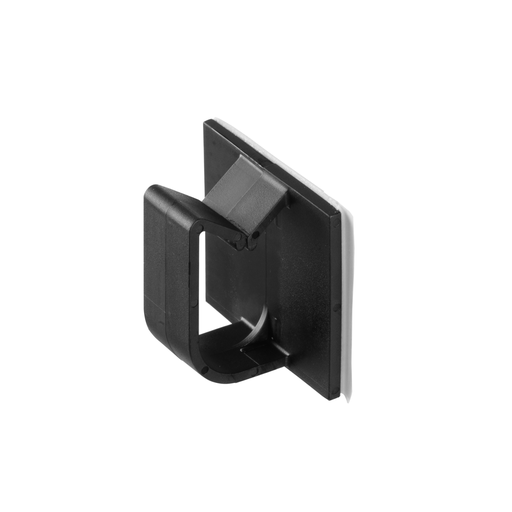

Adhesive backed bevel entry clip, .75" (19.1mm) bundle, black, bulk package.
HESCO Part Number
PANBEC75AT20
UPC
074983234165
Manufacturer Part Number
BEC75-A-T20
Manufacturer
Panduit
BEC75-A-T20 Wire Clip
MFG #BEC75-A-T20
Product Description:
Adhesive backed bevel entry clip, .75" (19.1mm) bundle, black, bulk package.
HESCO Part Number
PANBEC75AT20
UPC
074983234165
Manufacturer Part Number
BEC75-A-T20
Manufacturer
Panduit
$1.79Â /Â E
(Must order in increments of 200/E)
(Must order in increments of 200/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL Recognized ZODZ2.E136577 and Canadian ZODZ8.E136577; RoHS Compliant
- No
Specifications
| Country of Origin | :Â Â | United States |
| Any Reason Not to Sell | :Â Â | N |
| Product Segment | :Â Â | IEI |
| Product Type | :Â Â | Wire Clip |
| Overall Height (mm) | :Â Â | 22.6 |
| Maximum Bundle Diameter (In.) | :Â Â | 0.75 |
| Color | :Â Â | Black |
| Maximum Bundle Diameter (mm) | :Â Â | 19 |
| Body Material | :Â Â | Nylon 6.6 |
| Mount Method | :Â Â | Adhesive Tape |
| Adhesive Material | :Â Â | Rubber |
| Environment | :Â Â | Indoor |
| Horizontal Static Load Capacity (lb) | :Â Â | 1.09 |
| Vertical Static Load Capacity (lb) | :Â Â | 1.09 |
| Application | :Â Â | Beveled Entry Allows for Easy Insertion of Cable Bundle |
| Vertical Static Load Capacity (kg) | :Â Â | 0.494 |
| Horizontal Static Load Capacity (kg) | :Â Â | 0.494 |
| Overall Width (mm) | :Â Â | 37.8 |
| Overall Length (In.) | :Â Â | 1.46 |
| Overall Width (In.) | :Â Â | 1.49 |
| Overall Length (mm) | :Â Â | 37.1 |
| Overall Height (In.) | :Â Â | 0.89 |
Packaging Details | ||
| UPC | :Â Â | 07498323416 |
| GTIN Package | :Â Â | 00074983234165 |
| Standard Package Volume Ft3 | :Â Â | 0.3536 |
| Standard Package Weight Pounds | :Â Â | 2.8000 |
| Std Package Height In | :Â Â | 1.5 |
| Std Package Height MM | :Â Â | 38.1 |
| Std Package Length In | :Â Â | 16 |
| Std Package Length MM | :Â Â | 406.4 |
| Std Package Width In | :Â Â | 14 |
| Std Package Width MM | :Â Â | 355.6 |
| Std. Pkg. UOM | :Â Â | Piece |
| UOM EA PK | :Â Â | PK |
| Std. Pkg. Qty. | :Â Â | 200 |
| GTIN Carton | :Â Â | 50074983234160 |
| Standard Carton Volume Ft3 | :Â Â | 1.7679 |
| Standard Carton Weight Pounds | :Â Â | 14.0000 |
| Std Carton Height In | :Â Â | 12.6 |
| Std Carton Height MM | :Â Â | 320.04 |
| Std Carton Length In | :Â Â | 19.4 |
| Std Carton Length MM | :Â Â | 492.76 |
| Std Carton Width In | :Â Â | 12.5 |
| Std Carton Width MM | :Â Â | 317.5 |
| Std Ctn Qty | :Â Â | 1000 |
| Min. Order UOM | :Â Â | Piece |
| EAN | :Â Â | 00074983234165 |
| REACH Status | :Â Â | N |
| California Pro65 Cancer | :Â Â | No |
| ARRA Compliant | :Â Â | Y |
| Mercury Content Indicator | :Â Â | N |
| Hazardous Material Flag | :Â Â | N |
| Min Order Qty | :Â Â | 200.0000 |
| Pallet Quantity | :Â Â | 24,000 |
| Pallet Volume | :Â Â | 42.430389 |
| Pallet Weight | :Â Â | 336.0000 |
| RoHS Compliant | :Â Â | Compliant |
