Dome-Top® BM1M-C Cable Tie
MFG #BM1M-C
$0.46 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

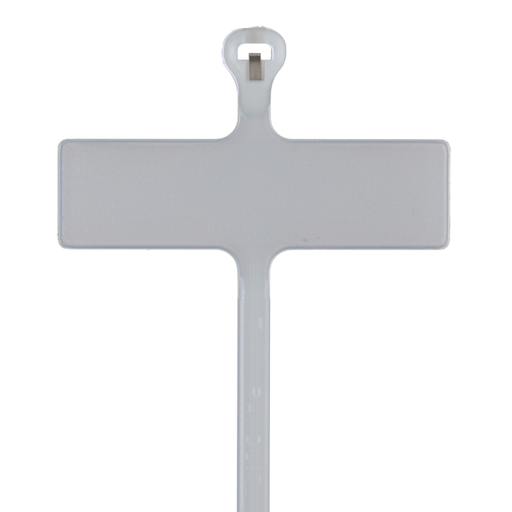

Dome-Top® Barb Ty marker tie, wrap, miniature cross section, 4.2 (107mm) length, .29 x 1.09 (7.4 x 27.7mm) marker write-on area, nylon 6.6, natural, standard package.
HESCO Part Number
PANBM1MC
UPC
074983738502
Manufacturer Part Number
BM1M-C
Manufacturer
Panduit
Dome-Top® BM1M-C Cable Tie
MFG #BM1M-C
Product Description:
Dome-Top® Barb Ty marker tie, wrap, miniature cross section, 4.2 (107mm) length, .29 x 1.09 (7.4 x 27.7mm) marker write-on area, nylon 6.6, natural, standard package.
HESCO Part Number
PANBM1MC
UPC
074983738502
Manufacturer Part Number
BM1M-C
Manufacturer
Panduit
$0.46 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL 62275 Compliant (Type 1, 11),CE Compliant,RoHS Compliant
Specifications
| Country of Origin | : | Costa Rica |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Environment | : | Indoor |
| Body Thickness (In.) | : | 0.046 |
| Body Width (In.) | : | 0.095 |
| Overall Length (In.) | : | 4.2 |
| Minimum Bundle Diameter (mm) | : | 4.8 |
| Sub Brand | : | Dome-Top® |
| Minimum Bundle Diameter (In.) | : | 0.18 |
| Product Type | : | Cable Tie |
| Maximum Operating Temperature (°F) | : | 185 |
| Minimum Installation Temperature (°F) | : | -4 |
| For Use With | : | Bundles |
| Minimum Operating Temperature (°F) | : | -70 |
| Marker Type | : | Wrap |
| Military Cross Reference Number | : | MS3368-5-9E |
| Minimum Operating Temperature (°C) | : | -60 |
| Application | : | General |
| Minimum Loop Tensile Strength (N) | : | 80 |
| Color | : | Natural |
| Body Width (mm) | : | 2.4 |
| Overall Length (mm) | : | 107 |
| Write-On Area Height (In.) | : | 0.29 |
| Minimum Loop Tensile Strength (lb) | : | 18 |
| Write-On Area Width (In.) | : | 1.09 |
| Material | : | Nylon 6.6 |
| Maximum Operating Temperature (°C) | : | 85 |
| Maximum Bundle Diameter (In.) | : | 0.9 |
| Maximum Bundle Diameter (mm) | : | 23 |
| Minimum Installation Temperature (°C) | : | -20 |
| Body Thickness (mm) | : | 1.2 |
| Write-On Area (In.) | : | 1.09W x 0.29H |
Packaging Details | ||
| UPC | : | 07498373850 |
| GTIN Package | : | 00074983738502 |
| Standard Package Volume Ft3 | : | 0.0236 |
| Standard Package Weight Pounds | : | 0.1700 |
| Std Package Height In | : | 1.05 |
| Std Package Height MM | : | 26.67 |
| Std Package Length In | : | 6.55 |
| Std Package Length MM | : | 166.37 |
| Std Package Width In | : | 5.7 |
| Std Package Width MM | : | 144.78 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983738507 |
| Standard Carton Volume Ft3 | : | 0.2363 |
| Standard Carton Weight Pounds | : | 1.7000 |
| Std Carton Height In | : | 5.95 |
| Std Carton Height MM | : | 151.13 |
| Std Carton Length In | : | 10 |
| Std Carton Length MM | : | 254 |
| Std Carton Width In | : | 6.85 |
| Std Carton Width MM | : | 173.99 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983738502 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 224,000 |
| Pallet Volume | : | 52.933598 |
| Pallet Weight | : | 380.8000 |
| RoHS Compliant | : | Compliant |
