Reel Smart™ BSP14-3K Butt Splice
MFG #BSP14-3K
$0.47 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
Product Description:

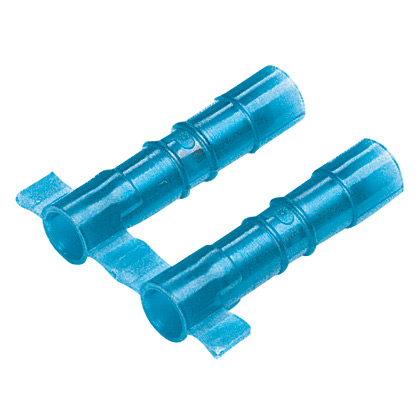

Panduit BSP14-3K Premium Nylon Insulated Butt Splice
HESCO Part Number
PANBSP143K
UPC
074983830190
Manufacturer Part Number
BSP14-3K
Manufacturer
Panduit
Reel Smart™ BSP14-3K Butt Splice
MFG #BSP14-3K
Product Description:
Panduit BSP14-3K Premium Nylon Insulated Butt Splice
HESCO Part Number
PANBSP143K
UPC
074983830190
Manufacturer Part Number
BSP14-3K
Manufacturer
Panduit
$0.47 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
- Features
- Specifications
- Resources
- Standards Met: UL 486C, CSA C22.2 No.65
Packaging Details
| UPC | : | 07498383019 |
| GTIN Package | : | 00074983830190 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 10.5000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 3000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983830190 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 3,000.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 168.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Base Material | : | Copper |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Finish/Coating | : | Tin-Plated |
| Minimum Metric Conductor Size (mm²) | : | 1 |
| Sub Brand | : | Reel Smart™ |
| UL Temperature Rating (°F) | : | 221 |
| Color Code | : | Blue |
| Barrel Type | : | Funnel Entry |
| Maximum Voltage (kV) | : | 0.6 |
| Wire Strip Length (In.) | : | 5/16 |
| Maximum Voltage (V) | : | 600 |
| Wire Strip Length (mm) | : | 7.9 |
| Overall Length (In.) | : | 0.96 |
| Overall Width (In.) | : | 0.24 |
| Overall Width (mm) | : | 6 |
| Product Type | : | Butt Splice |
| UL Temperature Rating (°C) | : | 105 |
| CSA Temperature Rating (°C) | : | 105 |
| Overall Length (mm) | : | 24.4 |
| Insulation Material | : | Nylon |
| CSA Temperature Rating (°F) | : | 221 |
| Copper Conductor Size | : | 18-14 AWG |
- Standards Met: UL 486C, CSA C22.2 No.65
Packaging Details
UPC : 07498383019 GTIN Package : 00074983830190 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 10.5000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 3000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983830190 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 3,000.0000 Pallet Quantity : 48,000 Pallet Volume : 0.000000 Pallet Weight : 168.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Base Material : Copper Maximum Metric Conductor Size (mm²) : 2.5 Finish/Coating : Tin-Plated Minimum Metric Conductor Size (mm²) : 1 Sub Brand : Reel Smart™ UL Temperature Rating (°F) : 221 Color Code : Blue Barrel Type : Funnel Entry Maximum Voltage (kV) : 0.6 Wire Strip Length (In.) : 5/16 Maximum Voltage (V) : 600 Wire Strip Length (mm) : 7.9 Overall Length (In.) : 0.96 Overall Width (In.) : 0.24 Overall Width (mm) : 6 Product Type : Butt Splice UL Temperature Rating (°C) : 105 CSA Temperature Rating (°C) : 105 Overall Length (mm) : 24.4 Insulation Material : Nylon CSA Temperature Rating (°F) : 221 Copper Conductor Size : 18-14 AWG - Selection Guides
