Dome-Top® BT1.5I-M39 Barb Tie, High Heat PA6.6, 6.1"L, 40lb, PK1000
MFG #BT1.5I-M39
$0.13 / E
(Must order in increments of 5000/E)
(Must order in increments of 5000/E)
Product Description:

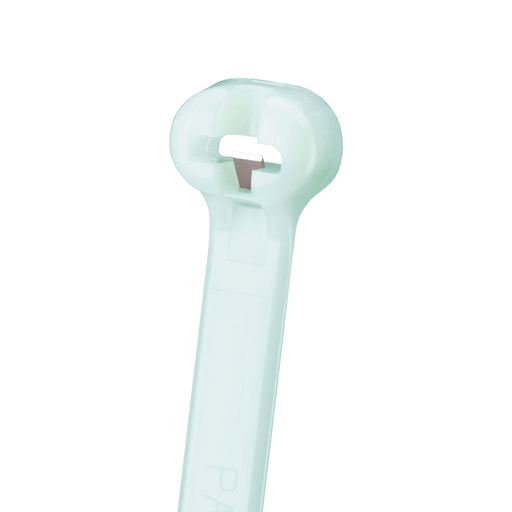

Dome-Top® barb ty cable tie, intermediate cross section, 6.1 (155mm) length, heat stabilized nylon 6.6, natural.
HESCO Part Number
PANBT15IM39
UPC
074983633852
Manufacturer Part Number
BT1.5I-M39
Manufacturer
Panduit
Dome-Top® BT1.5I-M39 Barb Tie, High Heat PA6.6, 6.1"L, 40lb, PK1000
MFG #BT1.5I-M39
Product Description:
Dome-Top® barb ty cable tie, intermediate cross section, 6.1 (155mm) length, heat stabilized nylon 6.6, natural.
HESCO Part Number
PANBT15IM39
UPC
074983633852
Manufacturer Part Number
BT1.5I-M39
Manufacturer
Panduit
$0.13 / E
(Must order in increments of 5000/E)
(Must order in increments of 5000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
- No
Specifications
| Country of Origin | : | Costa Rica |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Body Thickness (In.) | : | 0.041 |
| Body Thickness (mm) | : | 1 |
| Minimum Operating Temperature (°F) | : | -76 |
| Resistance Properties | : | Heat-Resistant |
| Minimum Installation Temperature (°F) | : | -4 |
| Body Width (In.) | : | 0.142 |
| Material | : | Nylon 6.6 |
| Color | : | Natural |
| Sub Brand | : | Dome-Top® |
| Application | : | High Temperature |
| Overall Length (mm) | : | 155 |
| Body Width (mm) | : | 3.6 |
| Minimum Installation Temperature (°C) | : | -20 |
| Minimum Loop Tensile Strength (lb) | : | 40 |
| Maximum Bundle Diameter (In.) | : | 1.5 |
| For Use With | : | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Maximum Operating Temperature (°C) | : | 115 |
| Minimum Bundle Diameter (In.) | : | 0.03 |
| Maximum Bundle Diameter (mm) | : | 38.1 |
| Maximum Operating Temperature (°F) | : | 239 |
| Product Type | : | Cable Tie |
| Minimum Loop Tensile Strength (N) | : | 178 |
| Overall Length (In.) | : | 6.1 |
| Military Cross Reference Number | : | MS3367-5-12 |
| Environment | : | Indoor |
| Minimum Bundle Diameter (mm) | : | 0.8 |
| Minimum Operating Temperature (°C) | : | -60 |
| Material Description | : | Nylon 6.6 (Heat-Resistant) |
Packaging Details | ||
| UPC | : | 07498363385 |
| GTIN Package | : | 00074983633852 |
| Standard Package Volume Ft3 | : | 0.1068 |
| Standard Package Weight Pounds | : | 0.8818 |
| Std Package Height In | : | 1 |
| Std Package Height MM | : | 25.4 |
| Std Package Length In | : | 14 |
| Std Package Length MM | : | 355.6 |
| Std Package Width In | : | 8 |
| Std Package Width MM | : | 203.2 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983633857 |
| Standard Carton Volume Ft3 | : | 2.6710 |
| Standard Carton Weight Pounds | : | 22.0450 |
| Std Carton Height In | : | 14.41 |
| Std Carton Height MM | : | 366.014 |
| Std Carton Length In | : | 21.96 |
| Std Carton Length MM | : | 557.784 |
| Std Carton Width In | : | 14.58 |
| Std Carton Width MM | : | 370.332 |
| Std Ctn Qty | : | 25000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983633852 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 5,000.0000 |
| Pallet Quantity | : | 450,000 |
| Pallet Volume | : | 48.077564 |
| Pallet Weight | : | 396.8100 |
| RoHS Compliant | : | Compliant |
