Dome-Top® BT4S-M6 Cable Tie
MFG #BT4S-M6
$0.42 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

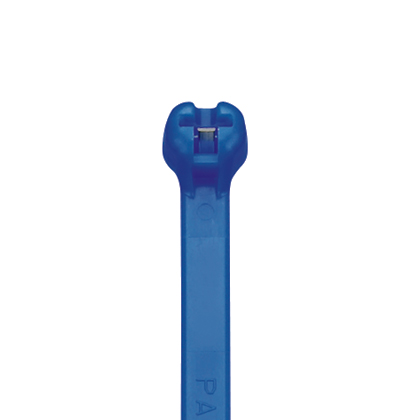

Dome-Top® barb ty cable tie, standard cross section, 15.1 (384mm) length, nylon 6.6, blue.
HESCO Part Number
PANBT4SM6
UPC
074983412501
Manufacturer Part Number
BT4S-M6
Manufacturer
Panduit
Dome-Top® BT4S-M6 Cable Tie
MFG #BT4S-M6
Product Description:
Dome-Top® barb ty cable tie, standard cross section, 15.1 (384mm) length, nylon 6.6, blue.
HESCO Part Number
PANBT4SM6
UPC
074983412501
Manufacturer Part Number
BT4S-M6
Manufacturer
Panduit
$0.42 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant
- No
Specifications
| Country of Origin | : | Costa Rica |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Bundle Diameter (mm) | : | 101.6 |
| Overall Length (In.) | : | 15.1 |
| Product Type | : | Cable Tie |
| Minimum Operating Temperature (°C) | : | -60 |
| Overall Length (mm) | : | 384 |
| Body Width (mm) | : | 4.7 |
| Environment | : | Plenum |
| Body Thickness (In.) | : | 0.052 |
| Body Width (In.) | : | 0.185 |
| For Use With | : | GTS-E, GS2B-E, GTH-E, GS4H-E, STS2, STH2 |
| Application | : | General |
| Material | : | Nylon 6.6 |
| Sub Brand | : | Dome-Top® |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Maximum Bundle Diameter (In.) | : | 4 |
| Minimum Installation Temperature (°C) | : | -20 |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Minimum Installation Temperature (°F) | : | -4 |
| Minimum Operating Temperature (°F) | : | -76 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Maximum Operating Temperature (°C) | : | 85 |
| Color | : | Blue |
| Body Thickness (mm) | : | 1.3 |
| Maximum Operating Temperature (°F) | : | 185 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Military Cross Reference Number | : | MS3367-2-6 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498341250 |
| GTIN Package | : | 00074983412501 |
| Standard Package Volume Ft3 | : | 0.4005 |
| Standard Package Weight Pounds | : | 6.0000 |
| Std Package Height In | : | 3 |
| Std Package Height MM | : | 76.2 |
| Std Package Length In | : | 16 |
| Std Package Length MM | : | 406.4 |
| Std Package Width In | : | 13 |
| Std Package Width MM | : | 330.2 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983412506 |
| Standard Carton Volume Ft3 | : | 2.0027 |
| Standard Carton Weight Pounds | : | 30.0000 |
| Std Carton Height In | : | 14.41 |
| Std Carton Height MM | : | 366.014 |
| Std Carton Length In | : | 22.96 |
| Std Carton Length MM | : | 583.184 |
| Std Carton Width In | : | 10.46 |
| Std Carton Width MM | : | 265.684 |
| Std Ctn Qty | : | 5000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983412501 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 120,000 |
| Pallet Volume | : | 48.065676 |
| Pallet Weight | : | 720.0000 |
| RoHS Compliant | : | Compliant |
