Panduct® C2IB6 Flush Duct Cover
MFG #C2IB6
$2.37 / FT
FEET
FEET
Product Description:

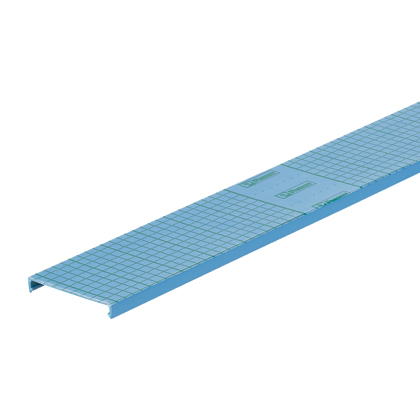

The C2IB6 PVC Flush Wiring Duct Cover with Protective Film features a non-slip, liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). 0.35" x 2.25" (8.9 mm x 57.2 mm) and 6' (1.83 m) long. Color Intrinsic Blue.
HESCO Part Number
PANC2IB6
UPC
074983273850
Manufacturer Part Number
C2IB6
Manufacturer
Panduit
Panduct® C2IB6 Flush Duct Cover
MFG #C2IB6
Product Description:
The C2IB6 PVC Flush Wiring Duct Cover with Protective Film features a non-slip, liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). 0.35" x 2.25" (8.9 mm x 57.2 mm) and 6' (1.83 m) long. Color Intrinsic Blue.
HESCO Part Number
PANC2IB6
UPC
074983273850
Manufacturer Part Number
C2IB6
Manufacturer
Panduit
$2.37 / FT
FEET
FEET
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL Recognized; Flammability Ratings: UL94 V-0; CSA Certified; CE Compliant; RoHS Compliant
Packaging Details
| UPC | : | 07498327385 |
| GTIN Package | : | 00074983273850 |
| Standard Package Volume Ft3 | : | 0.0277 |
| Standard Package Weight Pounds | : | 0.6000 |
| Std Package Height In | : | .1 |
| Std Package Height MM | : | 2.54 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 2 |
| Std Package Width MM | : | 50.8 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983273855 |
| Standard Carton Volume Ft3 | : | 0.5537 |
| Standard Carton Weight Pounds | : | 12.0000 |
| Std Carton Height In | : | 2.8 |
| Std Carton Height MM | : | 71.12 |
| Std Carton Length In | : | 72.7 |
| Std Carton Length MM | : | 1846.58 |
| Std Carton Width In | : | 4.7 |
| Std Carton Width MM | : | 119.38 |
| Std Ctn Qty | : | 120 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983273850 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 120.0000 |
| Pallet Quantity | : | 6,720 |
| Pallet Volume | : | 31.005204 |
| Pallet Weight | : | 672.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Width (mm) | : | 57.2 |
| Overall Height (In.) | : | 0.35 |
| Compatible Duct Width (In.) | : | 2 |
| Wiring Duct Style | : | Flush Cover |
| Compatible Duct Width (mm) | : | 50.8 |
| For Use With | : | Type G, Type F, Type D and Type FS Duct Base |
| Overall Height (mm) | : | 8.9 |
| Application | : | Cover for Wiring Duct |
| Overall Width (In.) | : | 2.25 |
| Overall Length (m) | : | 1.83 |
| Material | : | PVC |
| Sub Brand | : | Panduct® |
| Product Type | : | Flushed Duct Cover |
| Mount Method | : | Snap-On |
| Overall Length (ft.) | : | 6 |
| Color | : | Intrinsic Blue |
Installation Documents
Installation Documents 1
Flyers
Flyers 1
Selection Guides
Selection Guides 1
Part Drawings
Part Drawings 1
Technical References
Technical References 1
Installation Documents 1Flyers
Flyers 1Selection Guides
Selection Guides 1Part Drawings
Part Drawings 1Technical References
Technical References 1Videos 1
- No
- Standards Met: UL Recognized; Flammability Ratings: UL94 V-0; CSA Certified; CE Compliant; RoHS Compliant
Packaging Details
UPC : 07498327385 GTIN Package : 00074983273850 Standard Package Volume Ft3 : 0.0277 Standard Package Weight Pounds : 0.6000 Std Package Height In : .1 Std Package Height MM : 2.54 Std Package Length In : 72 Std Package Length MM : 1828.8 Std Package Width In : 2 Std Package Width MM : 50.8 Std. Pkg. UOM : Foot UOM EA PK : PK Std. Pkg. Qty. : 6 GTIN Carton : 50074983273855 Standard Carton Volume Ft3 : 0.5537 Standard Carton Weight Pounds : 12.0000 Std Carton Height In : 2.8 Std Carton Height MM : 71.12 Std Carton Length In : 72.7 Std Carton Length MM : 1846.58 Std Carton Width In : 4.7 Std Carton Width MM : 119.38 Std Ctn Qty : 120 Min. Order UOM : Foot EAN : 00074983273850 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 120.0000 Pallet Quantity : 6,720 Pallet Volume : 31.005204 Pallet Weight : 672.0000 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Overall Width (mm) : 57.2 Overall Height (In.) : 0.35 Compatible Duct Width (In.) : 2 Wiring Duct Style : Flush Cover Compatible Duct Width (mm) : 50.8 For Use With : Type G, Type F, Type D and Type FS Duct Base Overall Height (mm) : 8.9 Application : Cover for Wiring Duct Overall Width (In.) : 2.25 Overall Length (m) : 1.83 Material : PVC Sub Brand : Panduct® Product Type : Flushed Duct Cover Mount Method : Snap-On Overall Length (ft.) : 6 Color : Intrinsic Blue - Installation DocumentsInstallation Documents 1
