Corr. Loom Tubing Split, 1.303" (33.1mm) x 50', Yellow,PK1
MFG #CLT125F-L4
$99.73 / E
EACH
EACH
Product Description:

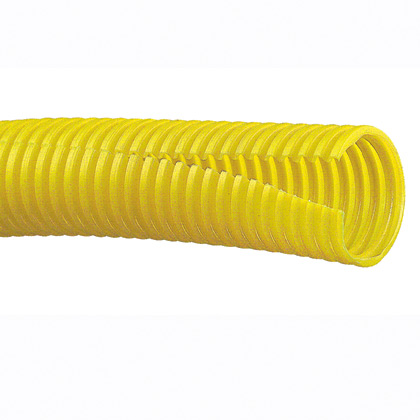

The CLT125F-L4 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 1.303" (33.1mm). Color Yellow. 1 per package.
HESCO Part Number
PANCLT125FL4
UPC
074983829170
Manufacturer Part Number
CLT125F-L4
Manufacturer
Panduit
Corr. Loom Tubing Split, 1.303" (33.1mm) x 50', Yellow,PK1
MFG #CLT125F-L4
Product Description:
The CLT125F-L4 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 1.303" (33.1mm). Color Yellow. 1 per package.
HESCO Part Number
PANCLT125FL4
UPC
074983829170
Manufacturer Part Number
CLT125F-L4
Manufacturer
Panduit
$99.73 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Inside Diameter (mm) | : | 33.1 |
| Environment | : | Indoor |
| Nominal Diameter (In.) | : | 1.25 |
| Maximum Operating Temperature (°F) | : | 122 |
| Outer Diameter (In.) | : | 1.524 |
| Resistance Properties | : | Abrasion-Resistant |
| Color | : | Yellow |
| Material | : | Polyethylene |
| Inside Diameter (In.) | : | 1.3 |
| Maximum Operating Temperature (°C) | : | 50 |
| Nominal Diameter (mm) | : | 31.8 |
| Outer Diameter (mm) | : | 38.7 |
| Flammability Rating | : | UL94-HB |
| Overall Length (m) | : | 15.24 |
| Overall Length (ft.) | : | 50 |
| Minimum Operating Temperature (°C) | : | -40 |
| Minimum Operating Temperature (°F) | : | -40 |
| Product Type | : | Corrugated Loom Tubing |
Packaging Details | ||
| UPC | : | 07498382917 |
| GTIN Package | : | 00074983829170 |
| Standard Package Volume Ft3 | : | 2.4780 |
| Standard Package Weight Pounds | : | 6.7000 |
| Std Package Height In | : | 9.4 |
| Std Package Height MM | : | 238.76 |
| Std Package Length In | : | 21.4 |
| Std Package Length MM | : | 543.56 |
| Std Package Width In | : | 21.4 |
| Std Package Width MM | : | 543.56 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983829170 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 20 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 134.0000 |
| RoHS Compliant | : | Compliant |
Part Drawings
Part Drawings 1
Selection Guides
Selection Guides 1
Videos
Technical References
Technical References 1
Part Drawings 1Selection Guides
Selection Guides 1Videos
Technical References
Technical References 1Videos 1
- Standards Met: RoHS Compliant
Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Inside Diameter (mm) : 33.1 Environment : Indoor Nominal Diameter (In.) : 1.25 Maximum Operating Temperature (°F) : 122 Outer Diameter (In.) : 1.524 Resistance Properties : Abrasion-Resistant Color : Yellow Material : Polyethylene Inside Diameter (In.) : 1.3 Maximum Operating Temperature (°C) : 50 Nominal Diameter (mm) : 31.8 Outer Diameter (mm) : 38.7 Flammability Rating : UL94-HB Overall Length (m) : 15.24 Overall Length (ft.) : 50 Minimum Operating Temperature (°C) : -40 Minimum Operating Temperature (°F) : -40 Product Type : Corrugated Loom Tubing Packaging Details
UPC : 07498382917 GTIN Package : 00074983829170 Standard Package Volume Ft3 : 2.4780 Standard Package Weight Pounds : 6.7000 Std Package Height In : 9.4 Std Package Height MM : 238.76 Std Package Length In : 21.4 Std Package Length MM : 543.56 Std Package Width In : 21.4 Std Package Width MM : 543.56 Std. Pkg. UOM : Roll UOM EA PK : EA Std. Pkg. Qty. : 1 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Roll EAN : 00074983829170 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1.0000 Pallet Quantity : 20 Pallet Volume : 0.000000 Pallet Weight : 134.0000 RoHS Compliant : Compliant - Part DrawingsPart Drawings 1
Selection GuidesSelection Guides 1
Videos
Technical ReferencesTechnical References 1 - Videos 1
