Corr. Loom Tubing Slit, 1.87" (47.5mm) X 100' (30.4m), Black,PK1
MFG #CLT188F-C20
$272.16 / e
(Must order in increments of 2/e)
(Must order in increments of 2/e)
Product Description:

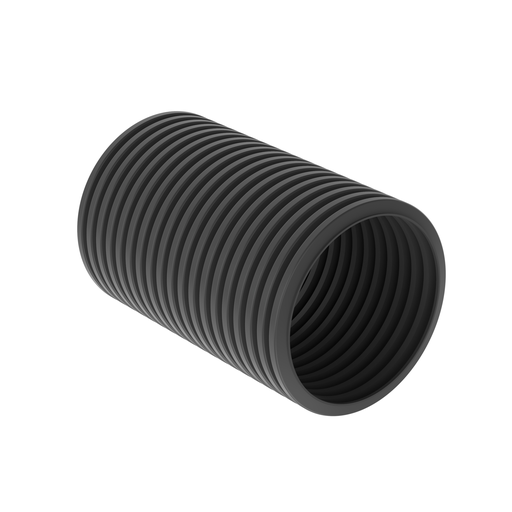

The CLT188F-C20 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 1.87" (47.5mm). Color Black. 1 per package.
HESCO Part Number
PANCLT188FC20
UPC
074983829026
Manufacturer Part Number
CLT188F-C20
Manufacturer
Panduit
Corr. Loom Tubing Slit, 1.87" (47.5mm) X 100' (30.4m), Black,PK1
MFG #CLT188F-C20
Product Description:
The CLT188F-C20 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 1.87" (47.5mm). Color Black. 1 per package.
HESCO Part Number
PANCLT188FC20
UPC
074983829026
Manufacturer Part Number
CLT188F-C20
Manufacturer
Panduit
$272.16 / e
(Must order in increments of 2/e)
(Must order in increments of 2/e)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: RoHS Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Flammability Rating | : | UL94-HB |
| Nominal Diameter (In.) | : | 1.88 |
| Overall Length (ft.) | : | 100 |
| Inside Diameter (mm) | : | 47.5 |
| Nominal Diameter (mm) | : | 47.5 |
| Product Type | : | Corrugated Loom Tubing |
| Color | : | Black |
| Overall Length (m) | : | 30.48 |
| Resistance Properties | : | Impact-Resistant |
| Inside Diameter (In.) | : | 1.87 |
| Outer Diameter (In.) | : | 2.157 |
| Minimum Operating Temperature (°C) | : | -40 |
| Maximum Operating Temperature (°C) | : | 50 |
| Maximum Operating Temperature (°F) | : | 122 |
| Outer Diameter (mm) | : | 54.8 |
| Environment | : | Indoor |
| Minimum Operating Temperature (°F) | : | -40 |
| Material | : | Polyethylene |
Packaging Details | ||
| UPC | : | 07498382902 |
| GTIN Package | : | 00074983829026 |
| Standard Package Volume Ft3 | : | 9.2471 |
| Standard Package Weight Pounds | : | 19.1000 |
| Std Package Height In | : | 19 |
| Std Package Height MM | : | 482.6 |
| Std Package Length In | : | 29 |
| Std Package Length MM | : | 736.6 |
| Std Package Width In | : | 29 |
| Std Package Width MM | : | 736.6 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983829026 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2.0000 |
| Pallet Quantity | : | 2 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 38.2000 |
| RoHS Compliant | : | Compliant |
