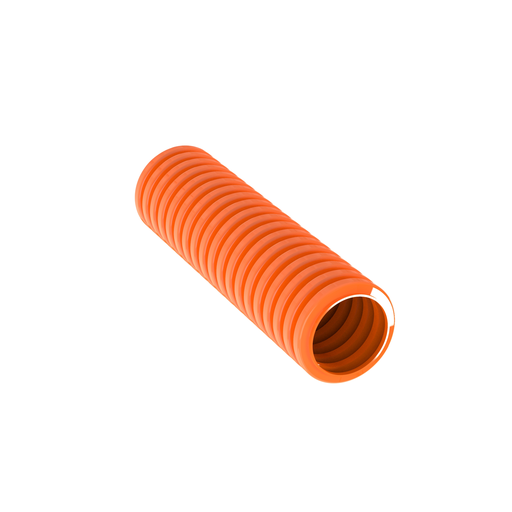

Corr. Loom Tubing Slit, .5" (12.7mm) X 100', Orange,PK1
MFG #CLT50F-C3
$80.71 / E
(Must order in increments of 4/E)
(Must order in increments of 4/E)
Product Description:
The CLT50F-C3 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 0.518" (13.16mm). Color Orange. 1 per package.
HESCO Part Number
PANCLT50FC3
UPC
074983719884
Manufacturer Part Number
CLT50F-C3
Manufacturer
Panduit
Corr. Loom Tubing Slit, .5" (12.7mm) X 100', Orange,PK1
MFG #CLT50F-C3
Product Description:
The CLT50F-C3 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 0.518" (13.16mm). Color Orange. 1 per package.
HESCO Part Number
PANCLT50FC3
UPC
074983719884
Manufacturer Part Number
CLT50F-C3
Manufacturer
Panduit
$80.71 / E
(Must order in increments of 4/E)
(Must order in increments of 4/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Operating Temperature (°C) | : | -40 |
| Outer Diameter (mm) | : | 17.2 |
| Overall Length (ft.) | : | 100 |
| Environment | : | Indoor |
| Maximum Operating Temperature (°F) | : | 122 |
| Maximum Operating Temperature (°C) | : | 50 |
| Nominal Diameter (mm) | : | 12.7 |
| Resistance Properties | : | Impact-Resistant |
| Material | : | Polyethylene |
| Overall Length (m) | : | 30.48 |
| Outer Diameter (In.) | : | 0.675 |
| Product Type | : | Corrugated Loom Tubing |
| Color | : | Orange |
| Minimum Operating Temperature (°F) | : | -40 |
| Inside Diameter (mm) | : | 13.2 |
| Flammability Rating | : | UL94-HB |
| Inside Diameter (In.) | : | 0.52 |
| Nominal Diameter (In.) | : | 0.5 |
Packaging Details | ||
| UPC | : | 07498371988 |
| GTIN Package | : | 00074983719884 |
| Standard Package Volume Ft3 | : | 0.8359 |
| Standard Package Weight Pounds | : | 3.2500 |
| Std Package Height In | : | 6.8 |
| Std Package Height MM | : | 172.72 |
| Std Package Length In | : | 14.45 |
| Std Package Length MM | : | 367.03 |
| Std Package Width In | : | 14.4 |
| Std Package Width MM | : | 365.76 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983719884 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 4.0000 |
| Pallet Quantity | : | 63 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 204.7500 |
| RoHS Compliant | : | Compliant |
