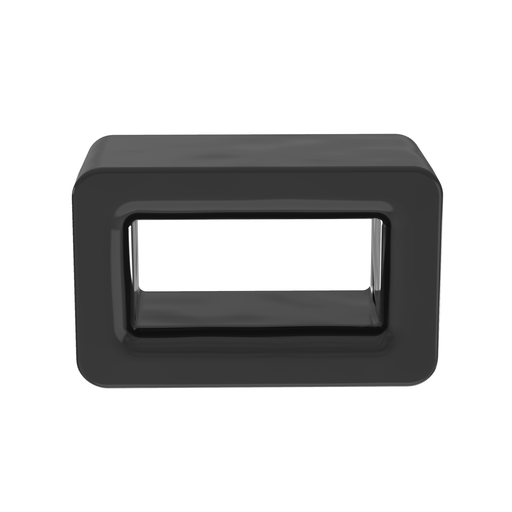

CR4H-M0 Connector Ring, Black, UV PA 6.6, 0.57x0.36", PK1000
MFG #CR4H-M0
$0.42 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:
Panduit CR4H-M0 Closed Cable Tie Connector Ring Mounts connect multiple wire bundles or hang bundles from conduit, eliminating the need for saddle clamps. These mounts can be used with miniature, intermediate, standard, heavy-standard and light-heavy cable ties and are intended for outdoordoor environments. They are 0.57” x 0.36” (14.5mm x 9.1mm) in size. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 1000.
HESCO Part Number
PANCR4HM0
UPC
074983589210
Manufacturer Part Number
CR4H-M0
Manufacturer
Panduit
CR4H-M0 Connector Ring, Black, UV PA 6.6, 0.57x0.36", PK1000
MFG #CR4H-M0
Product Description:
Panduit CR4H-M0 Closed Cable Tie Connector Ring Mounts connect multiple wire bundles or hang bundles from conduit, eliminating the need for saddle clamps. These mounts can be used with miniature, intermediate, standard, heavy-standard and light-heavy cable ties and are intended for outdoordoor environments. They are 0.57” x 0.36” (14.5mm x 9.1mm) in size. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 1000.
HESCO Part Number
PANCR4HM0
UPC
074983589210
Manufacturer Part Number
CR4H-M0
Manufacturer
Panduit
$0.42 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Standards Met: UL Recognized #E136577
- No
Specifications
Country of Origin | : | United States |
Any Reason Not to Sell | : | N |
Product Segment | : | IEI |
Maximum Installation Temperature (°C) | : | 85 |
Maximum Operating Temperature (°C) | : | 85 |
Overall Length (mm) | : | 14.6 |
Minimum Installation Temperature (°F) | : | -4 |
Overall Height (mm) | : | 7.6 |
Resistance Properties | : | Weather-Resistant |
Material | : | Nylon 6.6 |
Overall Width (In.) | : | 0.36 |
Minimum Installation Temperature (°C) | : | -20 |
Maximum Installation Temperature (°F) | : | 185 |
Overall Height (In.) | : | 0.3 |
Overall Width (mm) | : | 9.1 |
Product Type | : | Connector Ring |
Application | : | Connect Multiple Cable Bundles |
Maximum Operating Temperature (°F) | : | 185 |
Mount Method | : | Cable Tie |
Overall Length (In.) | : | 0.57 |
Minimum Operating Temperature (°F) | : | -76 |
Color | : | Black |
Minimum Operating Temperature (°C) | : | -60 |
Environment | : | Indoor/Outdoor |
For Use With | : | Cable Ties : M, I, S, HS, LH |
Packaging Details | ||
UPC | : | 07498358921 |
GTIN Package | : | 00074983589210 |
Standard Package Volume Ft3 | : | 0.0839 |
Standard Package Weight Pounds | : | 1.6650 |
Std Package Height In | : | 2.8 |
Std Package Height MM | : | 71.12 |
Std Package Length In | : | 9.9 |
Std Package Length MM | : | 251.46 |
Std Package Width In | : | 7.45 |
Std Package Width MM | : | 189.23 |
Std. Pkg. UOM | : | Piece |
UOM EA PK | : | PK |
Std. Pkg. Qty. | : | 1000 |
GTIN Carton | : | 50074983589215 |
Standard Carton Volume Ft3 | : | 0.8390 |
Standard Carton Weight Pounds | : | 16.6500 |
Std Carton Height In | : | 8.8 |
Std Carton Height MM | : | 223.52 |
Std Carton Length In | : | 16.7 |
Std Carton Length MM | : | 424.18 |
Std Carton Width In | : | 10.45 |
Std Carton Width MM | : | 265.43 |
Std Ctn Qty | : | 10000 |
Min. Order UOM | : | Piece |
EAN | : | 00074983589210 |
REACH Status | : | N |
California Pro65 Cancer | : | No |
ARRA Compliant | : | Y |
Mercury Content Indicator | : | N |
Lead Content Indicator | : | N |
Restricted Use of Hazardous Substances | : | N |
Hazardous Material Flag | : | N |
Min Order Qty | : | 2,000.0000 |
Pallet Quantity | : | 450,000 |
Pallet Volume | : | 37.754167 |
Pallet Weight | : | 749.2500 |
RoHS Compliant | : | Compliant |
