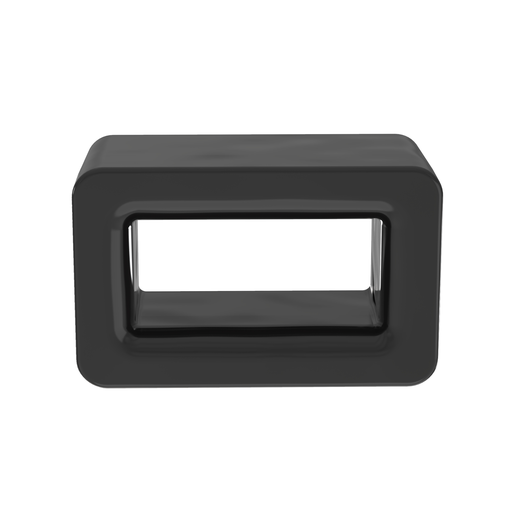

CR4H-M30 Connector Ring, Black, High Heat PA 6.6, 0.57x0.36", PK1000
MFG #CR4H-M30
$0.42 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:
Panduit CR4H-M30 Closed Cable Tie Connector Ring Mounts connect multiple wire bundles or hang bundles from conduit, eliminating the need for saddle clamps. These mounts can be used with miniature, intermediate, standard, heavy-standard and light-heavy cable ties and are intended for outdoor environments. They are 0.57” x 0.36” (14.5mm x 9.1mm) in size. Made of Heat Stabilized Nylon 6.6, are black in color and come in packages of 1000.
HESCO Part Number
PANCR4HM30
UPC
074983589227
Manufacturer Part Number
CR4H-M30
Manufacturer
Panduit
CR4H-M30 Connector Ring, Black, High Heat PA 6.6, 0.57x0.36", PK1000
MFG #CR4H-M30
Product Description:
Panduit CR4H-M30 Closed Cable Tie Connector Ring Mounts connect multiple wire bundles or hang bundles from conduit, eliminating the need for saddle clamps. These mounts can be used with miniature, intermediate, standard, heavy-standard and light-heavy cable ties and are intended for outdoor environments. They are 0.57” x 0.36” (14.5mm x 9.1mm) in size. Made of Heat Stabilized Nylon 6.6, are black in color and come in packages of 1000.
HESCO Part Number
PANCR4HM30
UPC
074983589227
Manufacturer Part Number
CR4H-M30
Manufacturer
Panduit
$0.42 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Standards Met: UL Recognized #E136577
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Operating Temperature (°C) | : | -60 |
| Overall Width (In.) | : | 0.36 |
| For Use With | : | Cable Ties : M, I, S, HS, LH |
| Overall Height (In.) | : | 0.3 |
| Environment | : | Indoor |
| Overall Length (mm) | : | 14.6 |
| Minimum Installation Temperature (°C) | : | -20 |
| Resistance Properties | : | Heat-Resistant |
| Color | : | Black |
| Overall Width (mm) | : | 9.1 |
| Application | : | Connect Multiple Cable Bundles |
| Overall Length (In.) | : | 0.57 |
| Maximum Operating Temperature (°C) | : | 115 |
| Overall Height (mm) | : | 7.6 |
| Minimum Installation Temperature (°F) | : | -4 |
| Maximum Operating Temperature (°F) | : | 239 |
| Minimum Operating Temperature (°F) | : | -76 |
| Mount Method | : | Cable Tie |
| Product Type | : | Connector Ring |
| Maximum Installation Temperature (°C) | : | 115 |
| Maximum Installation Temperature (°F) | : | 239 |
| Material | : | Nylon 6.6 |
| Material Properties | : | Heat-Stabilized |
Packaging Details | ||
| UPC | : | 07498358922 |
| GTIN Package | : | 00074983589227 |
| Standard Package Volume Ft3 | : | 0.0860 |
| Standard Package Weight Pounds | : | 1.6000 |
| Std Package Height In | : | 8.3 |
| Std Package Height MM | : | 210.82 |
| Std Package Length In | : | 16.3 |
| Std Package Length MM | : | 414.02 |
| Std Package Width In | : | 10.3 |
| Std Package Width MM | : | 261.62 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983589222 |
| Standard Carton Volume Ft3 | : | 0.8599 |
| Standard Carton Weight Pounds | : | 16.0000 |
| Std Carton Height In | : | 8.9 |
| Std Carton Height MM | : | 226.06 |
| Std Carton Length In | : | 16.5 |
| Std Carton Length MM | : | 419.1 |
| Std Carton Width In | : | 10.5 |
| Std Carton Width MM | : | 266.7 |
| Std Ctn Qty | : | 10000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983589227 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 450,000 |
| Pallet Volume | : | 38.697114 |
| Pallet Weight | : | 720.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL Recognized #E136577
- No
Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Minimum Operating Temperature (°C) : -60 Overall Width (In.) : 0.36 For Use With : Cable Ties : M, I, S, HS, LH Overall Height (In.) : 0.3 Environment : Indoor Overall Length (mm) : 14.6 Minimum Installation Temperature (°C) : -20 Resistance Properties : Heat-Resistant Color : Black Overall Width (mm) : 9.1 Application : Connect Multiple Cable Bundles Overall Length (In.) : 0.57 Maximum Operating Temperature (°C) : 115 Overall Height (mm) : 7.6 Minimum Installation Temperature (°F) : -4 Maximum Operating Temperature (°F) : 239 Minimum Operating Temperature (°F) : -76 Mount Method : Cable Tie Product Type : Connector Ring Maximum Installation Temperature (°C) : 115 Maximum Installation Temperature (°F) : 239 Material : Nylon 6.6 Material Properties : Heat-Stabilized Packaging Details
UPC : 07498358922 GTIN Package : 00074983589227 Standard Package Volume Ft3 : 0.0860 Standard Package Weight Pounds : 1.6000 Std Package Height In : 8.3 Std Package Height MM : 210.82 Std Package Length In : 16.3 Std Package Length MM : 414.02 Std Package Width In : 10.3 Std Package Width MM : 261.62 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 GTIN Carton : 50074983589222 Standard Carton Volume Ft3 : 0.8599 Standard Carton Weight Pounds : 16.0000 Std Carton Height In : 8.9 Std Carton Height MM : 226.06 Std Carton Length In : 16.5 Std Carton Length MM : 419.1 Std Carton Width In : 10.5 Std Carton Width MM : 266.7 Std Ctn Qty : 10000 Min. Order UOM : Piece EAN : 00074983589227 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 2,000.0000 Pallet Quantity : 450,000 Pallet Volume : 38.697114 Pallet Weight : 720.0000 RoHS Compliant : Compliant - Selection Guides
