Panduct® D3HWH6 Solid Divider Wall
MFG #D3HWH6
$5.58 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
Product Description:

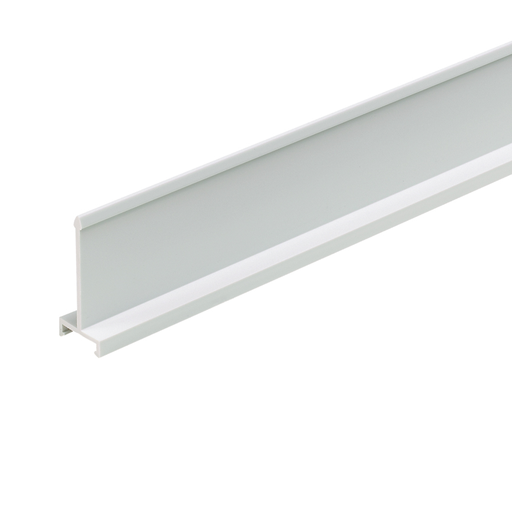

Panduct® solid divider wall, 3.00" nominal duct height, 6' length, PVC, white.
HESCO Part Number
PAND3HWH6
UPC
074983023226
Manufacturer Part Number
D3HWH6
Manufacturer
Panduit
Panduct® D3HWH6 Solid Divider Wall
MFG #D3HWH6
Product Description:
Panduct® solid divider wall, 3.00" nominal duct height, 6' length, PVC, white.
HESCO Part Number
PAND3HWH6
UPC
074983023226
Manufacturer Part Number
D3HWH6
Manufacturer
Panduit
$5.58 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Compatible Duct Height (In.) | : | 3 |
| Application | : | Wiring Duct Accessory - Solid Divider Wall |
| Product Type | : | Solid Divider Wall |
| Material | : | PVC |
| For Use With | : | PVC Wiring Duct |
| Flammability Rating | : | UL94 V-0 |
| Overall Width (mm) | : | 19 |
| Overall Length (m) | : | 1.83 |
| Sub Brand | : | Panduct® |
| Overall Width (In.) | : | 0.75 |
| Compatible Duct Height (mm) | : | 76.2 |
| Overall Height (mm) | : | 69.5 |
| Overall Length (ft.) | : | 6 |
| Overall Height (In.) | : | 2.74 |
| Note | : | For installation of the divider, must use part number DB-C |
| Color | : | White |
Packaging Details | ||
| UPC | : | 07498302322 |
| GTIN Package | : | 00074983023226 |
| Standard Package Volume Ft3 | : | 0.0673 |
| Standard Package Weight Pounds | : | 1.1298 |
| Std Package Height In | : | 3 |
| Std Package Height MM | : | 76.2 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 2 |
| Std Package Width MM | : | 50.8 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983023221 |
| Standard Carton Volume Ft3 | : | 1.3461 |
| Standard Carton Weight Pounds | : | 22.5960 |
| Std Carton Height In | : | 3.7 |
| Std Carton Height MM | : | 93.98 |
| Std Carton Length In | : | 73.2 |
| Std Carton Length MM | : | 1859.28 |
| Std Carton Width In | : | 8.7 |
| Std Carton Width MM | : | 220.98 |
| Std Ctn Qty | : | 120 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983023226 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 6.0000 |
| Pallet Quantity | : | 5,400 |
| Pallet Volume | : | 60.574208 |
| Pallet Weight | : | 1,016.8200 |
| RoHS Compliant | : | Compliant |
