Panduit
Panduct® D3X4WH6 Base Wiring Duct
MFG #D3X4WH6
$14.61 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
Product Description:

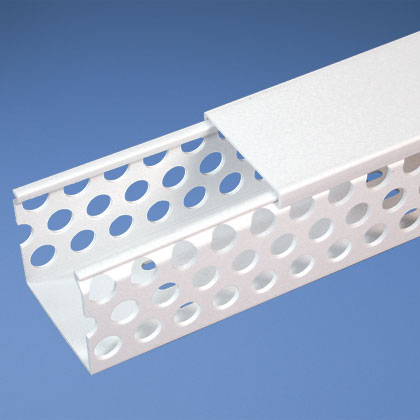

The D3X4WH6 Panduct Lead-Free PVC Round Hole Wiring Duct is designed with multiple rows of holes to retain and support wire at variable heights and positions. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 3" x 4" (76.2 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color White.
HESCO Part Number
PAND3X4WH6
UPC
074983213450
Manufacturer Part Number
D3X4WH6
Manufacturer
Panduit
Panduit
Panduct® D3X4WH6 Base Wiring Duct
MFG #D3X4WH6
Product Description:
The D3X4WH6 Panduct Lead-Free PVC Round Hole Wiring Duct is designed with multiple rows of holes to retain and support wire at variable heights and positions. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 3" x 4" (76.2 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color White.
HESCO Part Number
PAND3X4WH6
UPC
074983213450
Manufacturer Part Number
D3X4WH6
Manufacturer
Panduit
$14.61 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
Packaging Details
| UPC | : | 07498321345 |
| GTIN Package | : | 00074983213450 |
| Standard Package Volume Ft3 | : | 0.2774 |
| Standard Package Weight Pounds | : | 3.7380 |
| Std Package Height In | : | 4 |
| Std Package Height MM | : | 101.6 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 3 |
| Std Package Width MM | : | 76.2 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983213455 |
| Standard Carton Volume Ft3 | : | 2.7741 |
| Standard Carton Weight Pounds | : | 37.3800 |
| Std Carton Height In | : | 4.5 |
| Std Carton Height MM | : | 114.3 |
| Std Carton Length In | : | 73 |
| Std Carton Length MM | : | 1854.2 |
| Std Carton Width In | : | 19.2 |
| Std Carton Width MM | : | 487.68 |
| Std Ctn Qty | : | 60 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983213450 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 60.0000 |
| Pallet Quantity | : | 960 |
| Pallet Volume | : | 44.385059 |
| Pallet Weight | : | 598.0800 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Wiring Duct Style | : | Round Hole Wiring Duct |
| Overall Length (ft.) | : | 6 |
| Material | : | PVC |
| Includes | : | (1) Base |
| Measurement System | : | Imperial |
| Overall Height (In.) | : | 4.1 |
| Color | : | White |
| Overall Width (mm) | : | 82.6 |
| Product Type | : | Base Wiring Duct |
| Overall Width (In.) | : | 3.25 |
| Sub Brand | : | Panduct® |
| Overall Height (mm) | : | 104.1 |
| Mount Method | : | Mounting Holes |
| Overall Length (m) | : | 1.83 |
| Flammability Rating | : | UL94V-0 |
| Cover Part Number | : | C3WH6 |
| Application | : | Round hole design has multiple rows of holes to retain and support wire at variable heights and positions. |
| Material Properties | : | Lead-Free |
| Duct Dimensions (In.) | : | 3.25W x 4.1H |
| Nominal Width (In.) | : | 3 |
| Nominal Height (In.) | : | 4 |
