Panduct® D4X4LG6 Base Wiring Duct
MFG #D4X4LG6
$15.90 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
Product Description:

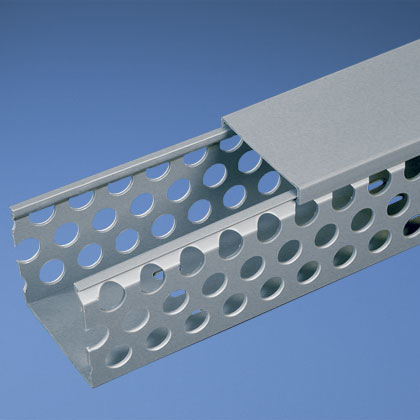

The D4X4LG6 Panduct Lead-Free PVC Round Hole Wiring Duct is designed with multiple rows of holes to retain and support wire at variable heights and positions. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 4" x 4" (101.6 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
HESCO Part Number
PAND4X4LG6
UPC
074983214006
Manufacturer Part Number
D4X4LG6
Manufacturer
Panduit
Panduct® D4X4LG6 Base Wiring Duct
MFG #D4X4LG6
Product Description:
The D4X4LG6 Panduct Lead-Free PVC Round Hole Wiring Duct is designed with multiple rows of holes to retain and support wire at variable heights and positions. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 4" x 4" (101.6 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
HESCO Part Number
PAND4X4LG6
UPC
074983214006
Manufacturer Part Number
D4X4LG6
Manufacturer
Panduit
$15.90 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
- No
Packaging Details
| UPC | : | 07498321400 |
| GTIN Package | : | 00074983214006 |
| Standard Package Volume Ft3 | : | 0.5476 |
| Standard Package Weight Pounds | : | 4.0116 |
| Std Package Height In | : | 4 |
| Std Package Height MM | : | 101.6 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 4 |
| Std Package Width MM | : | 101.6 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983214001 |
| Standard Carton Volume Ft3 | : | 5.4763 |
| Standard Carton Weight Pounds | : | 40.1160 |
| Std Carton Height In | : | 8.7 |
| Std Carton Height MM | : | 220.98 |
| Std Carton Length In | : | 72.9 |
| Std Carton Length MM | : | 1851.66 |
| Std Carton Width In | : | 14.6 |
| Std Carton Width MM | : | 370.84 |
| Std Ctn Qty | : | 60 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983214006 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 60.0000 |
| Pallet Quantity | : | 720 |
| Pallet Volume | : | 65.716041 |
| Pallet Weight | : | 481.3920 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Width (mm) | : | 108 |
| Color | : | Light Gray |
| Application | : | Round hole design has multiple rows of holes to retain and support wire at variable heights and positions. |
| Cover Part Number | : | C4LG6 |
| Overall Height (In.) | : | 4.1 |
| Measurement System | : | Imperial |
| Includes | : | Base Only |
| Mount Method | : | Mounting Holes |
| Overall Length (m) | : | 1.83 |
| Flammability Rating | : | UL94V-0 |
| Overall Length (ft.) | : | 6 |
| Material | : | PVC |
| Product Type | : | Base Wiring Duct |
| Wiring Duct Style | : | Round Hole Wiring Duct |
| Sub Brand | : | Panduct® |
| Overall Height (mm) | : | 104.1 |
| Overall Width (In.) | : | 4.25 |
| Material Properties | : | Lead-Free |
| Duct Dimensions (In.) | : | 4.25W x 4.1H |
