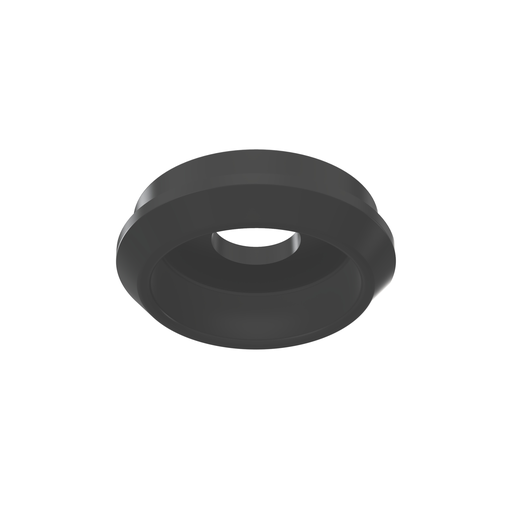

Panduct® DB-C Divider Wall Mounting Base, Black, PK100
MFG #DB-C
$0.35 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
The DB-C Panduct Divider Wall Mounting Base can be mounted inside any type of Panduit PVC wiring duct to create multiple channels. Simply install the divider wall base when mounting the duct and snap the divider wall onto the mounting base. Use Panduit NR1 or #8, #10, M4, or M5 fasteners. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Polycarbonate. 0.19" x .65" (4.8 mm x 16.5mm). Color Black. 100 piece package.
HESCO Part Number
PANDBC
UPC
074983348770
Manufacturer Part Number
DB-C
Manufacturer
Panduit
Panduct® DB-C Divider Wall Mounting Base, Black, PK100
MFG #DB-C
Product Description:
The DB-C Panduct Divider Wall Mounting Base can be mounted inside any type of Panduit PVC wiring duct to create multiple channels. Simply install the divider wall base when mounting the duct and snap the divider wall onto the mounting base. Use Panduit NR1 or #8, #10, M4, or M5 fasteners. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Polycarbonate. 0.19" x .65" (4.8 mm x 16.5mm). Color Black. 100 piece package.
HESCO Part Number
PANDBC
UPC
074983348770
Manufacturer Part Number
DB-C
Manufacturer
Panduit
$0.35 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL508/508A; RoHS Compliant
Packaging Details
| UPC | : | 07498334877 |
| GTIN Package | : | 00074983348770 |
| Standard Package Volume Ft3 | : | 0.0230 |
| Standard Package Weight Pounds | : | 0.2000 |
| Std Package Height In | : | 1 |
| Std Package Height MM | : | 25.4 |
| Std Package Length In | : | 5.45 |
| Std Package Length MM | : | 138.43 |
| Std Package Width In | : | 5 |
| Std Package Width MM | : | 127 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983348775 |
| Standard Carton Volume Ft3 | : | 0.2298 |
| Standard Carton Weight Pounds | : | 2.0000 |
| Std Carton Height In | : | 5.95 |
| Std Carton Height MM | : | 151.13 |
| Std Carton Length In | : | 8.5 |
| Std Carton Length MM | : | 215.9 |
| Std Carton Width In | : | 8.1 |
| Std Carton Width MM | : | 205.74 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983348770 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 200,000 |
| Pallet Volume | : | 45.956250 |
| Pallet Weight | : | 400.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Product Type | : | Duct Divider Wall Mounting Base |
| Screw Size | : | #8, #10, M4 or M5 |
| Note | : | Use for installation of the divider walls in any type of PVC wiring duct products for channel separation; Polycarbonate material |
| Application | : | Installation of Wiring Duct Divider Walls |
| Color | : | Black |
| Sub Brand | : | Panduct® |
| Flammability Rating | : | UL94 V-2 |
