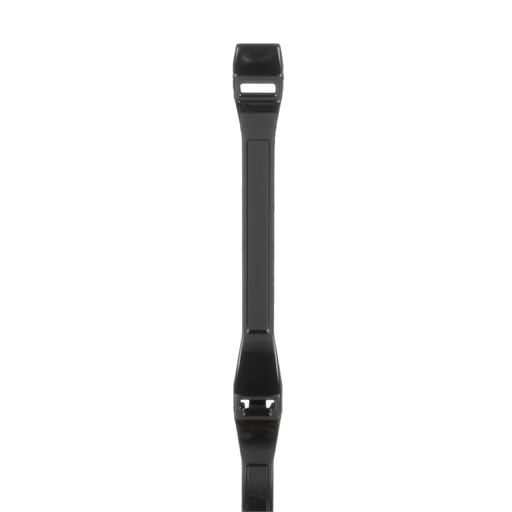

Pan-Ty® DHC1.12X1.75-D0 Cable Tie, Black, UV PA6.6, 11"L, 100lb, PK500
MFG #DHC1.12X1.75-D0
$1.50 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
Double hose clamp, holds and separates two gasoline, hydraulic, or pneumatic hoses, 11.0 (279mm) length, weather resistant nylon 6.6, black.
HESCO Part Number
PANDHC112X175D0
UPC
074983601011
Manufacturer Part Number
DHC1.12X1.75-D0
Manufacturer
Panduit
Pan-Ty® DHC1.12X1.75-D0 Cable Tie, Black, UV PA6.6, 11"L, 100lb, PK500
MFG #DHC1.12X1.75-D0
Product Description:
Double hose clamp, holds and separates two gasoline, hydraulic, or pneumatic hoses, 11.0 (279mm) length, weather resistant nylon 6.6, black.
HESCO Part Number
PANDHC112X175D0
UPC
074983601011
Manufacturer Part Number
DHC1.12X1.75-D0
Manufacturer
Panduit
$1.50 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL Listed #E56854, UL Recognized #E56854
Specifications
| Country of Origin | : | Costa Rica |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Operating Temperature (°C) | : | -60 |
| Maximum Bundle Diameter (mm) | : | 127 |
| Product Type | : | Premium Cable Tie |
| Body Width (mm) | : | 7.1 |
| Body Thickness (In.) | : | 0.05 |
| Body Thickness (mm) | : | 1.3 |
| Color | : | Black |
| Resistance Properties | : | UV-Resistant, Weather-Resistant |
| Minimum Installation Temperature (°F) | : | -4 |
| Material | : | Nylon 6.6 |
| Overall Length (mm) | : | 279 |
| Application | : | Greater resistance to damage caused by ultraviolet light – indoor or outdoor use |
| Maximum Operating Temperature (°F) | : | 185 |
| Body Width (In.) | : | 0.28 |
| Environment | : | Outdoor |
| Overall Length (In.) | : | 11 |
| Minimum Loop Tensile Strength (N) | : | 445 |
| Minimum Installation Temperature (°C) | : | -20 |
| Minimum Loop Tensile Strength (lb) | : | 100 |
| Minimum Operating Temperature (°F) | : | -76 |
| Maximum Operating Temperature (°C) | : | 85 |
Packaging Details | ||
| UPC | : | 07498360101 |
| GTIN Package | : | 00074983601011 |
| Standard Package Volume Ft3 | : | 0.3589 |
| Standard Package Weight Pounds | : | 4.4000 |
| Std Package Height In | : | 2.3 |
| Std Package Height MM | : | 58.42 |
| Std Package Length In | : | 13 |
| Std Package Length MM | : | 330.2 |
| Std Package Width In | : | 12 |
| Std Package Width MM | : | 304.8 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 500 |
| GTIN Carton | : | 50074983601016 |
| Standard Carton Volume Ft3 | : | 1.7943 |
| Standard Carton Weight Pounds | : | 22.0000 |
| Std Carton Height In | : | 12.91 |
| Std Carton Height MM | : | 327.914 |
| Std Carton Length In | : | 22.96 |
| Std Carton Length MM | : | 583.184 |
| Std Carton Width In | : | 10.46 |
| Std Carton Width MM | : | 265.684 |
| Std Ctn Qty | : | 2500 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983601011 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 60,000 |
| Pallet Volume | : | 43.062309 |
| Pallet Weight | : | 528.0000 |
| RoHS Compliant | : | Compliant |
