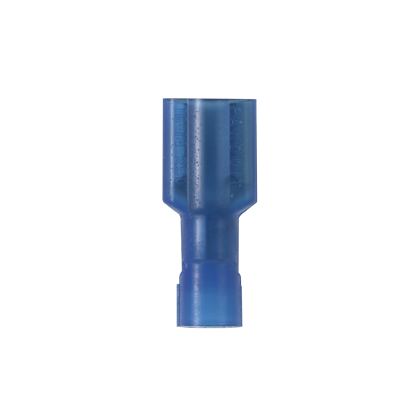

Pan-Term® DNF14-188FIB-C Loose Piece Disconnect
MFG #DNF14-188FIB-C
$1.15 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.187 x 0.020" (4.8 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
HESCO Part Number
PANDNF14188FIBC
UPC
074983759811
Manufacturer Part Number
DNF14-188FIB-C
Manufacturer
Panduit
Pan-Term® DNF14-188FIB-C Loose Piece Disconnect
MFG #DNF14-188FIB-C
Product Description:
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.187 x 0.020" (4.8 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
HESCO Part Number
PANDNF14188FIBC
UPC
074983759811
Manufacturer Part Number
DNF14-188FIB-C
Manufacturer
Panduit
$1.15 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- No
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Insulation Type | : | Fully Insulated |
| Maximum Wire Insulation Diameter (mm) | : | 4.1 |
| Minimum Metric Conductor Size (mm²) | : | 1.5 |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Finish/Coating | : | Tin-Plated |
| Packaging Type | : | Bottle |
| Wire Strip Length (In.) | : | 9/32 |
| For Use With | : | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Base Material | : | Brass |
| Insulation Diameter (In.) | : | 0.16 |
| Tab Size (mm) | : | 4.8 x 0.5 |
| Insulation Material | : | Nylon |
| Seam Type | : | Butted |
| Sub Brand | : | Pan-Term® |
| Product Type | : | Disconnect |
| Wire Strip Length (mm) | : | 7.1 |
| Tongue Angle | : | Straight |
| Maximum Operating Temperature (°C) | : | 105 |
| Tab Size (In.) | : | 0.187 x 0.020 |
| Insulation Diameter (mm) | : | 4.1 |
| Disconnect Type | : | Female Disconnect |
| Maximum Operating Temperature (°F) | : | 221 |
| Maximum Voltage (kV) | : | 0.6 |
| Overall Length (mm) | : | 19.8 |
| Flammability Rating | : | UL94-HB |
| Maximum Voltage (V) | : | 600 |
| Overall Length (In.) | : | 0.78 |
| Overall Width (mm) | : | 7.4 |
| Maximum Wire Insulation Diameter (In.) | : | 0.16 |
| Color Code | : | Blue |
| Overall Width (In.) | : | 0.29 |
| Barrel Type | : | Funnel Entry |
| Copper Conductor Size | : | 16-14 AWG |
| Wire Size | : | 16-14 AWG |
Packaging Details | ||
| UPC | : | 07498375981 |
| GTIN Package | : | 00074983759811 |
| Standard Package Volume Ft3 | : | 0.0063 |
| Standard Package Weight Pounds | : | 0.2300 |
| Std Package Height In | : | 1.9 |
| Std Package Height MM | : | 48.26 |
| Std Package Length In | : | 4.3 |
| Std Package Length MM | : | 109.22 |
| Std Package Width In | : | 1.9 |
| Std Package Width MM | : | 48.26 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983759816 |
| Standard Carton Volume Ft3 | : | 0.0626 |
| Standard Carton Weight Pounds | : | 2.3000 |
| Std Carton Height In | : | 4.4 |
| Std Carton Height MM | : | 111.76 |
| Std Carton Length In | : | 10.25 |
| Std Carton Length MM | : | 260.35 |
| Std Carton Width In | : | 4.2 |
| Std Carton Width MM | : | 106.68 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983759811 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | Y |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- No
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Insulation Type : Fully Insulated Maximum Wire Insulation Diameter (mm) : 4.1 Minimum Metric Conductor Size (mm²) : 1.5 Maximum Metric Conductor Size (mm²) : 2.5 Finish/Coating : Tin-Plated Packaging Type : Bottle Wire Strip Length (In.) : 9/32 For Use With : CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) Base Material : Brass Insulation Diameter (In.) : 0.16 Tab Size (mm) : 4.8 x 0.5 Insulation Material : Nylon Seam Type : Butted Sub Brand : Pan-Term® Product Type : Disconnect Wire Strip Length (mm) : 7.1 Tongue Angle : Straight Maximum Operating Temperature (°C) : 105 Tab Size (In.) : 0.187 x 0.020 Insulation Diameter (mm) : 4.1 Disconnect Type : Female Disconnect Maximum Operating Temperature (°F) : 221 Maximum Voltage (kV) : 0.6 Overall Length (mm) : 19.8 Flammability Rating : UL94-HB Maximum Voltage (V) : 600 Overall Length (In.) : 0.78 Overall Width (mm) : 7.4 Maximum Wire Insulation Diameter (In.) : 0.16 Color Code : Blue Overall Width (In.) : 0.29 Barrel Type : Funnel Entry Copper Conductor Size : 16-14 AWG Wire Size : 16-14 AWG Packaging Details
UPC : 07498375981 GTIN Package : 00074983759811 Standard Package Volume Ft3 : 0.0063 Standard Package Weight Pounds : 0.2300 Std Package Height In : 1.9 Std Package Height MM : 48.26 Std Package Length In : 4.3 Std Package Length MM : 109.22 Std Package Width In : 1.9 Std Package Width MM : 48.26 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 100 GTIN Carton : 50074983759816 Standard Carton Volume Ft3 : 0.0626 Standard Carton Weight Pounds : 2.3000 Std Carton Height In : 4.4 Std Carton Height MM : 111.76 Std Carton Length In : 10.25 Std Carton Length MM : 260.35 Std Carton Width In : 4.2 Std Carton Width MM : 106.68 Std Ctn Qty : 1000 Min. Order UOM : Piece EAN : 00074983759811 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : Y Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 100.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Selection Guides
Selection Guides 1Selection Guides 2
Part DrawingsPart Drawings 1
