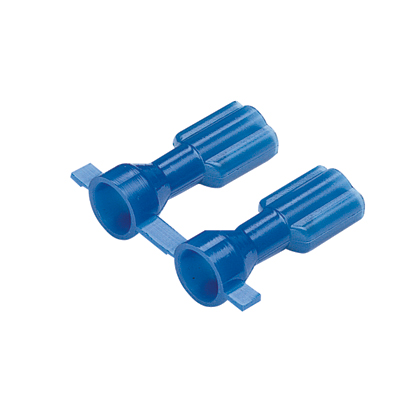

Reel Smart™ DNF14206FIBX-2K Disconnects on a Reel
MFG #DNF14206FIBX-2K
$0.44 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon standard receptacle housing and has an expanded wire entry for wires with large diameters. It has a tab size of 0.187/0.205 x 0.020" (4.8/5.2 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.87" (22.1 mm) long and 0.31" (7.9 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel. It comes in boxes of 1000. It comes in reels of 2000 pieces.
HESCO Part Number
PANDNF14206FIBX2K
UPC
074983827794
Manufacturer Part Number
DNF14206FIBX-2K
Manufacturer
Panduit
Reel Smart™ DNF14206FIBX-2K Disconnects on a Reel
MFG #DNF14206FIBX-2K
Product Description:
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon standard receptacle housing and has an expanded wire entry for wires with large diameters. It has a tab size of 0.187/0.205 x 0.020" (4.8/5.2 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.87" (22.1 mm) long and 0.31" (7.9 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel. It comes in boxes of 1000. It comes in reels of 2000 pieces.
HESCO Part Number
PANDNF14206FIBX2K
UPC
074983827794
Manufacturer Part Number
DNF14206FIBX-2K
Manufacturer
Panduit
$0.44 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Color Code | : | Blue |
| Product Type | : | Disconnect |
| Packaging Type | : | Reel |
| Barrel Type | : | Expanded Entry |
| Insulation Material | : | Nylon |
| Tab Size (In.) | : | 0.205/0.187 x 0.020 |
| Flammability Rating | : | UL94-HB |
| Insulation Diameter (mm) | : | 6.1 |
| Insulation Diameter (In.) | : | 0.24 |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Overall Width (mm) | : | 7.9 |
| Disconnect Type | : | Female Disconnect |
| Wire Strip Length (In.) | : | 9/32 |
| Finish/Coating | : | Nickel-Plated |
| Base Material | : | Brass |
| Maximum Voltage (kV) | : | 0.6 |
| Sub Brand | : | Reel Smart™ |
| Overall Length (mm) | : | 22.1 |
| Seam Type | : | Butted |
| Tab Size (mm) | : | 5.2/4.8 x 0.5 |
| Overall Width (In.) | : | 0.31 |
| Maximum Operating Temperature (°F) | : | 221 |
| Maximum Voltage (V) | : | 600 |
| Wire Strip Length (mm) | : | 7.1 |
| Maximum Operating Temperature (°C) | : | 105 |
| Maximum Wire Insulation Diameter (mm) | : | 6.1 |
| Overall Length (In.) | : | 0.87 |
| Maximum Wire Insulation Diameter (In.) | : | 0.24 |
| For Use With | : | Crimp press with CA9 (CD9-8B) or CA-800EZ (CD-800-8) applicator |
| Insulation Type | : | Fully Insulated |
| Tongue Angle | : | Straight |
| Minimum Metric Conductor Size (mm²) | : | 1.5 |
| Copper Conductor Size | : | 16-14 AWG |
| Wire Size | : | 16-14 AWG |
Packaging Details | ||
| UPC | : | 07498382779 |
| GTIN Package | : | 00074983827794 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 7.6000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983827794 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 32,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 121.6000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Color Code : Blue Product Type : Disconnect Packaging Type : Reel Barrel Type : Expanded Entry Insulation Material : Nylon Tab Size (In.) : 0.205/0.187 x 0.020 Flammability Rating : UL94-HB Insulation Diameter (mm) : 6.1 Insulation Diameter (In.) : 0.24 Maximum Metric Conductor Size (mm²) : 2.5 Overall Width (mm) : 7.9 Disconnect Type : Female Disconnect Wire Strip Length (In.) : 9/32 Finish/Coating : Nickel-Plated Base Material : Brass Maximum Voltage (kV) : 0.6 Sub Brand : Reel Smart™ Overall Length (mm) : 22.1 Seam Type : Butted Tab Size (mm) : 5.2/4.8 x 0.5 Overall Width (In.) : 0.31 Maximum Operating Temperature (°F) : 221 Maximum Voltage (V) : 600 Wire Strip Length (mm) : 7.1 Maximum Operating Temperature (°C) : 105 Maximum Wire Insulation Diameter (mm) : 6.1 Overall Length (In.) : 0.87 Maximum Wire Insulation Diameter (In.) : 0.24 For Use With : Crimp press with CA9 (CD9-8B) or CA-800EZ (CD-800-8) applicator Insulation Type : Fully Insulated Tongue Angle : Straight Minimum Metric Conductor Size (mm²) : 1.5 Copper Conductor Size : 16-14 AWG Wire Size : 16-14 AWG Packaging Details
UPC : 07498382779 GTIN Package : 00074983827794 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 7.6000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 2000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983827794 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 2,000.0000 Pallet Quantity : 32,000 Pallet Volume : 0.000000 Pallet Weight : 121.6000 RoHS Compliant : Compliant - Part Drawings
Part Drawings 1
Selection GuidesSelection Guides 1
