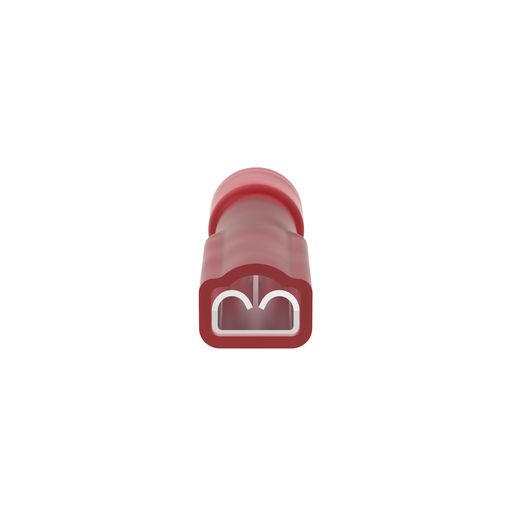

Reel Smart™ DNF18-111FIB-3K Disconnects, Red, Nylon, 18-22 AWG, .110 x .020" Tab
MFG #DNF18-111FIB-3K
$0.39 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
Product Description:
Disc,F,RdNy,.110x.02",22-18AWG,BS,1000
HESCO Part Number
PANDNF18111FIB3K
UPC
074983826803
Manufacturer Part Number
DNF18-111FIB-3K
Manufacturer
Panduit
Reel Smart™ DNF18-111FIB-3K Disconnects, Red, Nylon, 18-22 AWG, .110 x .020" Tab
MFG #DNF18-111FIB-3K
Product Description:
Disc,F,RdNy,.110x.02",22-18AWG,BS,1000
HESCO Part Number
PANDNF18111FIB3K
UPC
074983826803
Manufacturer Part Number
DNF18-111FIB-3K
Manufacturer
Panduit
$0.39 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL 310, CSA 22.2 No.153
Packaging Details
| UPC | : | 07498382680 |
| GTIN Package | : | 00074983826803 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 6.0000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 3000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983826803 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 3,000.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 96.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Product Type | : | Disconnect |
| Maximum Voltage (kV) | : | 0.6 |
| Color Code | : | Red |
| Insulation Type | : | Fully Insulated |
| Maximum Wire Insulation Diameter (In.) | : | 0.12 |
| Maximum Voltage (V) | : | 600 |
| Overall Height (mm) | : | 3.8 |
| For Use With | : | Crimp press with CA9 (CD9-7A) or CA-800EZ (CD-800-7) applicator |
| Overall Height (In.) | : | 0.15 |
| Overall Width (In.) | : | 0.19 |
| Tongue Angle | : | Straight |
| Maximum Metric Conductor Size (mm²) | : | 1 |
| Barrel Type | : | Funnel Entry |
| Overall Length (mm) | : | 18 |
| Maximum Wire Insulation Diameter (mm) | : | 3 |
| Wire Strip Length (mm) | : | 5.6 |
| Finish/Coating | : | Tin-Plated |
| Flammability Rating | : | UL94-HB |
| Overall Width (mm) | : | 4.8 |
| Tab Size (mm) | : | 2.8 x 0.5 |
| Wire Strip Length (In.) | : | 7/32 |
| Packaging Type | : | Reel |
| Base Material | : | Brass |
| Maximum Operating Temperature (°C) | : | 105 |
| Overall Length (In.) | : | 0.71 |
| Minimum Metric Conductor Size (mm²) | : | 0.5 |
| Sub Brand | : | Reel Smart™ |
| Disconnect Type | : | Female Disconnect |
| Insulation Material | : | Nylon |
| Maximum Operating Temperature (°F) | : | 221 |
| Tab Size (In.) | : | 0.110 x 0.020 |
| Copper Conductor Size | : | 18 AWG |
| Wire Size | : | 22-18 AWG |
Videos 1
- Standards Met: UL 310, CSA 22.2 No.153
Packaging Details
UPC : 07498382680 GTIN Package : 00074983826803 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 6.0000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 3000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983826803 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 3,000.0000 Pallet Quantity : 48,000 Pallet Volume : 0.000000 Pallet Weight : 96.0000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Product Type : Disconnect Maximum Voltage (kV) : 0.6 Color Code : Red Insulation Type : Fully Insulated Maximum Wire Insulation Diameter (In.) : 0.12 Maximum Voltage (V) : 600 Overall Height (mm) : 3.8 For Use With : Crimp press with CA9 (CD9-7A) or CA-800EZ (CD-800-7) applicator Overall Height (In.) : 0.15 Overall Width (In.) : 0.19 Tongue Angle : Straight Maximum Metric Conductor Size (mm²) : 1 Barrel Type : Funnel Entry Overall Length (mm) : 18 Maximum Wire Insulation Diameter (mm) : 3 Wire Strip Length (mm) : 5.6 Finish/Coating : Tin-Plated Flammability Rating : UL94-HB Overall Width (mm) : 4.8 Tab Size (mm) : 2.8 x 0.5 Wire Strip Length (In.) : 7/32 Packaging Type : Reel Base Material : Brass Maximum Operating Temperature (°C) : 105 Overall Length (In.) : 0.71 Minimum Metric Conductor Size (mm²) : 0.5 Sub Brand : Reel Smart™ Disconnect Type : Female Disconnect Insulation Material : Nylon Maximum Operating Temperature (°F) : 221 Tab Size (In.) : 0.110 x 0.020 Copper Conductor Size : 18 AWG Wire Size : 22-18 AWG - Part Drawings
Part Drawings 1
