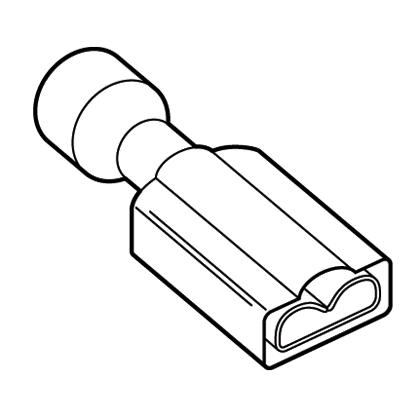

Pan-Term® DNF18250FIBX-L Loose Piece Disconnect
MFG #DNF18250FIBX-L
$1.36 / E
(Must order in increments of 250/E)
(Must order in increments of 250/E)
Product Description:
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon standard receptacle housing with an expanded wire entry area for wires with large outside diameters. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.93" (23.6 mm) long and 0.35" (8.9 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel. It comes in bottles of 50.
HESCO Part Number
PANDNF18250FIBXL
UPC
074983119929
Manufacturer Part Number
DNF18250FIBX-L
Manufacturer
Panduit
Pan-Term® DNF18250FIBX-L Loose Piece Disconnect
MFG #DNF18250FIBX-L
Product Description:
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon standard receptacle housing with an expanded wire entry area for wires with large outside diameters. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.93" (23.6 mm) long and 0.35" (8.9 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel. It comes in bottles of 50.
HESCO Part Number
PANDNF18250FIBXL
UPC
074983119929
Manufacturer Part Number
DNF18250FIBX-L
Manufacturer
Panduit
$1.36 / E
(Must order in increments of 250/E)
(Must order in increments of 250/E)
- Features
- Specifications
- Resources
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Product Type | : | Disconnect |
| Disconnect Type | : | Female Disconnect |
| Minimum Metric Conductor Size (mm²) | : | 0.5 |
| Insulation Material | : | Nylon |
| Maximum Voltage (V) | : | 600 |
| Overall Width (In.) | : | 0.35 |
| Seam Type | : | Butted |
| Color Code | : | Red |
| Wire Strip Length (In.) | : | 9/32 |
| Wire Strip Length (mm) | : | 7.1 |
| Tongue Angle | : | Straight |
| Maximum Wire Insulation Diameter (mm) | : | 5.3 |
| Maximum Voltage (kV) | : | 0.6 |
| Maximum Operating Temperature (°F) | : | 221 |
| Barrel Type | : | Expanded Entry |
| Maximum Wire Insulation Diameter (In.) | : | 0.21 |
| Insulation Diameter (In.) | : | 0.21 |
| Maximum Operating Temperature (°C) | : | 105 |
| Insulation Type | : | Fully Insulated |
| Flammability Rating | : | UL94-HB |
| Tab Size (mm) | : | 6.3 x 0.8 |
| Packaging Type | : | Bottle |
| Overall Length (mm) | : | 23.6 |
| Finish/Coating | : | Tin-Plated |
| Overall Width (mm) | : | 8.9 |
| Overall Length (In.) | : | 0.93 |
| For Use With | : | CT-100 |
| Maximum Metric Conductor Size (mm²) | : | 1 |
| Base Material | : | Brass |
| Tab Size (In.) | : | 0.250 x 0.032 |
| Insulation Diameter (mm) | : | 5.3 |
| Sub Brand | : | Pan-Term® |
| Copper Conductor Size | : | 22-18 AWG |
| Wire Size | : | 22-18 AWG |
Packaging Details | ||
| UPC | : | 07498311992 |
| GTIN Package | : | 00074983119929 |
| Standard Package Volume Ft3 | : | 0.0090 |
| Standard Package Weight Pounds | : | 0.1800 |
| Std Package Height In | : | 1.9 |
| Std Package Height MM | : | 48.26 |
| Std Package Length In | : | 4.3 |
| Std Package Length MM | : | 109.22 |
| Std Package Width In | : | 1.95 |
| Std Package Width MM | : | 49.53 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| GTIN Carton | : | 50074983119924 |
| Standard Carton Volume Ft3 | : | 0.0451 |
| Standard Carton Weight Pounds | : | 0.9000 |
| Std Carton Height In | : | 4.35 |
| Std Carton Height MM | : | 110.49 |
| Std Carton Length In | : | 10 |
| Std Carton Length MM | : | 254 |
| Std Carton Width In | : | 2.35 |
| Std Carton Width MM | : | 59.69 |
| Std Ctn Qty | : | 250 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983119929 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 250.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Product Type : Disconnect Disconnect Type : Female Disconnect Minimum Metric Conductor Size (mm²) : 0.5 Insulation Material : Nylon Maximum Voltage (V) : 600 Overall Width (In.) : 0.35 Seam Type : Butted Color Code : Red Wire Strip Length (In.) : 9/32 Wire Strip Length (mm) : 7.1 Tongue Angle : Straight Maximum Wire Insulation Diameter (mm) : 5.3 Maximum Voltage (kV) : 0.6 Maximum Operating Temperature (°F) : 221 Barrel Type : Expanded Entry Maximum Wire Insulation Diameter (In.) : 0.21 Insulation Diameter (In.) : 0.21 Maximum Operating Temperature (°C) : 105 Insulation Type : Fully Insulated Flammability Rating : UL94-HB Tab Size (mm) : 6.3 x 0.8 Packaging Type : Bottle Overall Length (mm) : 23.6 Finish/Coating : Tin-Plated Overall Width (mm) : 8.9 Overall Length (In.) : 0.93 For Use With : CT-100 Maximum Metric Conductor Size (mm²) : 1 Base Material : Brass Tab Size (In.) : 0.250 x 0.032 Insulation Diameter (mm) : 5.3 Sub Brand : Pan-Term® Copper Conductor Size : 22-18 AWG Wire Size : 22-18 AWG Packaging Details
UPC : 07498311992 GTIN Package : 00074983119929 Standard Package Volume Ft3 : 0.0090 Standard Package Weight Pounds : 0.1800 Std Package Height In : 1.9 Std Package Height MM : 48.26 Std Package Length In : 4.3 Std Package Length MM : 109.22 Std Package Width In : 1.95 Std Package Width MM : 49.53 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 GTIN Carton : 50074983119924 Standard Carton Volume Ft3 : 0.0451 Standard Carton Weight Pounds : 0.9000 Std Carton Height In : 4.35 Std Carton Height MM : 110.49 Std Carton Length In : 10 Std Carton Length MM : 254 Std Carton Width In : 2.35 Std Carton Width MM : 59.69 Std Ctn Qty : 250 Min. Order UOM : Piece EAN : 00074983119929 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 250.0000 Pallet Quantity : 0 Pallet Volume : 0.000000 Pallet Weight : 0.0000 RoHS Compliant : Compliant - Part Drawings
