Reel Smart™ DNF18250FIMX-2K Disconnects on a Reel
MFG #DNF18250FIMX-2K
$0.65 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:

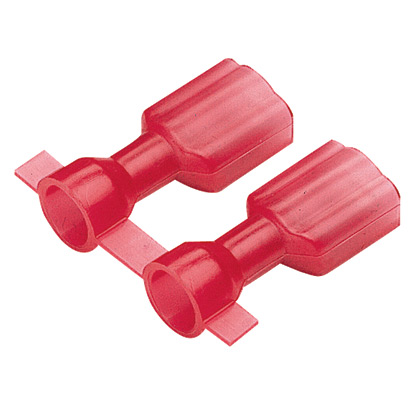

The vibration resistant male tab disconnect is made of brass and is nickel-plated. It is fully insulated in a red, nylon standard housing and has an expanded wire entry area. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.97" (24.6 mm) long and 0.41" (10.4 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel. It comes in reels of 2000 pieces.
HESCO Part Number
PANDNF18250FIMX2K
UPC
074983343430
Manufacturer Part Number
DNF18250FIMX-2K
Manufacturer
Panduit
Reel Smart™ DNF18250FIMX-2K Disconnects on a Reel
MFG #DNF18250FIMX-2K
Product Description:
The vibration resistant male tab disconnect is made of brass and is nickel-plated. It is fully insulated in a red, nylon standard housing and has an expanded wire entry area. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.97" (24.6 mm) long and 0.41" (10.4 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel. It comes in reels of 2000 pieces.
HESCO Part Number
PANDNF18250FIMX2K
UPC
074983343430
Manufacturer Part Number
DNF18250FIMX-2K
Manufacturer
Panduit
$0.65 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Specifications
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Tab Size (mm) | : | 6.3 x 0.8 |
| Insulation Diameter (mm) | : | 6.2 |
| Product Type | : | Disconnect |
| Insulation Diameter (In.) | : | 0.24 |
| Packaging Type | : | Reel |
| Color Code | : | Red |
| Maximum Operating Temperature (°C) | : | 105 |
| For Use With | : | Crimp press with CA9 (CD9-8B) or CA-800EZ (CD-800-8) applicator |
| Overall Width (In.) | : | 0.41 |
| Base Material | : | Brass |
| Maximum Voltage (V) | : | 600 |
| Tab Size (In.) | : | 0.250 x 0.032 |
| Insulation Material | : | Nylon |
| Sub Brand | : | Reel Smart™ |
| Overall Length (In.) | : | 0.97 |
| Maximum Operating Temperature (°F) | : | 221 |
| Minimum Metric Conductor Size (mm²) | : | 0.5 |
| Disconnect Type | : | Male Tab Disconnect |
| Maximum Wire Insulation Diameter (In.) | : | 0.244 |
| Overall Width (mm) | : | 10.4 |
| Maximum Wire Insulation Diameter (mm) | : | 6.2 |
| Maximum Metric Conductor Size (mm²) | : | 1 |
| Flammability Rating | : | UL94-HB |
| Wire Strip Length (mm) | : | 7.1 |
| Barrel Type | : | Expanded Entry |
| Seam Type | : | Butted |
| Insulation Type | : | Fully Insulated |
| Overall Length (mm) | : | 24.6 |
| Maximum Voltage (kV) | : | 0.6 |
| Finish/Coating | : | Nickel-Plated |
| Wire Strip Length (In.) | : | 9/32 |
| Tongue Angle | : | Straight |
| Wire Size | : | 22-18 AWG |
| Copper Conductor Size | : | 22-18 AWG |
Packaging Details | ||
| UPC | : | 07498334343 |
| GTIN Package | : | 00074983343430 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 8.4000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983343430 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 32,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 134.4000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Tab Size (mm) : 6.3 x 0.8 Insulation Diameter (mm) : 6.2 Product Type : Disconnect Insulation Diameter (In.) : 0.24 Packaging Type : Reel Color Code : Red Maximum Operating Temperature (°C) : 105 For Use With : Crimp press with CA9 (CD9-8B) or CA-800EZ (CD-800-8) applicator Overall Width (In.) : 0.41 Base Material : Brass Maximum Voltage (V) : 600 Tab Size (In.) : 0.250 x 0.032 Insulation Material : Nylon Sub Brand : Reel Smart™ Overall Length (In.) : 0.97 Maximum Operating Temperature (°F) : 221 Minimum Metric Conductor Size (mm²) : 0.5 Disconnect Type : Male Tab Disconnect Maximum Wire Insulation Diameter (In.) : 0.244 Overall Width (mm) : 10.4 Maximum Wire Insulation Diameter (mm) : 6.2 Maximum Metric Conductor Size (mm²) : 1 Flammability Rating : UL94-HB Wire Strip Length (mm) : 7.1 Barrel Type : Expanded Entry Seam Type : Butted Insulation Type : Fully Insulated Overall Length (mm) : 24.6 Maximum Voltage (kV) : 0.6 Finish/Coating : Nickel-Plated Wire Strip Length (In.) : 9/32 Tongue Angle : Straight Wire Size : 22-18 AWG Copper Conductor Size : 22-18 AWG Packaging Details
UPC : 07498334343 GTIN Package : 00074983343430 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 8.4000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 2000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983343430 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 2,000.0000 Pallet Quantity : 32,000 Pallet Volume : 0.000000 Pallet Weight : 134.4000 RoHS Compliant : Compliant - Part Drawings
