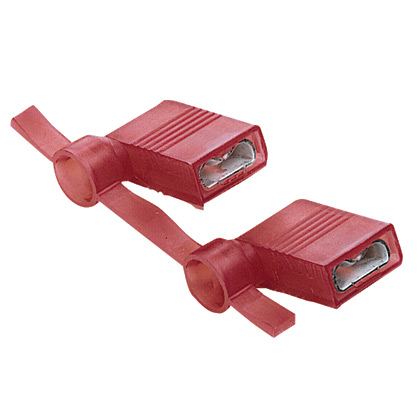

Reel Smart™ DNFR18206FIB-KD Disconnect, Red, Nylon, 18-22 AWG, .205/.187 x .02"
MFG #DNFR18206FIB-KD
$0.58 / E
(Must order in increments of 1500/E)
(Must order in increments of 1500/E)
Product Description:
Dis,F,RA,,RdNy,.205x.02",22-18AWG,1500
HESCO Part Number
PANDNFR18206FIBKD
UPC
074983789597
Manufacturer Part Number
DNFR18206FIB-KD
Manufacturer
Panduit
Reel Smart™ DNFR18206FIB-KD Disconnect, Red, Nylon, 18-22 AWG, .205/.187 x .02"
MFG #DNFR18206FIB-KD
Product Description:
Dis,F,RA,,RdNy,.205x.02",22-18AWG,1500
HESCO Part Number
PANDNFR18206FIBKD
UPC
074983789597
Manufacturer Part Number
DNFR18206FIB-KD
Manufacturer
Panduit
$0.58 / E
(Must order in increments of 1500/E)
(Must order in increments of 1500/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL 310, CSA 22.2 No.153
Packaging Details
| UPC | : | 07498378959 |
| GTIN Package | : | 00074983789597 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 8.2500 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1500 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983789597 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,500.0000 |
| Pallet Quantity | : | 24,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 132.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Height (mm) | : | 5.3 |
| Overall Length (In.) | : | 0.6 |
| Insulation Material | : | Nylon |
| Overall Width (mm) | : | 15.2 |
| Wire Strip Length (In.) | : | 11/32 |
| Maximum Wire Insulation Diameter (In.) | : | 0.18 |
| Overall Width (In.) | : | 0.6 |
| Maximum Wire Insulation Diameter (mm) | : | 4.5 |
| Sub Brand | : | Reel Smart™ |
| Minimum Metric Conductor Size (mm²) | : | 0.5 |
| Base Material | : | Brass |
| Maximum Operating Temperature (°F) | : | 221 |
| Packaging Type | : | Reel |
| Product Type | : | Disconnect |
| Tongue Angle | : | Right Angle |
| Maximum Voltage (V) | : | 600 |
| Wire Strip Length (mm) | : | 8.7 |
| Color Code | : | Red |
| Overall Height (In.) | : | 0.21 |
| For Use With | : | Crimp press with CA9 (CD9-9C) or CA-800EZ (CD-800-9) applicator |
| Maximum Voltage (kV) | : | 0.6 |
| Overall Length (mm) | : | 15.2 |
| Tab Size (In.) | : | 0.205/0.187 x 0.020 |
| Maximum Operating Temperature (°C) | : | 105 |
| Flammability Rating | : | UL94-HB |
| Barrel Type | : | Funnel Entry |
| Finish/Coating | : | Tin-Plated |
| Tab Size (mm) | : | 5.2/4.8 x 0.5 |
| Disconnect Type | : | Female Disconnect-Right Angle |
| Maximum Metric Conductor Size (mm²) | : | 1 |
| Insulation Type | : | Fully Insulated |
| Wire Size | : | 22-18 AWG |
| Copper Conductor Size | : | 18 AWG |
