Supra-Grip™ DNG18-187FB-3K Disconnects, Red, Vinyl, 18-22 AWG, 0.19" Tab, PK3000
MFG #DNG18-187FB-3K
$0.47 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
Product Description:

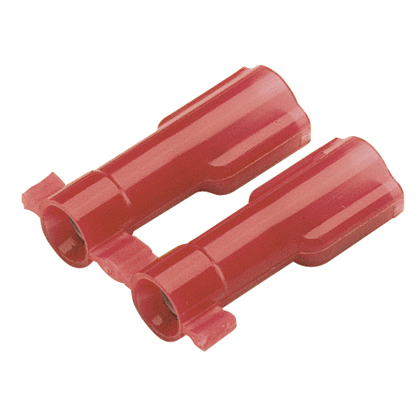

The Supra-Grip™ female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.187 x 0.032 (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.89" (22.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip. It comes in reels of 3000 pieces.
HESCO Part Number
PANDNG18187FB3K
UPC
074983687404
Manufacturer Part Number
DNG18-187FB-3K
Manufacturer
Panduit
Supra-Grip™ DNG18-187FB-3K Disconnects, Red, Vinyl, 18-22 AWG, 0.19" Tab, PK3000
MFG #DNG18-187FB-3K
Product Description:
The Supra-Grip™ female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.187 x 0.032 (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.89" (22.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a double crimp funnel entry barrel configuration and a butted seam barrel with an integrated metal insulation grip. It comes in reels of 3000 pieces.
HESCO Part Number
PANDNG18187FB3K
UPC
074983687404
Manufacturer Part Number
DNG18-187FB-3K
Manufacturer
Panduit
$0.47 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
- Features
- Specifications
- Resources
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Packaging Details
| UPC | : | 07498368740 |
| GTIN Package | : | 00074983687404 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 9.9000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 3000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983687404 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 3,000.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 158.4000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Sub Brand | : | Supra-Grip® |
| Maximum Metric Conductor Size (mm²) | : | 1 |
| Finish/Coating | : | Tin-Plated |
| Maximum Voltage (kV) | : | 0.6 |
| Overall Width (mm) | : | 7.4 |
| Overall Length (mm) | : | 22.6 |
| Product Type | : | Disconnect |
| Tab Size (In.) | : | 0.187 x 0.032 |
| For Use With | : | Crimp press with CA9 (CD9-15A) or CA-800EZ (CD-800-15) applicator |
| Color Code | : | Red |
| Seam Type | : | Butted |
| Maximum Operating Temperature (°C) | : | 105 |
| Insulation Diameter (In.) | : | 0.13 |
| Wire Strip Length (mm) | : | 7.1 |
| Tongue Angle | : | Straight |
| Barrel Type | : | Funnel Entry |
| Tab Size (mm) | : | 4.8 x 0.8 |
| Maximum Operating Temperature (°F) | : | 221 |
| Overall Width (In.) | : | 0.29 |
| Flammability Rating | : | UL94-HB |
| Maximum Voltage (V) | : | 600 |
| Disconnect Type | : | Female Disconnect-Supra Grip |
| Minimum Metric Conductor Size (mm²) | : | 0.5 |
| Wire Strip Length (In.) | : | 9/32 |
| Base Material | : | Brass |
| Packaging Type | : | Reel |
| Insulation Diameter (mm) | : | 3.3 |
| Maximum Wire Insulation Diameter (In.) | : | 0.13 |
| Insulation Type | : | Fully Insulated |
| Maximum Wire Insulation Diameter (mm) | : | 3.2 |
| Insulation Material | : | Nylon |
| Overall Length (In.) | : | 0.89 |
| Copper Conductor Size | : | 22-18 AWG |
| Wire Size | : | 22-18 AWG |
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Packaging Details
UPC : 07498368740 GTIN Package : 00074983687404 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 9.9000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 3000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983687404 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 3,000.0000 Pallet Quantity : 48,000 Pallet Volume : 0.000000 Pallet Weight : 158.4000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Sub Brand : Supra-Grip® Maximum Metric Conductor Size (mm²) : 1 Finish/Coating : Tin-Plated Maximum Voltage (kV) : 0.6 Overall Width (mm) : 7.4 Overall Length (mm) : 22.6 Product Type : Disconnect Tab Size (In.) : 0.187 x 0.032 For Use With : Crimp press with CA9 (CD9-15A) or CA-800EZ (CD-800-15) applicator Color Code : Red Seam Type : Butted Maximum Operating Temperature (°C) : 105 Insulation Diameter (In.) : 0.13 Wire Strip Length (mm) : 7.1 Tongue Angle : Straight Barrel Type : Funnel Entry Tab Size (mm) : 4.8 x 0.8 Maximum Operating Temperature (°F) : 221 Overall Width (In.) : 0.29 Flammability Rating : UL94-HB Maximum Voltage (V) : 600 Disconnect Type : Female Disconnect-Supra Grip Minimum Metric Conductor Size (mm²) : 0.5 Wire Strip Length (In.) : 9/32 Base Material : Brass Packaging Type : Reel Insulation Diameter (mm) : 3.3 Maximum Wire Insulation Diameter (In.) : 0.13 Insulation Type : Fully Insulated Maximum Wire Insulation Diameter (mm) : 3.2 Insulation Material : Nylon Overall Length (In.) : 0.89 Copper Conductor Size : 22-18 AWG Wire Size : 22-18 AWG - Part Drawings
