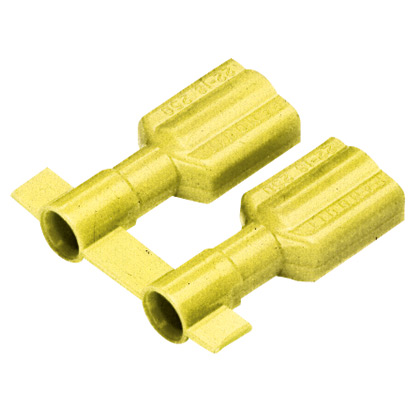

Reel Smart™ DPF10-250FIB-2K Disconnects, Yellow, Premium Nylon, 10-12 AWG, 0.25"
MFG #DPF10-250FIB-2K
$0.60 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in yellow premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.96" (24.4 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 2000.
HESCO Part Number
PANDPF10250FIB2K
UPC
074983348510
Manufacturer Part Number
DPF10-250FIB-2K
Manufacturer
Panduit
Reel Smart™ DPF10-250FIB-2K Disconnects, Yellow, Premium Nylon, 10-12 AWG, 0.25"
MFG #DPF10-250FIB-2K
Product Description:
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in yellow premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.96" (24.4 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 2000.
HESCO Part Number
PANDPF10250FIB2K
UPC
074983348510
Manufacturer Part Number
DPF10-250FIB-2K
Manufacturer
Panduit
$0.60 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Features
- Specifications
- Resources
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Specifications
| Country of Origin | : | Mexico, United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (In.) | : | 0.96 |
| Wire Strip Length (In.) | : | 9/32 |
| For Use With | : | Crimp press with CA9 (CD9-13B) or CA-800EZ (CD-800-13) applicator |
| Insulation Material | : | Premium Nylon |
| Seam Type | : | Butted |
| Insulation Type | : | Fully Insulated |
| Wire Strip Length (mm) | : | 7.1 |
| Maximum Operating Temperature (°C) | : | 105 |
| Barrel Type | : | Funnel Entry |
| Disconnect Type | : | Female Disconnect |
| Insulation Diameter (In.) | : | 0.22 |
| Product Type | : | Disconnect |
| Sub Brand | : | Reel Smart™ |
| Base Material | : | Brass |
| Tongue Angle | : | Straight |
| Maximum Wire Insulation Diameter (In.) | : | 0.22 |
| Overall Length (mm) | : | 24.4 |
| Finish/Coating | : | Tin-Plated |
| Tab Size (In.) | : | 0.250 x 0.032 |
| Maximum Voltage (V) | : | 600 |
| Insulation Diameter (mm) | : | 5.6 |
| Maximum Operating Temperature (°F) | : | 221 |
| Overall Width (In.) | : | 0.35 |
| Overall Width (mm) | : | 8.9 |
| Tab Size (mm) | : | 6.3 x 0.8 |
| Maximum Voltage (kV) | : | 0.6 |
| Maximum Wire Insulation Diameter (mm) | : | 5.6 |
| Color Code | : | Yellow |
| Packaging Type | : | Reel |
| Maximum Metric Conductor Size (mm²) | : | 6 |
| Flammability Rating | : | UL94V-2/UL94-HB |
| Minimum Metric Conductor Size (mm²) | : | 4 |
| Copper Conductor Size | : | 12-10 AWG |
| Wire Size | : | 12-10 AWG |
Packaging Details | ||
| UPC | : | 07498334851 |
| GTIN Package | : | 00074983348510 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 9.4000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983348510 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 32,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 150.4000 |
| RoHS Compliant | : | Compliant |
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Specifications
Country of Origin : Mexico, United States Any Reason Not to Sell : N Product Segment : IEI Overall Length (In.) : 0.96 Wire Strip Length (In.) : 9/32 For Use With : Crimp press with CA9 (CD9-13B) or CA-800EZ (CD-800-13) applicator Insulation Material : Premium Nylon Seam Type : Butted Insulation Type : Fully Insulated Wire Strip Length (mm) : 7.1 Maximum Operating Temperature (°C) : 105 Barrel Type : Funnel Entry Disconnect Type : Female Disconnect Insulation Diameter (In.) : 0.22 Product Type : Disconnect Sub Brand : Reel Smart™ Base Material : Brass Tongue Angle : Straight Maximum Wire Insulation Diameter (In.) : 0.22 Overall Length (mm) : 24.4 Finish/Coating : Tin-Plated Tab Size (In.) : 0.250 x 0.032 Maximum Voltage (V) : 600 Insulation Diameter (mm) : 5.6 Maximum Operating Temperature (°F) : 221 Overall Width (In.) : 0.35 Overall Width (mm) : 8.9 Tab Size (mm) : 6.3 x 0.8 Maximum Voltage (kV) : 0.6 Maximum Wire Insulation Diameter (mm) : 5.6 Color Code : Yellow Packaging Type : Reel Maximum Metric Conductor Size (mm²) : 6 Flammability Rating : UL94V-2/UL94-HB Minimum Metric Conductor Size (mm²) : 4 Copper Conductor Size : 12-10 AWG Wire Size : 12-10 AWG Packaging Details
UPC : 07498334851 GTIN Package : 00074983348510 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 9.4000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 2000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983348510 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 2,000.0000 Pallet Quantity : 32,000 Pallet Volume : 0.000000 Pallet Weight : 150.4000 RoHS Compliant : Compliant - Part Drawings
Part Drawings 1
Selection GuidesSelection Guides 1
