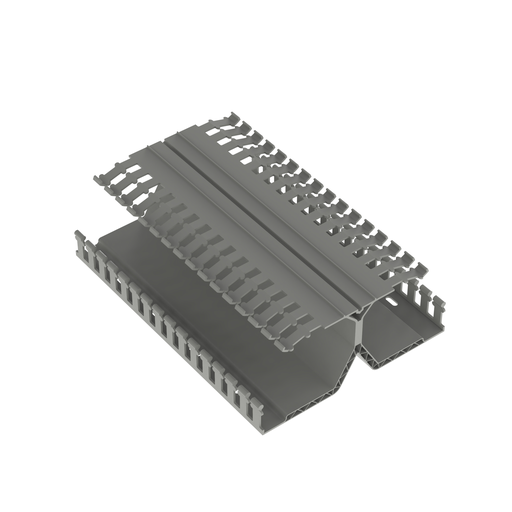

PanelMax™ DRD22LG6 DIN Rail Duct, Lt Gray, PVC, 2.12"x6.25", PK6
MFG #DRD22LG6
$23.28 / FT
(Must order in increments of 24/FT)
(Must order in increments of 24/FT)
Product Description:
The DRD22LG6 Panduct® PanelMax™ DIN Rail Wiring Duct is a wire management solution that positions DIN rail and components off the panel directly above an integrated wire management channel for up to a 30% smaller footprint; up to 25% material cost savings; and up to 50% faster installation. Compatible with common DIN rail/mount components. Lead-free PVC. 2.12" (54 mm) x 6.22" (158 mm) and 6' (1.8 m) long. Includes base, covers, and DIN rail fasteners. Color Light Gray.
HESCO Part Number
PANDRD22LG6
UPC
074983117055
Manufacturer Part Number
DRD22LG6
Manufacturer
Panduit
PanelMax™ DRD22LG6 DIN Rail Duct, Lt Gray, PVC, 2.12"x6.25", PK6
MFG #DRD22LG6
Product Description:
The DRD22LG6 Panduct® PanelMax™ DIN Rail Wiring Duct is a wire management solution that positions DIN rail and components off the panel directly above an integrated wire management channel for up to a 30% smaller footprint; up to 25% material cost savings; and up to 50% faster installation. Compatible with common DIN rail/mount components. Lead-free PVC. 2.12" (54 mm) x 6.22" (158 mm) and 6' (1.8 m) long. Includes base, covers, and DIN rail fasteners. Color Light Gray.
HESCO Part Number
PANDRD22LG6
UPC
074983117055
Manufacturer Part Number
DRD22LG6
Manufacturer
Panduit
$23.28 / FT
(Must order in increments of 24/FT)
(Must order in increments of 24/FT)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: RoHS Compliant, UL Recognized, CSA Compliant, CE Compliant, BABA Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Application | : | DIN Rail Duct Creates Valuable Panel Space Savings, Providing Easier Installation and Maintenance, and Improving Reliability |
| Overall Width (mm) | : | 158.7 |
| Overall Length (ft.) | : | 6 |
| Product Type | : | Wiring Duct Base with Cover |
| Overall Height (In.) | : | 2.12 |
| Overall Height (mm) | : | 54 |
| Wiring Duct Type | : | DRD |
| Wiring Duct Style | : | DIN Rail Wiring Duct |
| Material | : | PVC |
| Flammability Rating | : | UL94V-0 |
| Cover Part Number | : | DRDC2LG6 |
| Includes | : | Base, Covers, DIN Rail Fasteners |
| Measurement System | : | Imperial |
| Slot Width (mm) | : | 8 |
| Overall Width (In.) | : | 6.25 |
| Mount Method | : | Mounting Holes |
| Overall Length (m) | : | 1.83 |
| Slot Width (In.) | : | 0.31 |
| Note | : | 2-Channel Wiring duct with a hinged and flexible cover that allows you to mount DIN Rail and components on top of the duct to maximize space. Up to 30% panel Space savings, up to 25% material cost savings, and up to 50% faster installation. Pass thru holes to shorten the wire path |
| Color | : | Light Gray |
| Sub Brand | : | PanelMax™ |
| Material Properties | : | Lead-Free |
| Duct Dimensions (In.) | : | 6.25W x 2.12H |
Packaging Details | ||
| UPC | : | 07498311705 |
| GTIN Package | : | 00074983117055 |
| Standard Package Volume Ft3 | : | 0.8550 |
| Standard Package Weight Pounds | : | 7.5000 |
| Std Package Height In | : | 2.39 |
| Std Package Height MM | : | 60.706 |
| Std Package Length In | : | 75.687 |
| Std Package Length MM | : | 1922.4498 |
| Std Package Width In | : | 6.6 |
| Std Package Width MM | : | 167.64 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983117055 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 6.0000 |
| Pallet Quantity | : | 330 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 412.5000 |
| RoHS Compliant | : | Compliant |
