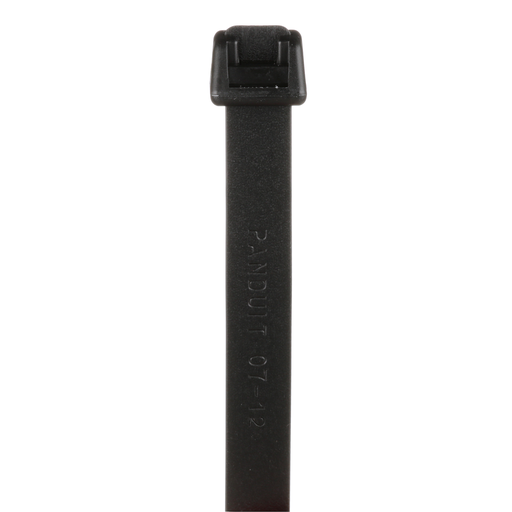

Dura-Ty™ DT28EH-C0 Dura-Ty Cable Tie, Black, Acetal, UV, 96"L, 250lb, PK100
MFG #DT28EH-C0
$27.85 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Panduit DT28EH-C0 Dura-Ty™ Cable Ties are weather, chemical, and UV-resistant for harsh outdoor power and communications applications. The durable locking mechanism, complete with double stainless steel locking barbs, provides a consistent, reliable connection and high-impact resistance and strength. Extra-Heavy cross section, 96.0” (2438mm) length, are made of Weather Resistant Acetal. They are black in color and come in packages of 100.
HESCO Part Number
PANDT28EHC0
UPC
074983609666
Manufacturer Part Number
DT28EH-C0
Manufacturer
Panduit
Dura-Ty™ DT28EH-C0 Dura-Ty Cable Tie, Black, Acetal, UV, 96"L, 250lb, PK100
MFG #DT28EH-C0
Product Description:
Panduit DT28EH-C0 Dura-Ty™ Cable Ties are weather, chemical, and UV-resistant for harsh outdoor power and communications applications. The durable locking mechanism, complete with double stainless steel locking barbs, provides a consistent, reliable connection and high-impact resistance and strength. Extra-Heavy cross section, 96.0” (2438mm) length, are made of Weather Resistant Acetal. They are black in color and come in packages of 100.
HESCO Part Number
PANDT28EHC0
UPC
074983609666
Manufacturer Part Number
DT28EH-C0
Manufacturer
Panduit
$27.85 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL 62275 (File #E56854), Type 2, 2S, CE TR-TSY-000789, RoHS Compliant
- No
Specifications
| Country of Origin | : | China |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Body Thickness (mm) | : | 1.5 |
| For Use With | : | GS4EH-E |
| Resistance Properties | : | UV-Resistant |
| Minimum Operating Temperature (°C) | : | -60 |
| Minimum Operating Temperature (°F) | : | -76 |
| Maximum Operating Temperature (°C) | : | 85 |
| Minimum Loop Tensile Strength (lb) | : | 250 |
| Body Thickness (In.) | : | 0.059 |
| Body Width (mm) | : | 12.7 |
| Minimum Installation Temperature (°F) | : | -4 |
| Environment | : | Indoor/Outdoor |
| Product Type | : | Cable Tie |
| Overall Length (In.) | : | 96 |
| Maximum Operating Temperature (°F) | : | 185 |
| Sub Brand | : | Dura-Ty™ |
| Minimum Installation Temperature (°C) | : | -20 |
| Body Width (In.) | : | 0.5 |
| Maximum Bundle Diameter (In.) | : | 28 |
| Maximum Bundle Diameter (mm) | : | 711 |
| Material | : | Acetal |
| Minimum Bundle Diameter (In.) | : | 0.02 |
| Minimum Loop Tensile Strength (N) | : | 1112 |
| Minimum Bundle Diameter (mm) | : | 0.5 |
| Color | : | Black |
| Overall Length (mm) | : | 2438 |
Packaging Details | ||
| UPC | : | 07498360966 |
| GTIN Package | : | 00074983609666 |
| Standard Package Volume Ft3 | : | 1.7578 |
| Standard Package Weight Pounds | : | 16.1000 |
| Std Package Height In | : | 13.5 |
| Std Package Height MM | : | 342.9 |
| Std Package Length In | : | 22.5 |
| Std Package Length MM | : | 571.5 |
| Std Package Width In | : | 10 |
| Std Package Width MM | : | 254 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983609666 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | N |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 100.0000 |
| Pallet Quantity | : | 2,400 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 386.4000 |
| RoHS Compliant | : | Compliant |
