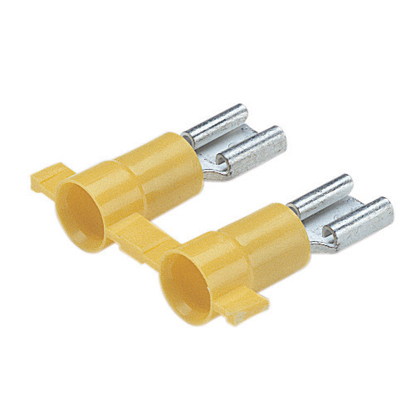

Reel Smart™ DV10-250-2K Disconnect, Yellow, Vinyl, 10-12 AWG, 0.250 x 0.032" Tab
MFG #DV10-250-2K
$0.64 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
Product Description:
Panduit DV10-250-2K Female Disconnect
HESCO Part Number
PANDV102502K
UPC
074983825554
Manufacturer Part Number
DV10-250-2K
Manufacturer
Panduit
Reel Smart™ DV10-250-2K Disconnect, Yellow, Vinyl, 10-12 AWG, 0.250 x 0.032" Tab
MFG #DV10-250-2K
Product Description:
Panduit DV10-250-2K Female Disconnect
HESCO Part Number
PANDV102502K
UPC
074983825554
Manufacturer Part Number
DV10-250-2K
Manufacturer
Panduit
$0.64 / E
(Must order in increments of 2000/E)
(Must order in increments of 2000/E)
- Specifications
- Resources
- Product
Packaging Details
| UPC | : | 07498382555 |
| GTIN Package | : | 00074983825554 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 10.8000 |
| Std Package Height In | : | 2.374 |
| Std Package Height MM | : | 60.2996 |
| Std Package Length In | : | 26.122 |
| Std Package Length MM | : | 663.4988 |
| Std Package Width In | : | 25.374 |
| Std Package Width MM | : | 644.4996 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983825554 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 2,000.0000 |
| Pallet Quantity | : | 32,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 172.8000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Finish/Coating | : | Tin-Plated |
| Insulation Material | : | Vinyl |
| Packaging Type | : | Reel |
| Minimum Metric Conductor Size (mm²) | : | 4 |
| Tongue Angle | : | Straight |
| Barrel Type | : | Funnel Entry |
| Sub Brand | : | Reel Smart™ |
| Disconnect Type | : | Female Disconnect |
| Tab Size (mm) | : | 6.3 x 0.8 |
| Overall Length (mm) | : | 24.1 |
| Base Material | : | Brass |
| Insulation Type | : | Barrel Insulated |
| Product Type | : | Disconnect |
| Overall Height (mm) | : | 3 |
| Overall Width (mm) | : | 7.4 |
| Overall Height (In.) | : | 0.12 |
| Overall Width (In.) | : | 0.29 |
| Maximum Wire Insulation Diameter (In.) | : | 0.23 |
| Overall Length (In.) | : | 0.95 |
| For Use With | : | Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator |
| Maximum Wire Insulation Diameter (mm) | : | 5.8 |
| Color Code | : | Yellow |
| Wire Strip Length (mm) | : | 8.7 |
| Flammability Rating | : | UL94V-0 |
| Maximum Voltage (kV) | : | 0.6 |
| Tab Size (In.) | : | 0.250 x 0.032 |
| Maximum Voltage (V) | : | 600 |
| Maximum Metric Conductor Size (mm²) | : | 6 |
| Wire Strip Length (In.) | : | 11/32 |
| Copper Conductor Size | : | 10 AWG |
| Wire Size | : | 12-10 AWG |
Videos 1
Packaging Details
UPC : 07498382555 GTIN Package : 00074983825554 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 10.8000 Std Package Height In : 2.374 Std Package Height MM : 60.2996 Std Package Length In : 26.122 Std Package Length MM : 663.4988 Std Package Width In : 25.374 Std Package Width MM : 644.4996 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 2000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983825554 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 2,000.0000 Pallet Quantity : 32,000 Pallet Volume : 0.000000 Pallet Weight : 172.8000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Finish/Coating : Tin-Plated Insulation Material : Vinyl Packaging Type : Reel Minimum Metric Conductor Size (mm²) : 4 Tongue Angle : Straight Barrel Type : Funnel Entry Sub Brand : Reel Smart™ Disconnect Type : Female Disconnect Tab Size (mm) : 6.3 x 0.8 Overall Length (mm) : 24.1 Base Material : Brass Insulation Type : Barrel Insulated Product Type : Disconnect Overall Height (mm) : 3 Overall Width (mm) : 7.4 Overall Height (In.) : 0.12 Overall Width (In.) : 0.29 Maximum Wire Insulation Diameter (In.) : 0.23 Overall Length (In.) : 0.95 For Use With : Crimp press with CA9 (CD9-3B) or CA-800EZ (CD-800-3) applicator Maximum Wire Insulation Diameter (mm) : 5.8 Color Code : Yellow Wire Strip Length (mm) : 8.7 Flammability Rating : UL94V-0 Maximum Voltage (kV) : 0.6 Tab Size (In.) : 0.250 x 0.032 Maximum Voltage (V) : 600 Maximum Metric Conductor Size (mm²) : 6 Wire Strip Length (In.) : 11/32 Copper Conductor Size : 10 AWG Wire Size : 12-10 AWG - Part Drawings
Part Drawings 1
