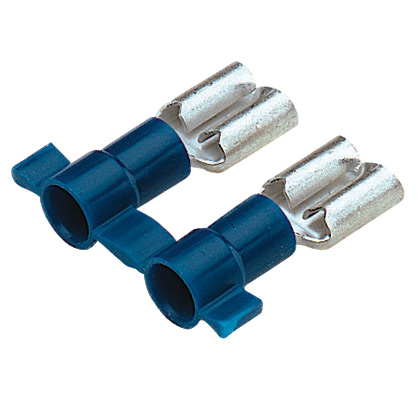

Reel Smart™ DV14-205B-3K Disconnects on a Reel
MFG #DV14-205B-3K
$0.35 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
Product Description:
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.187/0.205 x 0.032" (4.8/5.2 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.77" (19.6 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.
HESCO Part Number
PANDV14205B3K
UPC
074983821181
Manufacturer Part Number
DV14-205B-3K
Manufacturer
Panduit
Reel Smart™ DV14-205B-3K Disconnects on a Reel
MFG #DV14-205B-3K
Product Description:
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.187/0.205 x 0.032" (4.8/5.2 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.77" (19.6 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.
HESCO Part Number
PANDV14205B3K
UPC
074983821181
Manufacturer Part Number
DV14-205B-3K
Manufacturer
Panduit
$0.35 / E
(Must order in increments of 3000/E)
(Must order in increments of 3000/E)
- Features
- Specifications
- Resources
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Packaging Details
| UPC | : | 07498382118 |
| GTIN Package | : | 00074983821181 |
| Standard Package Volume Ft3 | : | 0.9208 |
| Standard Package Weight Pounds | : | 8.4000 |
| Std Package Height In | : | 2.4 |
| Std Package Height MM | : | 60.96 |
| Std Package Length In | : | 26.1 |
| Std Package Length MM | : | 662.94 |
| Std Package Width In | : | 25.4 |
| Std Package Width MM | : | 645.16 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 3000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983821181 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 3,000.0000 |
| Pallet Quantity | : | 48,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 134.4000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Metric Conductor Size (mm²) | : | 1.5 |
| Tab Size (In.) | : | 0.205/0.187 x 0.032 |
| Barrel Type | : | Funnel Entry |
| Insulation Diameter (mm) | : | 4.3 |
| Sub Brand | : | Reel Smart™ |
| Flammability Rating | : | UL94V-0 |
| Wire Strip Length (mm) | : | 7.1 |
| Overall Length (mm) | : | 19.6 |
| Overall Length (In.) | : | 0.77 |
| Maximum Operating Temperature (°F) | : | 221 |
| Insulation Material | : | Vinyl |
| Insulation Type | : | Barrel Insulated |
| Wire Strip Length (In.) | : | 9/32 |
| Color Code | : | Blue |
| Maximum Wire Insulation Diameter (In.) | : | 0.76 |
| Product Type | : | Disconnect |
| Seam Type | : | Butted |
| Overall Height (In.) | : | 0.12 |
| Disconnect Type | : | Female Disconnect |
| Maximum Voltage (V) | : | 600 |
| Insulation Diameter (In.) | : | 0.17 |
| Packaging Type | : | Reel |
| Overall Height (mm) | : | 3 |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Base Material | : | Brass |
| Maximum Voltage (kV) | : | 0.6 |
| Finish/Coating | : | Tin-Plated |
| Tongue Angle | : | Straight |
| Tab Size (mm) | : | 5.2/4.8 x 0.8 |
| Maximum Operating Temperature (°C) | : | 105 |
| Maximum Wire Insulation Diameter (mm) | : | 19.3 |
| Overall Width (mm) | : | 6.4 |
| For Use With | : | Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator |
| Overall Width (In.) | : | 0.25 |
| Wire Size | : | 16-14 AWG |
| Copper Conductor Size | : | 16-14 AWG |
- Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Packaging Details
UPC : 07498382118 GTIN Package : 00074983821181 Standard Package Volume Ft3 : 0.9208 Standard Package Weight Pounds : 8.4000 Std Package Height In : 2.4 Std Package Height MM : 60.96 Std Package Length In : 26.1 Std Package Length MM : 662.94 Std Package Width In : 25.4 Std Package Width MM : 645.16 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 3000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983821181 REACH Status : N ARRA Compliant : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 3,000.0000 Pallet Quantity : 48,000 Pallet Volume : 0.000000 Pallet Weight : 134.4000 RoHS Compliant : Compliant Specifications
Country of Origin : Mexico Any Reason Not to Sell : N Product Segment : IEI Minimum Metric Conductor Size (mm²) : 1.5 Tab Size (In.) : 0.205/0.187 x 0.032 Barrel Type : Funnel Entry Insulation Diameter (mm) : 4.3 Sub Brand : Reel Smart™ Flammability Rating : UL94V-0 Wire Strip Length (mm) : 7.1 Overall Length (mm) : 19.6 Overall Length (In.) : 0.77 Maximum Operating Temperature (°F) : 221 Insulation Material : Vinyl Insulation Type : Barrel Insulated Wire Strip Length (In.) : 9/32 Color Code : Blue Maximum Wire Insulation Diameter (In.) : 0.76 Product Type : Disconnect Seam Type : Butted Overall Height (In.) : 0.12 Disconnect Type : Female Disconnect Maximum Voltage (V) : 600 Insulation Diameter (In.) : 0.17 Packaging Type : Reel Overall Height (mm) : 3 Maximum Metric Conductor Size (mm²) : 2.5 Base Material : Brass Maximum Voltage (kV) : 0.6 Finish/Coating : Tin-Plated Tongue Angle : Straight Tab Size (mm) : 5.2/4.8 x 0.8 Maximum Operating Temperature (°C) : 105 Maximum Wire Insulation Diameter (mm) : 19.3 Overall Width (mm) : 6.4 For Use With : Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator Overall Width (In.) : 0.25 Wire Size : 16-14 AWG Copper Conductor Size : 16-14 AWG - Part Drawings
