Pan-Term® DV18-250P-MYY Loose Piece Disconnect
MFG #DV18-250P-MYY
$0.86 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

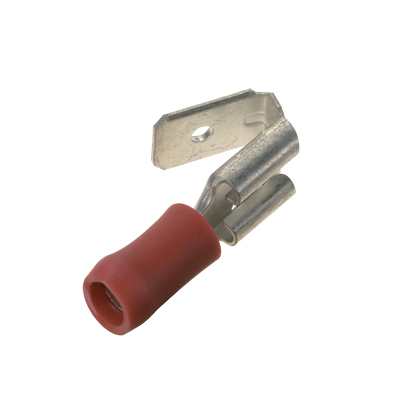

The vibration resistant piggyback disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.88" (22.4 mm) long and 0.29" (7.4 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1000.
HESCO Part Number
PANDV18250PMYY
UPC
613056757851
Manufacturer Part Number
DV18-250P-MYY
Manufacturer
Panduit
Pan-Term® DV18-250P-MYY Loose Piece Disconnect
MFG #DV18-250P-MYY
Product Description:
The vibration resistant piggyback disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.88" (22.4 mm) long and 0.29" (7.4 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1000.
HESCO Part Number
PANDV18250PMYY
UPC
613056757851
Manufacturer Part Number
DV18-250P-MYY
Manufacturer
Panduit
$0.86 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Specifications
- Resources
Specifications
| Country of Origin | : | Indonesia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Tongue Angle | : | Straight |
| Tab Size (mm) | : | 6.3 x 0.8 |
| Wire Strip Length (In.) | : | 9/32 |
| Maximum Metric Conductor Size (mm²) | : | 1 |
| Minimum Metric Conductor Size (mm²) | : | 0.5 |
| Base Material | : | Brass |
| Barrel Type | : | Funnel Entry |
| Tab Size (In.) | : | 0.250 x 0.032 |
| Sub Brand | : | Pan-Term® |
| Disconnect Type | : | Piggy Back Disconnect |
| Wire Strip Length (mm) | : | 7.1 |
| Insulation Material | : | Vinyl |
| Finish/Coating | : | Tin-Plated |
| Maximum Wire Insulation Diameter (mm) | : | 3.3 |
| Insulation Type | : | Barrel Insulated |
| Maximum Wire Insulation Diameter (In.) | : | 0.13 |
| Overall Length (In.) | : | 0.88 |
| Overall Width (mm) | : | 7.4 |
| Product Type | : | Disconnect |
| Overall Length (mm) | : | 22.4 |
| Overall Width (In.) | : | 0.29 |
| For Use With | : | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Copper Conductor Size | : | 22-18 AWG |
| Wire Size | : | 22-18 AWG |
Packaging Details | ||
| UPC | : | 61305675785 |
| GTIN Package | : | 00613056757851 |
| Standard Package Volume Ft3 | : | 0.5261 |
| Standard Package Weight Pounds | : | 3.3000 |
| Std Package Height In | : | 3.4 |
| Std Package Height MM | : | 86.36 |
| Std Package Length In | : | 8.2 |
| Std Package Length MM | : | 208.28 |
| Std Package Width In | : | 4.4 |
| Std Package Width MM | : | 111.76 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00613056757851 |
| REACH Status | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 480,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 1,584.0000 |
| RoHS Compliant | : | Compliant |
Specifications
Country of Origin : Indonesia Any Reason Not to Sell : N Product Segment : IEI Tongue Angle : Straight Tab Size (mm) : 6.3 x 0.8 Wire Strip Length (In.) : 9/32 Maximum Metric Conductor Size (mm²) : 1 Minimum Metric Conductor Size (mm²) : 0.5 Base Material : Brass Barrel Type : Funnel Entry Tab Size (In.) : 0.250 x 0.032 Sub Brand : Pan-Term® Disconnect Type : Piggy Back Disconnect Wire Strip Length (mm) : 7.1 Insulation Material : Vinyl Finish/Coating : Tin-Plated Maximum Wire Insulation Diameter (mm) : 3.3 Insulation Type : Barrel Insulated Maximum Wire Insulation Diameter (In.) : 0.13 Overall Length (In.) : 0.88 Overall Width (mm) : 7.4 Product Type : Disconnect Overall Length (mm) : 22.4 Overall Width (In.) : 0.29 For Use With : CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) Copper Conductor Size : 22-18 AWG Wire Size : 22-18 AWG Packaging Details
UPC : 61305675785 GTIN Package : 00613056757851 Standard Package Volume Ft3 : 0.5261 Standard Package Weight Pounds : 3.3000 Std Package Height In : 3.4 Std Package Height MM : 86.36 Std Package Length In : 8.2 Std Package Length MM : 208.28 Std Package Width In : 4.4 Std Package Width MM : 111.76 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00613056757851 REACH Status : Y Mercury Content Indicator : N Hazardous Material Flag : N Min Order Qty : 1,000.0000 Pallet Quantity : 480,000 Pallet Volume : 0.000000 Pallet Weight : 1,584.0000 RoHS Compliant : Compliant - Selection Guides
