EMSK12-4-12-X0 Epoxy Applied Cable Tie Mount Kit
MFG #EMSK12-4-12-X0
$53.61 / E
(Must order in increments of 30/E)
(Must order in increments of 30/E)
Product Description:

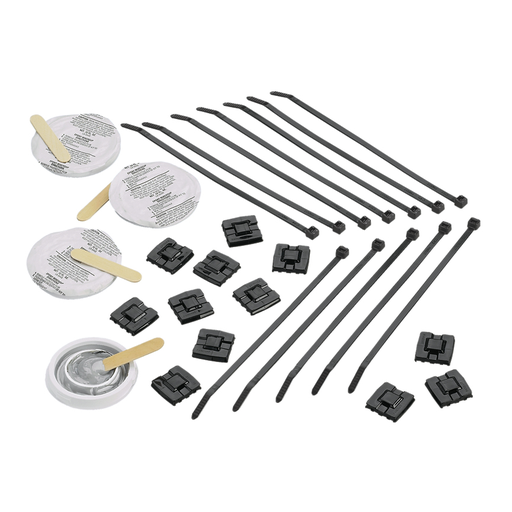

The epoxy applied cable tie mount kit in black is made of two-part epoxy and nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It includes 4 epoxy cups, 4 mixer sticks, 12 EMS mounts, and 12 cable ties. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor and outdoor environments and comes in packages of 10.
HESCO Part Number
PANEMSK12412X0
UPC
074983580231
Manufacturer Part Number
EMSK12-4-12-X0
Manufacturer
Panduit
EMSK12-4-12-X0 Epoxy Applied Cable Tie Mount Kit
MFG #EMSK12-4-12-X0
Product Description:
The epoxy applied cable tie mount kit in black is made of two-part epoxy and nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It includes 4 epoxy cups, 4 mixer sticks, 12 EMS mounts, and 12 cable ties. It is used with miniature, intermediate, and standard cable ties. It is designed for indoor and outdoor environments and comes in packages of 10.
HESCO Part Number
PANEMSK12412X0
UPC
074983580231
Manufacturer Part Number
EMSK12-4-12-X0
Manufacturer
Panduit
$53.61 / E
(Must order in increments of 30/E)
(Must order in increments of 30/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
- Yes
Packaging Details
| UPC | : | 07498358023 |
| GTIN Package | : | 00074983580231 |
| Standard Package Volume Ft3 | : | 0.3338 |
| Standard Package Weight Pounds | : | 3.2900 |
| Std Package Height In | : | 6.25 |
| Std Package Height MM | : | 158.75 |
| Std Package Length In | : | 10.62 |
| Std Package Length MM | : | 269.748 |
| Std Package Width In | : | 8.68 |
| Std Package Width MM | : | 220.472 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 10 |
| GTIN Carton | : | 50074983580236 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983580231 |
| REACH Status | : | N |
| California Pro65 Cancer | : | Yes |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 30.0000 |
| Pallet Quantity | : | 1,120 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 368.4800 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Static Load Capacity (lb) | : | 10 |
| Static Load Capacity (kg) | : | 4.5 |
| Overall Width (In.) | : | 0.98 |
| Maximum Operating Temperature (°F) | : | 185 |
| Application | : | Epoxy Mounting Kit with EMS Mounts and Cable Ties |
| Mount Method | : | Adhesive |
| Overall Length (In.) | : | 0.98 |
| Color | : | Black |
| Note | : | Includes 12 EMS-A-0 mounts, 4 EMA Epoxy Adhesive, and 12 PLT2S-0 cable ties |
| For Use With | : | Two-part Epoxy adhesive, included in this kit |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Overall Width (mm) | : | 24.9 |
| Product Type | : | Cable Tie Mount |
| Overall Height (mm) | : | 6.6 |
| Environment | : | Indoor/Outdoor |
| Minimum Operating Temperature (°C) | : | -60 |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Minimum Operating Temperature (°F) | : | -76 |
| Material | : | Nylon 6.6 |
| Overall Length (mm) | : | 24.9 |
| Maximum Operating Temperature (°C) | : | 85 |
| Overall Height (In.) | : | 0.26 |
Application Guides
Application Guides 1
Installation Documents
Installation Documents 1
MSDS
MSDS 1
MSDS 2
Selection Guides
Selection Guides 1
Part Drawings
Part Drawings 1
Application Guides 1Installation Documents
Installation Documents 1MSDS
MSDS 1MSDS 2Selection Guides
Selection Guides 1Part Drawings
Part Drawings 1Videos 1
- Standards Met: RoHS Compliant
- Yes
Packaging Details
UPC : 07498358023 GTIN Package : 00074983580231 Standard Package Volume Ft3 : 0.3338 Standard Package Weight Pounds : 3.2900 Std Package Height In : 6.25 Std Package Height MM : 158.75 Std Package Length In : 10.62 Std Package Length MM : 269.748 Std Package Width In : 8.68 Std Package Width MM : 220.472 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 10 GTIN Carton : 50074983580236 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983580231 REACH Status : N California Pro65 Cancer : Yes ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 30.0000 Pallet Quantity : 1,120 Pallet Volume : 0.000000 Pallet Weight : 368.4800 RoHS Compliant : Compliant Specifications
Country of Origin : United States Any Reason Not to Sell : N Product Segment : IEI Static Load Capacity (lb) : 10 Static Load Capacity (kg) : 4.5 Overall Width (In.) : 0.98 Maximum Operating Temperature (°F) : 185 Application : Epoxy Mounting Kit with EMS Mounts and Cable Ties Mount Method : Adhesive Overall Length (In.) : 0.98 Color : Black Note : Includes 12 EMS-A-0 mounts, 4 EMA Epoxy Adhesive, and 12 PLT2S-0 cable ties For Use With : Two-part Epoxy adhesive, included in this kit Minimum Loop Tensile Strength (N) : 222 Overall Width (mm) : 24.9 Product Type : Cable Tie Mount Overall Height (mm) : 6.6 Environment : Indoor/Outdoor Minimum Operating Temperature (°C) : -60 Minimum Loop Tensile Strength (lb) : 50 Minimum Operating Temperature (°F) : -76 Material : Nylon 6.6 Overall Length (mm) : 24.9 Maximum Operating Temperature (°C) : 85 Overall Height (In.) : 0.26 - Application GuidesApplication Guides 1
Installation DocumentsInstallation Documents 1
MSDSMSDS 1MSDS 2
Selection GuidesSelection Guides 1
Part DrawingsPart Drawings 1 - Videos 1
