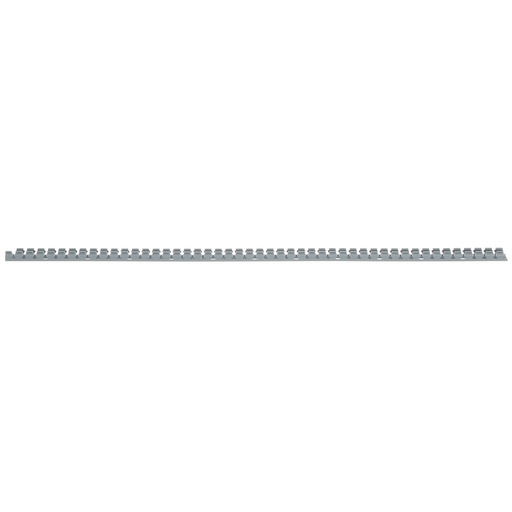

Panduct® F.5X.5LG6 Base Wiring Duct
MFG #F.5X.5LG6
$4.39 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
Product Description:
The F.5X.5LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. .5" x .5" (12.7 mm x 12.7 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
HESCO Part Number
PANF5X5LG6
UPC
074983374786
Manufacturer Part Number
F.5X.5LG6
Manufacturer
Panduit
Panduct® F.5X.5LG6 Base Wiring Duct
MFG #F.5X.5LG6
Product Description:
The F.5X.5LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. .5" x .5" (12.7 mm x 12.7 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
HESCO Part Number
PANF5X5LG6
UPC
074983374786
Manufacturer Part Number
F.5X.5LG6
Manufacturer
Panduit
$4.39 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Product Type | : | Base Wiring Duct |
| Application | : | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Overall Height (In.) | : | 0.6 |
| Measurement System | : | Imperial |
| Overall Width (mm) | : | 17.5 |
| Slot Width (In.) | : | 0.2 |
| Slot Width (mm) | : | 5 |
| Overall Length (ft.) | : | 6 |
| Sub Brand | : | Panduct® |
| Overall Length (m) | : | 1.83 |
| Flammability Rating | : | UL94 V-0 |
| Material | : | PVC |
| Mount Method | : | Mounting Holes |
| Includes | : | Base Only |
| Wiring Duct Style | : | Narrow Slot Wiring Duct |
| Color | : | Light Gray |
| Overall Width (In.) | : | 0.69 |
| Cover Part Number | : | C.5LG6 |
| Wiring Duct Type | : | F |
| Overall Height (mm) | : | 15.2 |
| Material Properties | : | Lead-Free |
| Duct Dimensions (In.) | : | 0.69W x 0.6H |
Packaging Details | ||
| UPC | : | 07498337478 |
| GTIN Package | : | 00074983374786 |
| Standard Package Volume Ft3 | : | 0.0178 |
| Standard Package Weight Pounds | : | 0.4152 |
| Std Package Height In | : | .5 |
| Std Package Height MM | : | 12.7 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | .5 |
| Std Package Width MM | : | 12.7 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983374781 |
| Standard Carton Volume Ft3 | : | 0.3559 |
| Standard Carton Weight Pounds | : | 8.3040 |
| Std Carton Height In | : | 1.8 |
| Std Carton Height MM | : | 45.72 |
| Std Carton Length In | : | 72.7 |
| Std Carton Length MM | : | 1846.58 |
| Std Carton Width In | : | 4.7 |
| Std Carton Width MM | : | 119.38 |
| Std Ctn Qty | : | 120 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983374786 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 120.0000 |
| Pallet Quantity | : | 21,600 |
| Pallet Volume | : | 64.066875 |
| Pallet Weight | : | 1,494.7200 |
| RoHS Compliant | : | Compliant |
