Panduct® F1X1.5IB6 Base Wiring Duct
MFG #F1X1.5IB6
$7.60 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
Product Description:

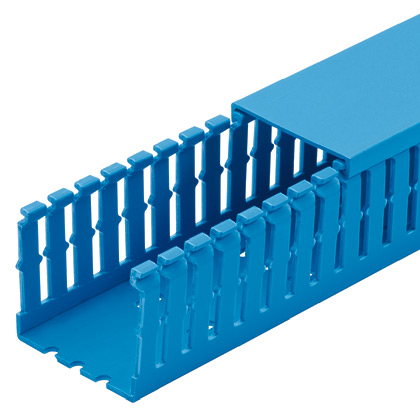

The F1X1.5IB6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC.1" x 1.5" (25.4 mm x 38.1 mm) and 6' (1.83 m) long. Cover sold separately. Color Intrinsic Blue.
HESCO Part Number
PANF1X15IB6
UPC
074983017959
Manufacturer Part Number
F1X1.5IB6
Manufacturer
Panduit
Panduct® F1X1.5IB6 Base Wiring Duct
MFG #F1X1.5IB6
Product Description:
The F1X1.5IB6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC.1" x 1.5" (25.4 mm x 38.1 mm) and 6' (1.83 m) long. Cover sold separately. Color Intrinsic Blue.
HESCO Part Number
PANF1X15IB6
UPC
074983017959
Manufacturer Part Number
F1X1.5IB6
Manufacturer
Panduit
$7.60 / FT
(Must order in increments of 120/FT)
(Must order in increments of 120/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Product Type | : | Base Wiring Duct |
| Color | : | Intrinsic Blue |
| Wiring Duct Type | : | F |
| Material | : | PVC |
| Overall Length (ft.) | : | 6 |
| Application | : | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Includes | : | Base Only |
| Overall Width (mm) | : | 32 |
| Flammability Rating | : | UL94 V-0 |
| Overall Width (In.) | : | 1.25 |
| Slot Width (In.) | : | 0.2 |
| Cover Part Number | : | C1IB6 |
| Slot Width (mm) | : | 5 |
| Overall Height (In.) | : | 1.62 |
| Sub Brand | : | Panduct® |
| Measurement System | : | Imperial |
| Wiring Duct Style | : | Narrow Slot Wiring Duct |
| Mount Method | : | Mounting Holes |
| Overall Length (m) | : | 1.83 |
| Overall Height (mm) | : | 41.1 |
| Material Properties | : | Lead-Free |
| Duct Dimensions (In.) | : | 1.25W x 1.62H |
Packaging Details | ||
| UPC | : | 07498301795 |
| GTIN Package | : | 00074983017959 |
| Standard Package Volume Ft3 | : | 0.0650 |
| Standard Package Weight Pounds | : | 0.9625 |
| Std Package Height In | : | 1.5 |
| Std Package Height MM | : | 38.1 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 1 |
| Std Package Width MM | : | 25.4 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983017954 |
| Standard Carton Volume Ft3 | : | 1.2991 |
| Standard Carton Weight Pounds | : | 19.2500 |
| Std Carton Height In | : | 3.7 |
| Std Carton Height MM | : | 93.98 |
| Std Carton Length In | : | 73.1 |
| Std Carton Length MM | : | 1856.74 |
| Std Carton Width In | : | 8.3 |
| Std Carton Width MM | : | 210.82 |
| Std Ctn Qty | : | 120 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983017959 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 120.0000 |
| Pallet Quantity | : | 5,400 |
| Pallet Volume | : | 58.460964 |
| Pallet Weight | : | 866.2502 |
| RoHS Compliant | : | Compliant |
