Panduct® F6X4LG6 Base Wiring Duct
MFG #F6X4LG6
$20.98 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
Product Description:

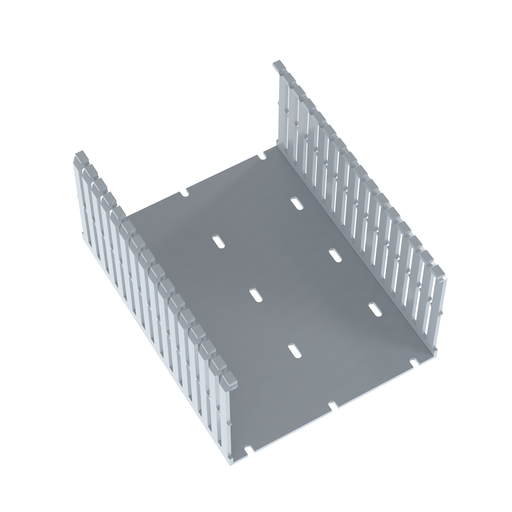

The F6X4LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 6" x 4" (152.4 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
HESCO Part Number
PANF6X4LG6
UPC
074983220878
Manufacturer Part Number
F6X4LG6
Manufacturer
Panduit
Panduct® F6X4LG6 Base Wiring Duct
MFG #F6X4LG6
Product Description:
The F6X4LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 6" x 4" (152.4 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
HESCO Part Number
PANF6X4LG6
UPC
074983220878
Manufacturer Part Number
F6X4LG6
Manufacturer
Panduit
$20.98 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
Packaging Details
| UPC | : | 07498322087 |
| GTIN Package | : | 00074983220878 |
| Standard Package Volume Ft3 | : | 0.7462 |
| Standard Package Weight Pounds | : | 5.2500 |
| Std Package Height In | : | 4 |
| Std Package Height MM | : | 101.6 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 6 |
| Std Package Width MM | : | 152.4 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983220873 |
| Standard Carton Volume Ft3 | : | 7.4619 |
| Standard Carton Weight Pounds | : | 52.5000 |
| Std Carton Height In | : | 8.7 |
| Std Carton Height MM | : | 220.98 |
| Std Carton Length In | : | 72.9 |
| Std Carton Length MM | : | 1851.66 |
| Std Carton Width In | : | 20.4 |
| Std Carton Width MM | : | 518.16 |
| Std Ctn Qty | : | 60 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983220878 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 60.0000 |
| Pallet Quantity | : | 480 |
| Pallet Volume | : | 59.695590 |
| Pallet Weight | : | 420.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (m) | : | 1.83 |
| Slot Width (In.) | : | 0.2 |
| Product Type | : | Base Wiring Duct |
| Sub Brand | : | Panduct® |
| Cover Part Number | : | C6LG6 |
| Wiring Duct Style | : | Narrow Slot Wiring Duct |
| Mount Method | : | Mounting Holes |
| Overall Width (mm) | : | 158.8 |
| Wiring Duct Type | : | F |
| Overall Height (In.) | : | 4.15 |
| Includes | : | Base Only |
| Overall Height (mm) | : | 105.4 |
| Measurement System | : | Imperial |
| Slot Width (mm) | : | 5 |
| Color | : | Light Gray |
| Overall Length (ft.) | : | 6 |
| Overall Width (In.) | : | 6.25 |
| Material | : | PVC |
| Flammability Rating | : | UL94V-0 |
| Application | : | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Material Properties | : | Lead-Free |
| Duct Dimensions (In.) | : | 6.25W x 4.15H |
