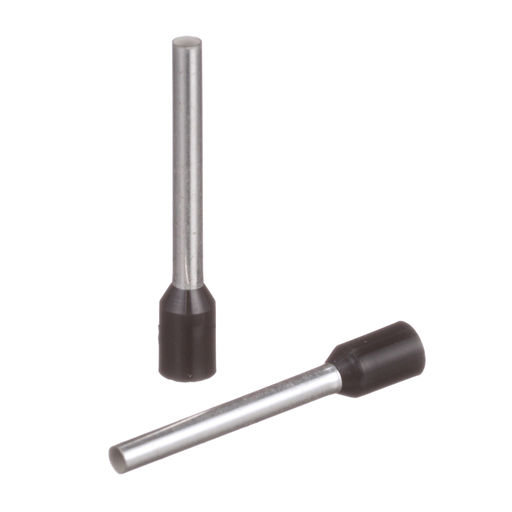

Pan-Term® FSD78-18-D Covered Single Wire Ferrules
MFG #FSD78-18-D
$0.32 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
Covered ferrules single wire black DIN end sleeve, 16 AWG, 18mm pin length.
HESCO Part Number
PANFSD7818D
UPC
074983762583
Manufacturer Part Number
FSD78-18-D
Manufacturer
Panduit
Pan-Term® FSD78-18-D Covered Single Wire Ferrules
MFG #FSD78-18-D
Product Description:
Covered ferrules single wire black DIN end sleeve, 16 AWG, 18mm pin length.
HESCO Part Number
PANFSD7818D
UPC
074983762583
Manufacturer Part Number
FSD78-18-D
Manufacturer
Panduit
$0.32 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Standards Met: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
- No
Specifications
| Country of Origin | : | Germany |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Base Material | : | Copper |
| Maximum Operating Temperature (°F) | : | 221 |
| Maximum Wire Insulation Diameter (mm) | : | 3 |
| Color Code | : | Black |
| Inside Diameter (mm) | : | 1.8 |
| Flammability Rating | : | UL94-HB |
| Ferrule Type | : | Single Wire Standard |
| Finish/Coating | : | Tin-Plated |
| For Use With | : | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| Sub Brand | : | Pan-Term® |
| Pin Length (mm) | : | 18 |
| Maximum Wire Insulation Diameter (In.) | : | 0.12 |
| CSA Temperature Rating (°C) | : | 105 |
| Cover Material | : | Polypropylene |
| Wire Strip Length (mm) | : | 22.2 |
| UL Temperature Rating (°C) | : | 105 |
| Inside Diameter (In.) | : | 0.07 |
| Product Type | : | Covered Single Wire Ferrule |
| Packaging Type | : | Bag |
| Overall Length (In.) | : | 0.96 |
| Overall Length (mm) | : | 24.5 |
| Maximum Metric Conductor Size (mm²) | : | 1.5 |
| Maximum Operating Temperature (°C) | : | 105 |
| Pin Length (In.) | : | 0.71 |
| Wire Strip Length (In.) | : | 7/8 |
| Copper Conductor Size | : | 16 AWG |
Packaging Details | ||
| UPC | : | 07498376258 |
| GTIN Package | : | 00074983762583 |
| Standard Package Volume Ft3 | : | 0.1164 |
| Standard Package Weight Pounds | : | 0.2500 |
| Std Package Height In | : | 1.2 |
| Std Package Height MM | : | 30.48 |
| Std Package Length In | : | 4.55 |
| Std Package Length MM | : | 115.57 |
| Std Package Width In | : | 3.65 |
| Std Package Width MM | : | 92.71 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 500 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983762583 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 2,160,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 1,080.0000 |
| RoHS Compliant | : | Compliant |
