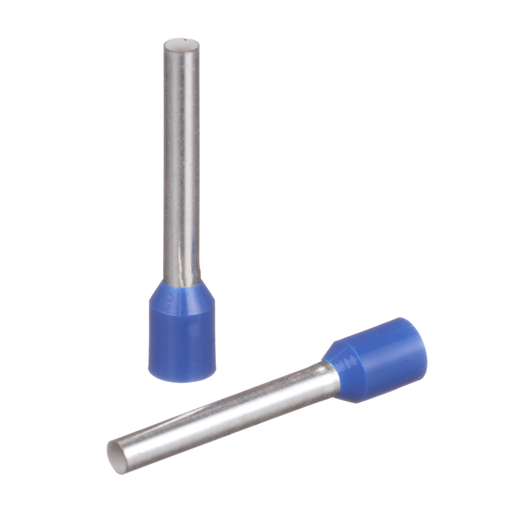

Pan-Term® FSD80-18-D Covered Single Wire Ferrules
MFG #FSD80-18-D
$0.42 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
Covered ferrules single wire blue DIN end sleeve, 14 AWG, 18mm pin length.
HESCO Part Number
PANFSD8018D
UPC
074983762613
Manufacturer Part Number
FSD80-18-D
Manufacturer
Panduit
Pan-Term® FSD80-18-D Covered Single Wire Ferrules
MFG #FSD80-18-D
Product Description:
Covered ferrules single wire blue DIN end sleeve, 14 AWG, 18mm pin length.
HESCO Part Number
PANFSD8018D
UPC
074983762613
Manufacturer Part Number
FSD80-18-D
Manufacturer
Panduit
$0.42 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- No
- Standards Met: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Specifications
| Country of Origin | : | Germany |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Inside Diameter (mm) | : | 2.3 |
| Maximum Wire Insulation Diameter (mm) | : | 4.2 |
| Product Type | : | Covered Single Wire Ferrule |
| Overall Length (mm) | : | 17.5 |
| UL Temperature Rating (°C) | : | 105 |
| For Use With | : | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| Sub Brand | : | Pan-Term® |
| Maximum Operating Temperature (°C) | : | 105 |
| Cover Material | : | Polypropylene |
| Wire Strip Length (In.) | : | 7/8 |
| Base Material | : | Copper |
| CSA Temperature Rating (°C) | : | 105 |
| Flammability Rating | : | UL94-HB |
| Pin Length (In.) | : | 0.71 |
| Packaging Type | : | Bag |
| Wire Strip Length (mm) | : | 22.2 |
| Overall Length (In.) | : | 0.69 |
| Ferrule Type | : | Single Wire Standard |
| Finish/Coating | : | Tin-Plated |
| Maximum Wire Insulation Diameter (In.) | : | 0.17 |
| Pin Length (mm) | : | 18 |
| Maximum Operating Temperature (°F) | : | 221 |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Color Code | : | Blue |
| Inside Diameter (In.) | : | 0.09 |
| Copper Conductor Size | : | 14 AWG |
Packaging Details | ||
| UPC | : | 07498376261 |
| GTIN Package | : | 00074983762613 |
| Standard Package Volume Ft3 | : | 0.1164 |
| Standard Package Weight Pounds | : | 0.3000 |
| Std Package Height In | : | 1.7 |
| Std Package Height MM | : | 43.18 |
| Std Package Length In | : | 5.55 |
| Std Package Length MM | : | 140.97 |
| Std Package Width In | : | 3.8 |
| Std Package Width MM | : | 96.52 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 500 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983762613 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 2,160,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 1,296.0000 |
| RoHS Compliant | : | Compliant |
- No
- Standards Met: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Specifications
Country of Origin : Germany Any Reason Not to Sell : N Product Segment : IEI Inside Diameter (mm) : 2.3 Maximum Wire Insulation Diameter (mm) : 4.2 Product Type : Covered Single Wire Ferrule Overall Length (mm) : 17.5 UL Temperature Rating (°C) : 105 For Use With : CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) Sub Brand : Pan-Term® Maximum Operating Temperature (°C) : 105 Cover Material : Polypropylene Wire Strip Length (In.) : 7/8 Base Material : Copper CSA Temperature Rating (°C) : 105 Flammability Rating : UL94-HB Pin Length (In.) : 0.71 Packaging Type : Bag Wire Strip Length (mm) : 22.2 Overall Length (In.) : 0.69 Ferrule Type : Single Wire Standard Finish/Coating : Tin-Plated Maximum Wire Insulation Diameter (In.) : 0.17 Pin Length (mm) : 18 Maximum Operating Temperature (°F) : 221 Maximum Metric Conductor Size (mm²) : 2.5 Color Code : Blue Inside Diameter (In.) : 0.09 Copper Conductor Size : 14 AWG Packaging Details
UPC : 07498376261 GTIN Package : 00074983762613 Standard Package Volume Ft3 : 0.1164 Standard Package Weight Pounds : 0.3000 Std Package Height In : 1.7 Std Package Height MM : 43.18 Std Package Length In : 5.55 Std Package Length MM : 140.97 Std Package Width In : 3.8 Std Package Width MM : 96.52 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 500 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983762613 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 500.0000 Pallet Quantity : 2,160,000 Pallet Volume : 0.000000 Pallet Weight : 1,296.0000 RoHS Compliant : Compliant - Selection Guides
