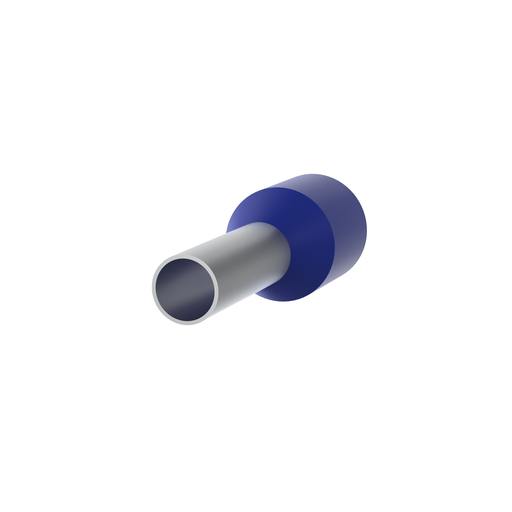

Pan-Term® FSD80-8-D Covered Single Wire Ferrules
MFG #FSD80-8-D
$0.31 / e
(Must order in increments of 500/e)
(Must order in increments of 500/e)
Product Description:
Covered ferrules single wire blue DIN end sleeve, 14 AWG, 8mm pin length.
HESCO Part Number
PANFSD808D
UPC
074983762590
Manufacturer Part Number
FSD80-8-D
Manufacturer
Panduit
Pan-Term® FSD80-8-D Covered Single Wire Ferrules
MFG #FSD80-8-D
Product Description:
Covered ferrules single wire blue DIN end sleeve, 14 AWG, 8mm pin length.
HESCO Part Number
PANFSD808D
UPC
074983762590
Manufacturer Part Number
FSD80-8-D
Manufacturer
Panduit
$0.31 / e
(Must order in increments of 500/e)
(Must order in increments of 500/e)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Specifications
| Country of Origin | : | Germany |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Operating Temperature (°C) | : | -54 |
| Maximum Operating Temperature (°F) | : | 221 |
| Wire Strip Length (In.) | : | 15/32 |
| Packaging Type | : | Bag |
| Finish/Coating | : | Tin-Plated |
| Pin Length (In.) | : | 0.31 |
| Flammability Rating | : | UL94-HB |
| Color Code | : | Blue |
| CSA Temperature Rating (°C) | : | 105 |
| Pin Length (mm) | : | 8 |
| Maximum Wire Insulation Diameter (In.) | : | 0.17 |
| For Use With | : | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| UL Temperature Rating (°C) | : | 105 |
| Minimum Operating Temperature (°F) | : | -60 |
| Maximum Wire Insulation Diameter (mm) | : | 4.2 |
| Base Material | : | Copper |
| Inside Diameter (In.) | : | 0.09 |
| Ferrule Type | : | Single Wire Standard |
| Maximum Operating Temperature (°C) | : | 105 |
| Sub Brand | : | Pan-Term® |
| Minimum Metric Conductor Size (mm²) | : | 2.5 |
| Inside Diameter (mm) | : | 2.3 |
| Wire Strip Length (mm) | : | 11.9 |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Product Type | : | Covered Single Wire Ferrule |
| Overall Length (In.) | : | 0.59 |
| Cover Material | : | Polypropylene |
| Overall Length (mm) | : | 15 |
| Copper Conductor Size | : | 14 AWG |
Packaging Details | ||
| UPC | : | 07498376259 |
| GTIN Package | : | 00074983762590 |
| Standard Package Volume Ft3 | : | 0.1164 |
| Standard Package Weight Pounds | : | 0.2000 |
| Std Package Height In | : | .85 |
| Std Package Height MM | : | 21.59 |
| Std Package Length In | : | 4.75 |
| Std Package Length MM | : | 120.65 |
| Std Package Width In | : | 4.3 |
| Std Package Width MM | : | 109.22 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 500 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983762590 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 2,160,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 864.0000 |
| RoHS Compliant | : | Compliant |
