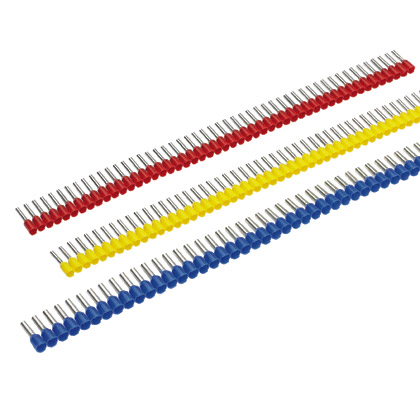

Pan-Term® FSD80-8-DSL6 Covered Single Wire Ferrule on Strip
MFG #FSD80-8-DSL6
$0.12 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
Covered ferrules, on strip, single wire blue DIN end sleeve, 14AWG, 8mm pin length.
HESCO Part Number
PANFSD808DSL6
UPC
074983020805
Manufacturer Part Number
FSD80-8-DSL6
Manufacturer
Panduit
Pan-Term® FSD80-8-DSL6 Covered Single Wire Ferrule on Strip
MFG #FSD80-8-DSL6
Product Description:
Covered ferrules, on strip, single wire blue DIN end sleeve, 14AWG, 8mm pin length.
HESCO Part Number
PANFSD808DSL6
UPC
074983020805
Manufacturer Part Number
FSD80-8-DSL6
Manufacturer
Panduit
$0.12 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Standards Met: DIN 46228 Part 4, CSA C22.2 No. 291-14
Packaging Details
| UPC | : | 07498302080 |
| GTIN Package | : | 00074983020805 |
| Standard Package Volume Ft3 | : | 0.0128 |
| Standard Package Weight Pounds | : | 0.1500 |
| Std Package Height In | : | .85 |
| Std Package Height MM | : | 21.59 |
| Std Package Length In | : | 10.3 |
| Std Package Length MM | : | 261.62 |
| Std Package Width In | : | 3.05 |
| Std Package Width MM | : | 77.47 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 500 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983020805 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500.0000 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Germany |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Maximum Wire Insulation Diameter (In.) | : | 0.16 |
| Outer Diameter (In.) | : | 0.1 |
| Sub Brand | : | Pan-Term® |
| Inside Diameter (mm) | : | 2.3 |
| Pin Length (In.) | : | 0.31 |
| Cover Material | : | Polypropylene |
| Wire Strip Length (mm) | : | 10 |
| Product Type | : | Covered Single Wire Ferrule |
| Maximum Operating Temperature (°C) | : | 105 |
| Inside Diameter (In.) | : | 0.09 |
| For Use With | : | CT-1000 |
| Maximum Metric Conductor Size (mm²) | : | 2.5 |
| Overall Length (mm) | : | 15 |
| Color Code | : | Blue |
| Ferrule Type | : | Single Wire Standard |
| Base Material | : | Copper |
| Pin Length (mm) | : | 8 |
| Outer Diameter (mm) | : | 2.6 |
| Maximum Wire Insulation Diameter (mm) | : | 4 |
| Flammability Rating | : | UL94-HB |
| Maximum Operating Temperature (°F) | : | 221 |
| Packaging Type | : | Strip |
| CSA Temperature Rating (°C) | : | 105 |
| Wire Strip Length (In.) | : | 13/32 |
| Finish/Coating | : | Tin-Plated |
| Overall Length (In.) | : | 0.59 |
| Copper Conductor Size | : | 14 AWG |
