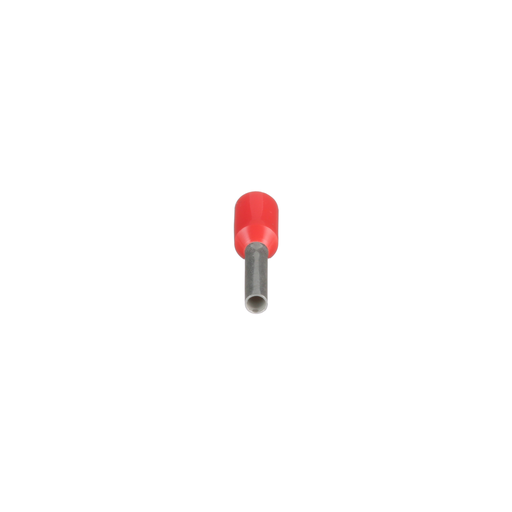

Pan-Term® FSD86-25-L Covered Single Wire Ferrules
MFG #FSD86-25-L
$2.09 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
Covered ferrules single wire red DIN end sleeve, 2 AWG, 25mm pin length.
HESCO Part Number
PANFSD8625L
UPC
074983762767
Manufacturer Part Number
FSD86-25-L
Manufacturer
Panduit
Pan-Term® FSD86-25-L Covered Single Wire Ferrules
MFG #FSD86-25-L
Product Description:
Covered ferrules single wire red DIN end sleeve, 2 AWG, 25mm pin length.
HESCO Part Number
PANFSD8625L
UPC
074983762767
Manufacturer Part Number
FSD86-25-L
Manufacturer
Panduit
$2.09 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- Standards Met: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
- No
Packaging Details
| UPC | : | 07498376276 |
| GTIN Package | : | 00074983762767 |
| Standard Package Volume Ft3 | : | 0.2604 |
| Standard Package Weight Pounds | : | 0.2450 |
| Std Package Height In | : | 1.4 |
| Std Package Height MM | : | 35.56 |
| Std Package Length In | : | 7.3 |
| Std Package Length MM | : | 185.42 |
| Std Package Width In | : | 5.2 |
| Std Package Width MM | : | 132.08 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 50 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983762767 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 50.0000 |
| Pallet Quantity | : | 75,000 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 367.5000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Germany |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| For Use With | : | CT-1005 |
| Pin Length (mm) | : | 25 |
| Wire Strip Length (In.) | : | 1-1/8 |
| Wire Strip Length (mm) | : | 28.6 |
| Base Material | : | Copper |
| Overall Length (In.) | : | 1.54 |
| Pin Length (In.) | : | 0.98 |
| Maximum Operating Temperature (°C) | : | 105 |
| Product Type | : | Covered Single Wire Ferrule |
| Cover Material | : | Polypropylene |
| CSA Temperature Rating (°C) | : | 105 |
| Maximum Operating Temperature (°F) | : | 221 |
| Ferrule Type | : | Single Wire Standard |
| Sub Brand | : | Pan-Term® |
| Packaging Type | : | Bag |
| Maximum Wire Insulation Diameter (mm) | : | 12.5 |
| Finish/Coating | : | Tin-Plated |
| Color Code | : | Red |
| UL Temperature Rating (°C) | : | 105 |
| Overall Length (mm) | : | 39 |
| Maximum Metric Conductor Size (mm²) | : | 35 |
| Flammability Rating | : | UL94-HB |
| Inside Diameter (mm) | : | 8.5 |
| Maximum Wire Insulation Diameter (In.) | : | 0.49 |
| Inside Diameter (In.) | : | 0.33 |
| Copper Conductor Size | : | 2 AWG |
- Standards Met: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
- No
Packaging Details
UPC : 07498376276 GTIN Package : 00074983762767 Standard Package Volume Ft3 : 0.2604 Standard Package Weight Pounds : 0.2450 Std Package Height In : 1.4 Std Package Height MM : 35.56 Std Package Length In : 7.3 Std Package Length MM : 185.42 Std Package Width In : 5.2 Std Package Width MM : 132.08 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 50 Standard Carton Volume Ft3 : 0.0000 Standard Carton Weight Pounds : 0.0000 Std Ctn Qty : 0 Min. Order UOM : Piece EAN : 00074983762767 REACH Status : N California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : N Lead Content Indicator : N Restricted Use of Hazardous Substances : N Hazardous Material Flag : N Min Order Qty : 50.0000 Pallet Quantity : 75,000 Pallet Volume : 0.000000 Pallet Weight : 367.5000 RoHS Compliant : Compliant Specifications
Country of Origin : Germany Any Reason Not to Sell : N Product Segment : IEI For Use With : CT-1005 Pin Length (mm) : 25 Wire Strip Length (In.) : 1-1/8 Wire Strip Length (mm) : 28.6 Base Material : Copper Overall Length (In.) : 1.54 Pin Length (In.) : 0.98 Maximum Operating Temperature (°C) : 105 Product Type : Covered Single Wire Ferrule Cover Material : Polypropylene CSA Temperature Rating (°C) : 105 Maximum Operating Temperature (°F) : 221 Ferrule Type : Single Wire Standard Sub Brand : Pan-Term® Packaging Type : Bag Maximum Wire Insulation Diameter (mm) : 12.5 Finish/Coating : Tin-Plated Color Code : Red UL Temperature Rating (°C) : 105 Overall Length (mm) : 39 Maximum Metric Conductor Size (mm²) : 35 Flammability Rating : UL94-HB Inside Diameter (mm) : 8.5 Maximum Wire Insulation Diameter (In.) : 0.49 Inside Diameter (In.) : 0.33 Copper Conductor Size : 2 AWG - Selection Guides
