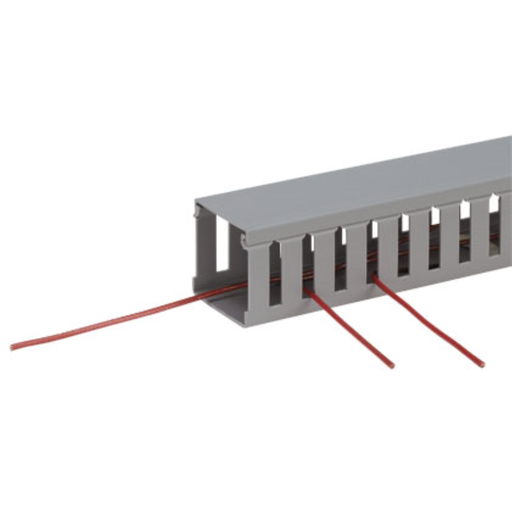

Panduct® G.5X4LG6 Base Wiring Duct
MFG #G.5X4LG6
$12.78 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
Product Description:
The G.5X4LG6 Panduct Lead-Free PVC Wide Slot Wiring Duct features a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 0.5" x 4.0" (12.7 mm x 101.6 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
HESCO Part Number
PANG5X4LG6
UPC
074983780464
Manufacturer Part Number
G.5X4LG6
Manufacturer
Panduit
Panduct® G.5X4LG6 Base Wiring Duct
MFG #G.5X4LG6
Product Description:
The G.5X4LG6 Panduct Lead-Free PVC Wide Slot Wiring Duct features a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 0.5" x 4.0" (12.7 mm x 101.6 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
HESCO Part Number
PANG5X4LG6
UPC
074983780464
Manufacturer Part Number
G.5X4LG6
Manufacturer
Panduit
$12.78 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
- N
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Cover Part Number | : | C.5LG6 |
| Overall Width (In.) | : | 0.69 |
| Application | : | Wide Slot Wiring Duct for use in Control Panel and Machine Builder applications |
| Overall Height (mm) | : | 104.1 |
| Overall Length (m) | : | 1.83 |
| Color | : | Light Gray |
| Wiring Duct Style | : | Wide Slot Wiring Duct |
| Sub Brand | : | Panduct® |
| Overall Width (mm) | : | 17.5 |
| Measurement System | : | Imperial |
| Product Type | : | Base Wiring Duct |
| Wiring Duct Type | : | G |
| Includes | : | Base Only |
| Mount Method | : | Mounting Holes |
| Overall Length (ft.) | : | 6 |
| Slot Width (mm) | : | 7.9 |
| Material | : | PVC |
| Flammability Rating | : | UL94V-0 |
| Slot Width (In.) | : | 0.31 |
| Overall Height (In.) | : | 4.1 |
| Material Properties | : | Lead-Free |
| Duct Dimensions (In.) | : | 0.69W x 4.1H |
Packaging Details | ||
| UPC | : | 07498378046 |
| GTIN Package | : | 00074983780464 |
| Standard Package Volume Ft3 | : | 0.1296 |
| Standard Package Weight Pounds | : | 2.5200 |
| Std Package Height In | : | 4 |
| Std Package Height MM | : | 101.6 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | .5 |
| Std Package Width MM | : | 12.7 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983780469 |
| Standard Carton Volume Ft3 | : | 1.2963 |
| Standard Carton Weight Pounds | : | 25.2000 |
| Std Carton Height In | : | 4.5 |
| Std Carton Height MM | : | 114.3 |
| Std Carton Length In | : | 73.2 |
| Std Carton Length MM | : | 1859.28 |
| Std Carton Width In | : | 6.8 |
| Std Carton Width MM | : | 172.72 |
| Std Ctn Qty | : | 60 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983780464 |
| REACH Status | : | N |
| California Pro65 Cancer | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 60.0000 |
| Pallet Quantity | : | 2,160 |
| Pallet Volume | : | 46.665000 |
| Pallet Weight | : | 907.2000 |
| RoHS Compliant | : | Compliant |
