Panduct® G1X4IB6 Base Wiring Duct
MFG #G1X4IB6
$11.99 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
Product Description:

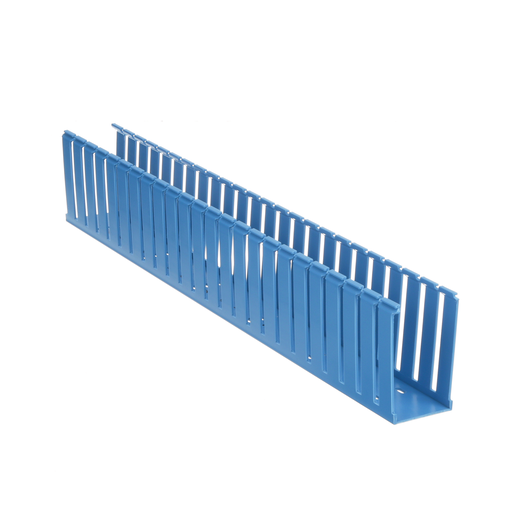

The G1X4IB6 Panduct™ Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 1.0" x 4.0" (25.4 mm x 101.6 mm) and 6' (1.8 m) long. Cover sold separately. Color Intrinsic Blue.
HESCO Part Number
PANG1X4IB6
UPC
074983017881
Manufacturer Part Number
G1X4IB6
Manufacturer
Panduit
Panduct® G1X4IB6 Base Wiring Duct
MFG #G1X4IB6
Product Description:
The G1X4IB6 Panduct™ Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 1.0" x 4.0" (25.4 mm x 101.6 mm) and 6' (1.8 m) long. Cover sold separately. Color Intrinsic Blue.
HESCO Part Number
PANG1X4IB6
UPC
074983017881
Manufacturer Part Number
G1X4IB6
Manufacturer
Panduit
$11.99 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
- No
Packaging Details
| UPC | : | 07498301788 |
| GTIN Package | : | 00074983017881 |
| Standard Package Volume Ft3 | : | 0.1919 |
| Standard Package Weight Pounds | : | 3.1002 |
| Std Package Height In | : | 4 |
| Std Package Height MM | : | 101.6 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 1 |
| Std Package Width MM | : | 25.4 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983017886 |
| Standard Carton Volume Ft3 | : | 1.9192 |
| Standard Carton Weight Pounds | : | 31.0020 |
| Std Carton Height In | : | 4.6 |
| Std Carton Height MM | : | 116.84 |
| Std Carton Length In | : | 72.9 |
| Std Carton Length MM | : | 1851.66 |
| Std Carton Width In | : | 9.5 |
| Std Carton Width MM | : | 241.3 |
| Std Ctn Qty | : | 60 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983017881 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 60.0000 |
| Pallet Quantity | : | 1,680 |
| Pallet Volume | : | 53.737276 |
| Pallet Weight | : | 868.0560 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Slot Width (mm) | : | 7.9 |
| Mount Method | : | Mounting Holes |
| Overall Height (mm) | : | 104.1 |
| Product Type | : | Base Wiring Duct |
| Wiring Duct Style | : | Wide Slot Wiring Duct |
| Color | : | Intrinsic Blue |
| Sub Brand | : | Panduct® |
| Includes | : | Base Only |
| Slot Width (In.) | : | 0.31 |
| Overall Length (ft.) | : | 6 |
| Overall Length (m) | : | 1.83 |
| Cover Part Number | : | C1IB6 |
| Overall Width (mm) | : | 32 |
| Overall Height (In.) | : | 4.1 |
| Overall Width (In.) | : | 1.25 |
| Flammability Rating | : | UL94 V-0 |
| Measurement System | : | Imperial |
| Material | : | PVC |
| Wiring Duct Type | : | G |
| Application | : | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Material Properties | : | Lead-Free |
| Duct Dimensions (In.) | : | 1.25W x 4.1H |
