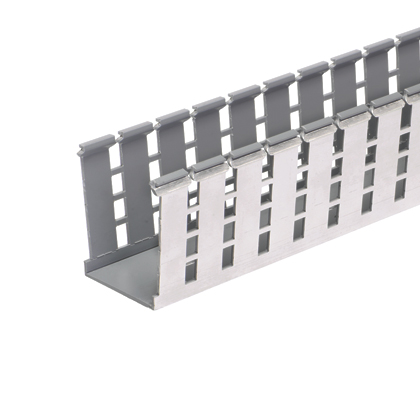

PanelMax™ G2X3LG6EMI Base Wiring Duct
MFG #G2X3LG6EMI
$27.62 / FT
(Must order in increments of 24/FT)
(Must order in increments of 24/FT)
Product Description:
The G2X3LG6EMI PanelMax™ Shielded Lead-Free PVC/Aluminum Wide Slot Wiring Duct feature a wide slot/finger design that provides separation and noise emission and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 2.0" x 3.0" (50.8 mm x 76.2 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
HESCO Part Number
PANG2X3LG6EMI
UPC
074983392575
Manufacturer Part Number
G2X3LG6EMI
Manufacturer
Panduit
PanelMax™ G2X3LG6EMI Base Wiring Duct
MFG #G2X3LG6EMI
Product Description:
The G2X3LG6EMI PanelMax™ Shielded Lead-Free PVC/Aluminum Wide Slot Wiring Duct feature a wide slot/finger design that provides separation and noise emission and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 2.0" x 3.0" (50.8 mm x 76.2 mm) and 6' (1.8 m) long. Cover sold separately. Color Light Gray.
HESCO Part Number
PANG2X3LG6EMI
UPC
074983392575
Manufacturer Part Number
G2X3LG6EMI
Manufacturer
Panduit
$27.62 / FT
(Must order in increments of 24/FT)
(Must order in increments of 24/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
Packaging Details
| UPC | : | 07498339257 |
| GTIN Package | : | 30074983392576 |
| Standard Package Volume Ft3 | : | 0.3984 |
| Standard Package Weight Pounds | : | 6.5040 |
| Std Package Height In | : | 3.3 |
| Std Package Height MM | : | 83.82 |
| Std Package Length In | : | 72.7 |
| Std Package Length MM | : | 1846.58 |
| Std Package Width In | : | 4.7 |
| Std Package Width MM | : | 119.38 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 12 |
| GTIN Carton | : | 50074983392570 |
| Standard Carton Volume Ft3 | : | 0.7968 |
| Standard Carton Weight Pounds | : | 13.0080 |
| Std Carton Height In | : | 3.3 |
| Std Carton Height MM | : | 83.82 |
| Std Carton Length In | : | 73.2 |
| Std Carton Length MM | : | 1859.28 |
| Std Carton Width In | : | 5.7 |
| Std Carton Width MM | : | 144.78 |
| Std Ctn Qty | : | 24 |
| Min. Order UOM | : | Foot |
| EAN | : | 30074983392576 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 24.0000 |
| Pallet Quantity | : | 576 |
| Pallet Volume | : | 19.123500 |
| Pallet Weight | : | 312.1920 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Flammability Rating | : | UL94 V-0 |
| Material | : | PVC/Aluminum |
| Product Type | : | Base Wiring Duct |
| Mount Method | : | Mounting Holes |
| Includes | : | Base Only |
| Overall Width (mm) | : | 57.2 |
| Overall Length (ft.) | : | 6 |
| Sub Brand | : | PanelMax™ |
| Cover Part Number | : | C2LG6 |
| Color | : | Light Gray |
| Slot Width (In.) | : | 0.31 |
| Wiring Duct Style | : | Shielded Wiring Duct |
| Application | : | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications. Shielded Wiring Duct provides EMI/RFI noise reduction. |
| Overall Width (In.) | : | 2.25 |
| Overall Height (mm) | : | 79.2 |
| Wiring Duct Type | : | G |
| Slot Width (mm) | : | 7.9 |
| Overall Height (In.) | : | 3.12 |
| Measurement System | : | Imperial |
| Overall Length (m) | : | 1.83 |
| Material Properties | : | Lead-Free |
