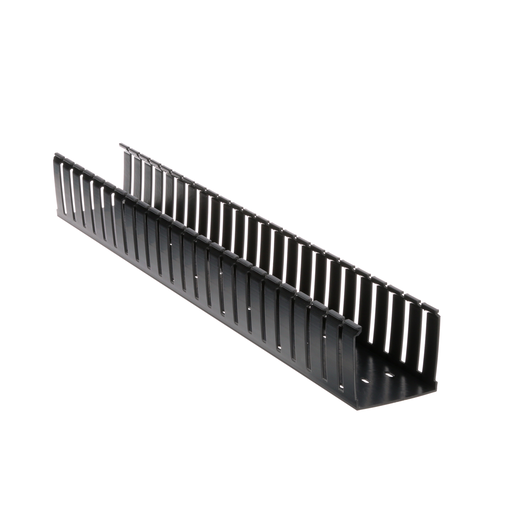

Panduct® G3X3BL6 Base Wiring Duct
MFG #G3X3BL6
$11.36 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
Product Description:
The G3X3BL6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 3.0" x 3.0" (76.2 mm x 76.2 mm) and 6' (1.8 m) long. Cover sold separately. Color Black.
HESCO Part Number
PANG3X3BL6
UPC
074983604661
Manufacturer Part Number
G3X3BL6
Manufacturer
Panduit
Panduct® G3X3BL6 Base Wiring Duct
MFG #G3X3BL6
Product Description:
The G3X3BL6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 3.0" x 3.0" (76.2 mm x 76.2 mm) and 6' (1.8 m) long. Cover sold separately. Color Black.
HESCO Part Number
PANG3X3BL6
UPC
074983604661
Manufacturer Part Number
G3X3BL6
Manufacturer
Panduit
$11.36 / FT
(Must order in increments of 60/FT)
(Must order in increments of 60/FT)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Width (In.) | : | 3.25 |
| Overall Height (In.) | : | 3.12 |
| Color | : | Black |
| Wiring Duct Type | : | G |
| Application | : | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Mount Method | : | Mounting Holes |
| Product Type | : | Base Wiring Duct |
| Flammability Rating | : | UL94V-0 |
| Slot Width (mm) | : | 7.9 |
| Overall Height (mm) | : | 79.2 |
| Overall Length (m) | : | 1.83 |
| Overall Length (ft.) | : | 6 |
| Wiring Duct Style | : | Wide Slot Wiring Duct |
| Includes | : | Base Only |
| Measurement System | : | Metric |
| Sub Brand | : | Panduct® |
| Slot Width (In.) | : | 0.31 |
| Cover Part Number | : | C3BL6 |
| Overall Width (mm) | : | 82.6 |
| Material | : | PVC |
| Material Properties | : | Lead-Free |
| Duct Dimensions (In.) | : | 3.25W x 3.12H |
Packaging Details | ||
| UPC | : | 07498360466 |
| GTIN Package | : | 00074983604661 |
| Standard Package Volume Ft3 | : | 0.2870 |
| Standard Package Weight Pounds | : | 2.6250 |
| Std Package Height In | : | 3 |
| Std Package Height MM | : | 76.2 |
| Std Package Length In | : | 72 |
| Std Package Length MM | : | 1828.8 |
| Std Package Width In | : | 3 |
| Std Package Width MM | : | 76.2 |
| Std. Pkg. UOM | : | Foot |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 6 |
| GTIN Carton | : | 50074983604666 |
| Standard Carton Volume Ft3 | : | 2.8704 |
| Standard Carton Weight Pounds | : | 26.2500 |
| Std Carton Height In | : | 3.6 |
| Std Carton Height MM | : | 91.44 |
| Std Carton Length In | : | 72.9 |
| Std Carton Length MM | : | 1851.66 |
| Std Carton Width In | : | 18.9 |
| Std Carton Width MM | : | 480.06 |
| Std Ctn Qty | : | 60 |
| Min. Order UOM | : | Foot |
| EAN | : | 00074983604661 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 60.0000 |
| Pallet Quantity | : | 1,080 |
| Pallet Volume | : | 51.667875 |
| Pallet Weight | : | 472.5000 |
| RoHS Compliant | : | Compliant |
